TP-Link 1000Base-BX WDM Bi-Directional Industrial SFP Module (ISM321A-20)

TP-LINK Giveaway | Chance to Win TP-Link TL-WR3602BE Wi-Fi 7 Travel Router

Industrial 1.25 Gbps SFP with WDM bi‑directional (1550 nm Tx / 1310 nm Rx) over a single 9/125 µm SM fiber up to 20 km. LC simplex, hot‑pluggable, DDM, SFP‑MSA compliant, operates –40 °C to 85 °C, FCC/CE certified.

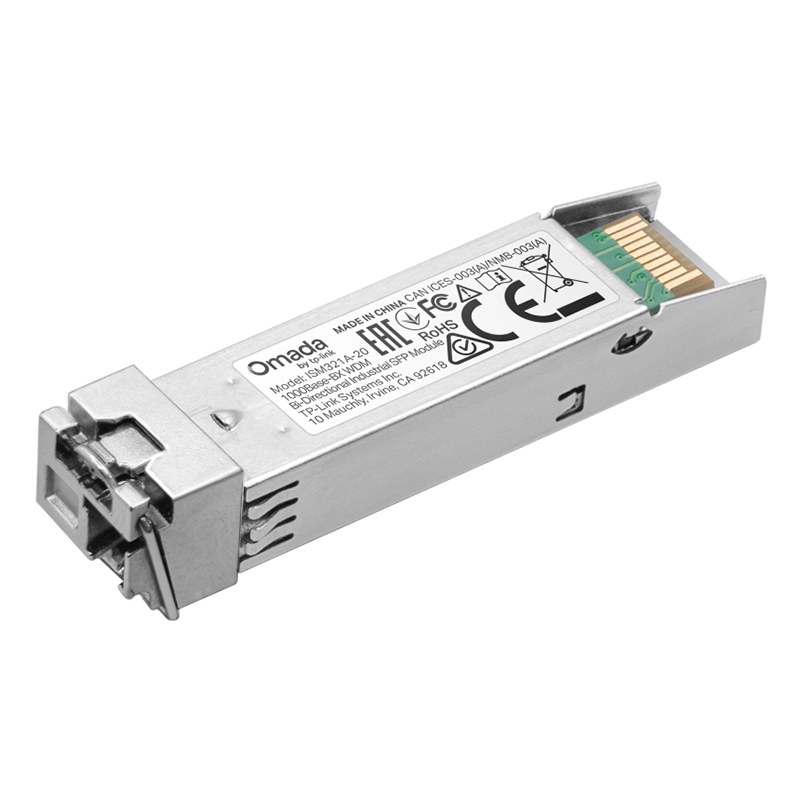

TP-Link 1000Base-BX WDM Bi-Directional Industrial SFP Module (ISM321A-20)
  • Networking-Accessories-TP-Link-1000Base-BX-WDM-Bi-Directional-Industrial-SFP-Module-ISM321A-20-2
$39.00
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

    • DELIVERY
    • Post Out Of Stock
    QLD Pickup & Post
    • Post Out Of Stock
    • Mansfield Robot Super StoreIcon 3 Out Of Stock
    • Milton Out Of Stock
    • Eight Mile Plains Out Of Stock
    • Chermside Out Of Stock
    • Maroochydore Out Of Stock
    • Southport Out Of Stock
    • Hillcrest Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    • Annandale Out Of Stock
    • Parramatta New Out Of Stock
    • Mosman New Out Of Stock
    • Hurstville New Out Of Stock
    • Carlingford New Out Of Stock
    • Crows Nest New Out Of Stock
    • Goulburn New Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Mitcham Out Of Stock
    • Essendon Out Of Stock
    • Dandenong South Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    • Holden Hill Out Of Stock
    • Adelaide CBD Icon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    • Osborne Park Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 31hrs and 25mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

TP-LINK Giveaway | Chance to Win TP-Link TL-WR3602BE Wi-Fi 7 Travel Router TP-LINK Giveaway | Chance to Win TP-Link TL-WR3602BE Wi-Fi 7 Travel Router

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

TP-Link 1000Base-BX WDM Bi-Directional Industrial SFP Module
ISM321A-20 is an industrial WDM SFP Module introduced for extending transfer distance. Attached to our industrial switches, ISM321A-20 can extend the distance to 20km with one single fiber. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

  • Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving

  • Single mode SFP LC Transceiver

  • Hot-Pluggable with maximum flexibility

  • Supports Digital Diagnostic Monitoring (DDM)

  • Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)

  • Industrial Product Operating Temperature Range: -40-85°C




SPECIFICATIONS:

TRANSCEIVER


Standards and Protocols

IEEE 802.3z,TCP/IP

Wave Length

Tx: 1550 nm

Rx: 1310 nm

Power Supply

3.3V

Fiber Type

9/125 µm

Single-mode

Max. Cable Length

20 km

Data Rate

1.25 Gbps

Connector

LC Simplex

Regulatory Compliance

FCC, CE

Environment

• Operating Temperature: -40˚C~ 85˚C (-40˚C~ 185˚F)

• Storage Temperature: -40℃~85℃ (-40ËšC~ 185ËšF)

• Operating Humidity: 5%~85% non-condensing

• Storage Humidity: 5%~85% non-condensing

HARDWARE FEATURES


DDM

Yes

SFP-MSA

Yes

Hot Swappable

Yes

Dimensions ( W x D x H )

2.2*0.5* 0.4 in (56.4*13.4*11.0 mm)

OTHERS


Package Content

• ISM321LA-20

• Installation Guide

Note

Use ISM321A-20 & ISM321B-20 together for fast and reliable connectivity.




  • Product Name:
    TP-Link 1000Base-BX WDM Bi-Directional Industrial SFP Module (ISM321A-20)
  • Model Number:
    ISM321A-20
  • Brand:
    TP-Link TP-Link
  • Warranty Period:
    3 Year
