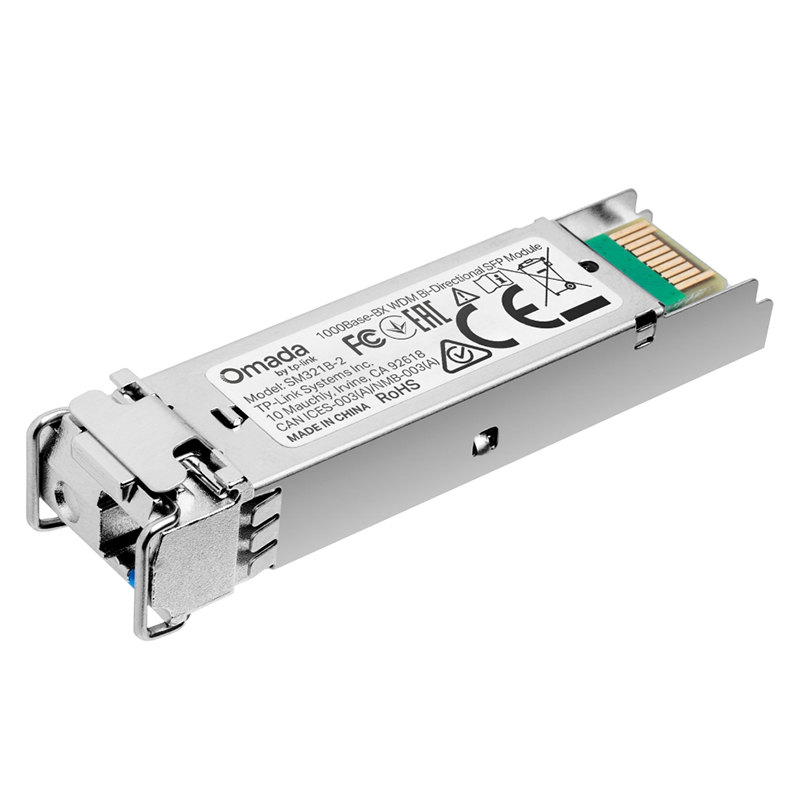

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (SM321B-2)

TP-LINK Giveaway | Chance to Win TP-Link TL-WR3602BE Wi-Fi 7 Travel Router

TP‑Link SM321B‑2 1.25 Gbps bi‑directional SFP module with LC simplex (1310 nm Tx / 1550 nm Rx), up to 2 km SM‑9/125 µm fiber, DDM, hot‑swappable, SFP‑MSA, 3.3 V, FCC/CE certified.

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (SM321B-2)
  • Networking-Accessories-TP-Link-1000Base-BX-WDM-Bi-Directional-SFP-Module-SM321B-2-2
$19.00
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

    • DELIVERY
    • Post Out Of Stock
    QLD Pickup & Post
    • Post Out Of Stock
    • Mansfield Robot Super StoreIcon 3 Out Of Stock
    • Milton Out Of Stock
    • Eight Mile Plains Out Of Stock
    • Chermside Out Of Stock
    • Maroochydore Out Of Stock
    • Southport Out Of Stock
    • Hillcrest Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    • Annandale Out Of Stock
    • Parramatta New Out Of Stock
    • Mosman New Out Of Stock
    • Hurstville New Out Of Stock
    • Carlingford New Out Of Stock
    • Crows Nest New Out Of Stock
    • Goulburn New Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Mitcham Out Of Stock
    • Essendon Out Of Stock
    • Dandenong South Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    • Holden Hill Out Of Stock
    • Adelaide CBD Icon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    • Osborne Park Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 30hrs and 38mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

TP-LINK Giveaway | Chance to Win TP-Link TL-WR3602BE Wi-Fi 7 Travel Router TP-LINK Giveaway | Chance to Win TP-Link TL-WR3602BE Wi-Fi 7 Travel Router

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

TP-Link 1000Base-BX WDM Bi-Directional SFP Module
SM321B-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, SM321B-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 μm SMF (Single-Mode Fiber).

Also, SM321B-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.


SM321B-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.





SPECIFICATIONS:

Standards and Protocols

IEEE 802.3z, TCP/IP

Wave Length

• Tx: 1310 nm

• Rx: 1550 nm

Dimensions ( W x D x H )

2.2*0.6*0.5 in (55.4*14.6*12.9 mm)

Power Supply

3.3V

Safety & Emission

FCC, CE

Cable

Single-Mode Fiber

Fiber Type

9/125 μm Single-Mode

Max. Cable Length

2 KM

Data Rate

1.25 Gbps

Port Type

LC Simplex

Hardware Features

• DDM

• SFP-MSA

• Hot Swappable

Package Content

• SM321B-2

• Installation Guide

Environment

• Operating Temperature: 0–70 °C (32–158 °F)

• Storage Temperature: -40–85 °C ( -40–185 °F)

• Operating Humidity: 10–90% RH, Non-Condensing

• Storage Humidity: 5–90% RH, Non-Condensing




  • Product Name:
    TP-Link 1000Base-BX WDM Bi-Directional SFP Module (SM321B-2)
  • Model Number:
    SM321B-2
  • Brand:
    TP-Link TP-Link
  • Warranty Period:
    3 Year
