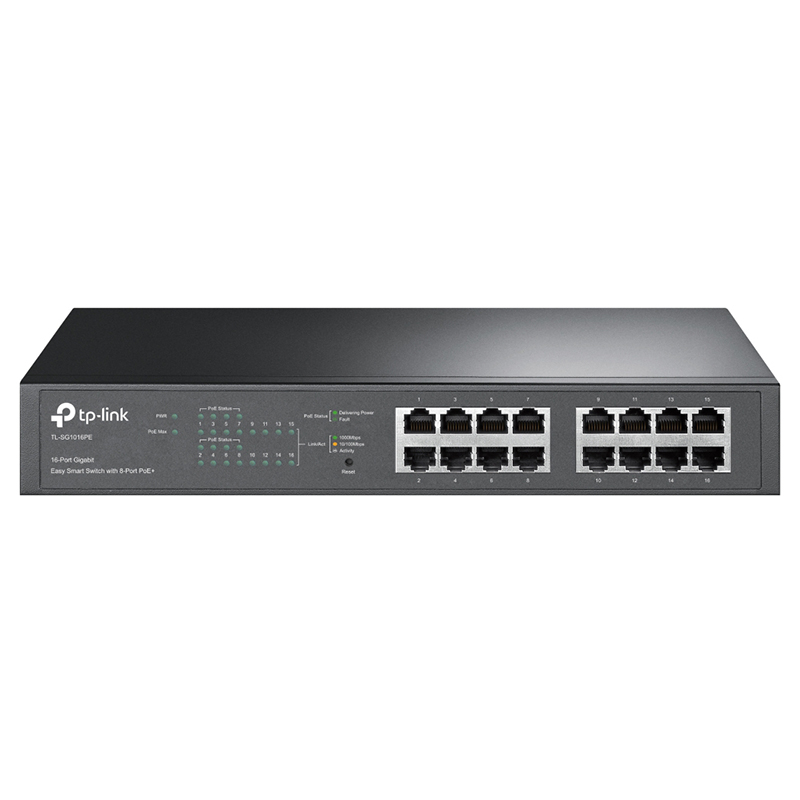

TP-Link 16-Port Gigabit Easy Smart Desktop/Rackmount Switch with 8-Port PoE+ - UN/6.40 (SG1016PE)

16‑port Gigabit PoE switch with 8 PoE‑enabled RJ45 ports (150 W budget), fanless design, rack‑mount/desktop, VLAN (32), QoS, IGMP snooping, link aggregation, web GUI, IEEE 802.3af/at compliance.

TP-Link 16-Port Gigabit Easy Smart Desktop/Rackmount Switch with 8-Port PoE+ - UN/6.40 (SG1016PE)
  • Switches-TP-Link-16-Port-Gigabit-Easy-Smart-Desktop-Rackmount-Switch-with-8-Port-PoE-UN-6-40-SG1016PE-3
  • Switches-TP-Link-16-Port-Gigabit-Easy-Smart-Desktop-Rackmount-Switch-with-8-Port-PoE-UN-6-40-SG1016PE-1
$189.00
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Next Day Dispatch   Question Mark

Order within 17hrs and 45mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

SPECIFICATIONS:

HARDWARE FEATURES


Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

16× 10/100/1000 Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

PoE Ports (RJ45)

Standard: 802.3 af/at compliant

PoE Ports: Port 1 to Port 8

PoE Power Budget: 150 W

Dimensions( W x D x H )

11.6×7.1×1.7 in (294×180×44 mm)

Mounting

Rack Mountable/ Desktop

Max. Power Consumption

13.07 W (220 V/50 Hz with no PD connected)

173.88 W (220 V/50 Hz with 150 W PD connected)

Max. Heat Dissipation

44.438 BTU/h (220 V/50 Hz with no PD connected)

591.192 BTU/h (220 V/50 Hz with 150 W PD connected)

PERFORMANCE


Switching Capacity

32 Gbps

Packet Forwarding Rate

23.8 Mbps

MAC Address Table

8K

Packet Buffer Memory

4.1 Mbit

Jumbo Frame

10 KB

SOFTWARE FEATURES


Quality of Service

Support Port-Based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2   Features

IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

PoE

PoE Management

Extend Mode

PoE Auto Recovery

Management Features

Web-based GUI

Easy Smart Configuration Utility

Transmission Method

Store-And-Forward

OTHERS


Certification

FCC, CE, RoHS

Package Content

TL-SG1016PE

Power Cord

Installation Guide

Rackmount Kit

Rubber Feet

System Requirements

Microsoft® Windows® for running Utility

Environment

Operating Temperature: 0–45 ℃ (32–113 ℉)

Storage Temperature: -40–70 ℃ (-40–158 ℉)

Operating Humidity: 10–90% non-condensing

Storage Humidity: 5–90% non-condensing




  • Product Name:
    TP-Link 16-Port Gigabit Easy Smart Desktop/Rackmount Switch with 8-Port PoE+ - UN/6.40 (SG1016PE)
  • Model Number:
    SG1016PE
  • Brand:
  • Warranty Period:
    5 Year
