Home  > PC Parts  > Networking  > Switches > TP-Link 18 Port Gigabit Rackmount Unmanaged Switch with 16 PoE+ (SG1218MP)

TP-Link 18 Port Gigabit Rackmount Unmanaged Switch with 16 PoE+ (SG1218MP)

TP-Link 18 Port Gigabit Rackmount Unmanaged Switch with 16 PoE+ (SG1218MP)
  • Switches-TP-Link-18-Port-Gigabit-Rackmount-Unmanaged-Switch-with-16-PoE-SG1218MP-5
  • Switches-TP-Link-18-Port-Gigabit-Rackmount-Unmanaged-Switch-with-16-PoE-SG1218MP-2
  • Switches-TP-Link-18-Port-Gigabit-Rackmount-Unmanaged-Switch-with-16-PoE-SG1218MP-3
$278.0 Question Mark
Was: $329.0  WAS Tips    Save $51.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Same Day Dispatch   Question Mark

Order within 5hrs and 31mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    TP-Link 18 Port Gigabit Rackmount Unmanaged Switch with 16 PoE+ (SG1218MP)
  • Model Number:
    TL-SG1218MP
  • Brand:
  • Manufacturer Warranty:
    5 Year

Description

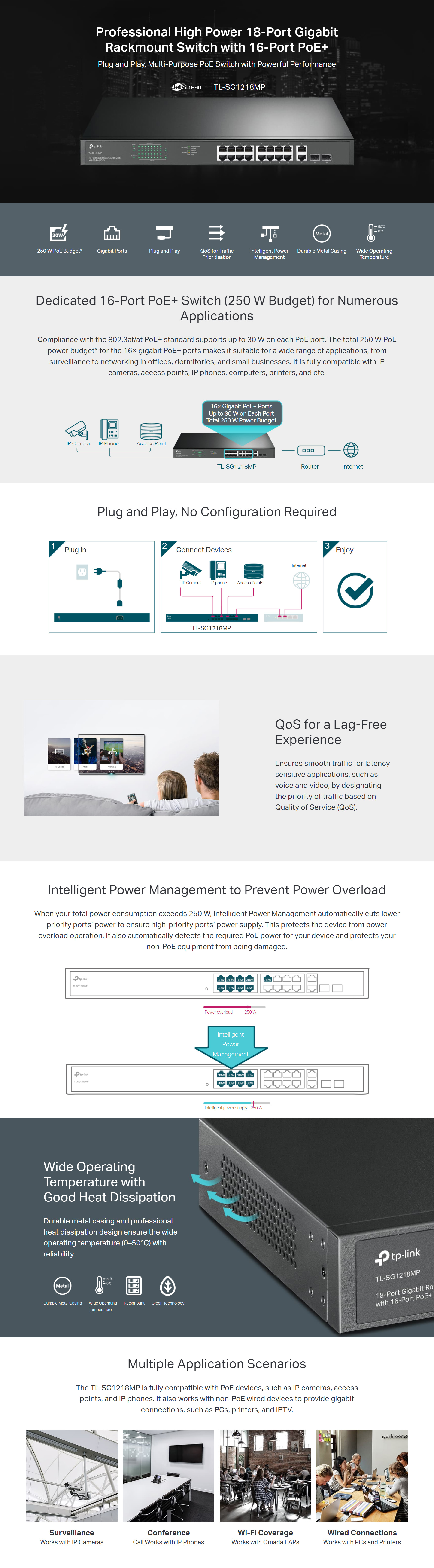

Switches-TP-Link-18-Port-Gigabit-Rackmount-Unmanaged-Switch-with-16-PoE-SG1218MP-1





SPECIFICATIONS:

HARDWARE FEATURES


Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface

16× PoE+ gigabit RJ45 ports

2× gigabit non-PoE RJ45 ports

2× combo gigabit SFP slots

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m

1000BASE-X MMF, SMF

Fan Quantity

2

Physical Security Lock

Yes

Power Supply

100–240 VAC, 50/60 Hz

PoE+ Ports(RJ45)

Standard: 802.3at/802.3af compliant

PoE Ports: Ports 1–16

PoE Power Budget: 250 W

Dimensions ( W x D x H )

17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)

Mounting

Rack Mountable

Max Power Consumption

21.4 W (220/50 Hz. no PD connected)

286.64 W (220/50 Hz. with 250 W PD connected)

Max Heat Dissipation

72.97 BTU/h (no PD connected)

977.44 BTU/h (with 250 W PD connected)

PERFORMANCE


Switching Capacity

36 Gbps

Packet Forwarding Rate

26.78 Mbps

MAC Address Table

8K

Packet Buffer Memory

4.1 Mbit

Advanced Functions

Compatible With IEEE 802.3af/at Compliant PDs

802.1p/DHCP QoS

Mac Address Auto-Learning And Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Jumbo Frame

10 KB

OTHERS


Certification

CE, FCC, RoHS

Package Contents

TL-SG1218MP

Installation Guide

Power Cord

Rackmount Kit

Rubber Feet

Environment

Operating Temperature: 0–50 °C (32–122 °F)

Storage Temperature: -40–70 °C (-40–158 °F)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing

Notes

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
