Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at,   IEEE 802.3z, IEEE 802.1p

Interface

• 16× PoE+ gigabit RJ45 ports

• 2× gigabit non-PoE RJ45 ports

• 2× combo gigabit SFP slots

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-X MMF, SMF

Fan Quantity

2

Physical Security Lock

Yes

Power Supply

100–240 VAC, 50/60 Hz

PoE Ports (RJ45)

• Standard: 802.3at/802.3af compliant

• PoE Ports: Ports 1–16

• PoE Power Budget: 250 W

Dimensions ( W x D x H )

17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)

Mounting

Rack Mountable

Max. Power Consumption

• 19 W (220/50 Hz. no PD connected)

• 293.34 W (220/50 Hz. with 250 W PD connected)

Max. Heat Dissipation

• 64.79 BTU/h (no PD connected)

• 1000.29 BTU/h (with 250 W PD connected)

PERFORMANCE

Packet Buffer Memory

4.1 Mbit

Advanced Features

• Compatible With IEEE 802.3af/at Compliant PDs

• 802.1p/DSCP QoS

• Mac Address Auto-Learning And Auto-Aging

• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex   Mode

• Extend Mode (Ports 1–4, Up to 250 m PoE power supply and data transmission)

• Priority Mode (Ports 1–4)

• Isolation Mode (Ports 1-8/9-16)

• PoE Auto Recovery (Ports 1-16)

Jumbo Frame

10 KB

Switching Capacity

36 Gbps

Packet Forwarding Rate

26.78 Mbps

MAC Address Table

8K

OTHERS

Certification

CE, FCC, RoHS

Package Content

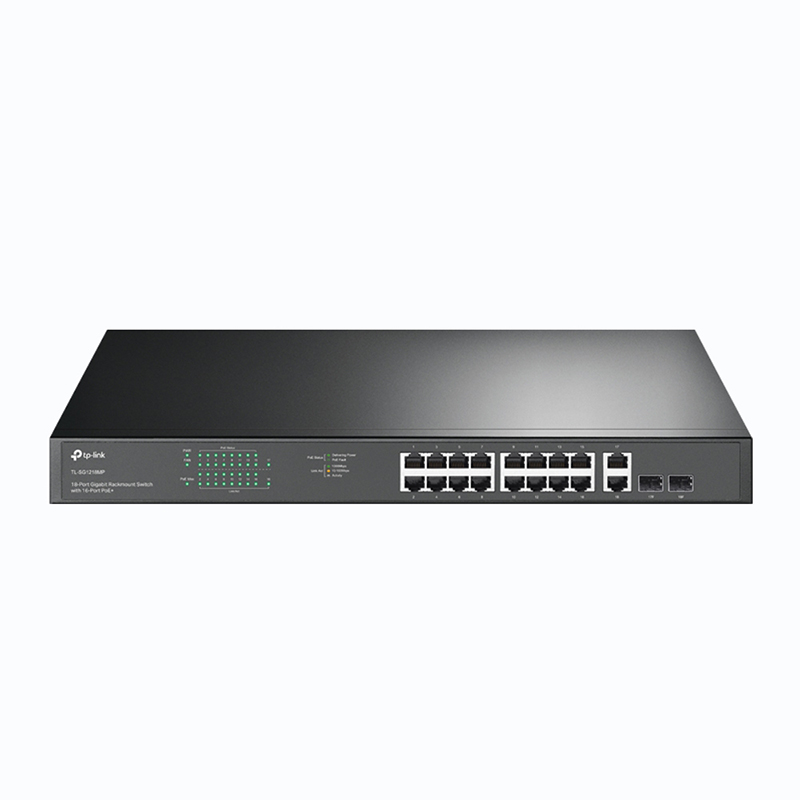

• TL-SG1218MP

• Installation Guide

• Power Cord

• Rackmount Kit

• Rubber Feet

Environment

• Operating Temperature: 0–50 °C (32–122 °F)

• Storage Temperature: -40–70 °C (-40–158 °F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
