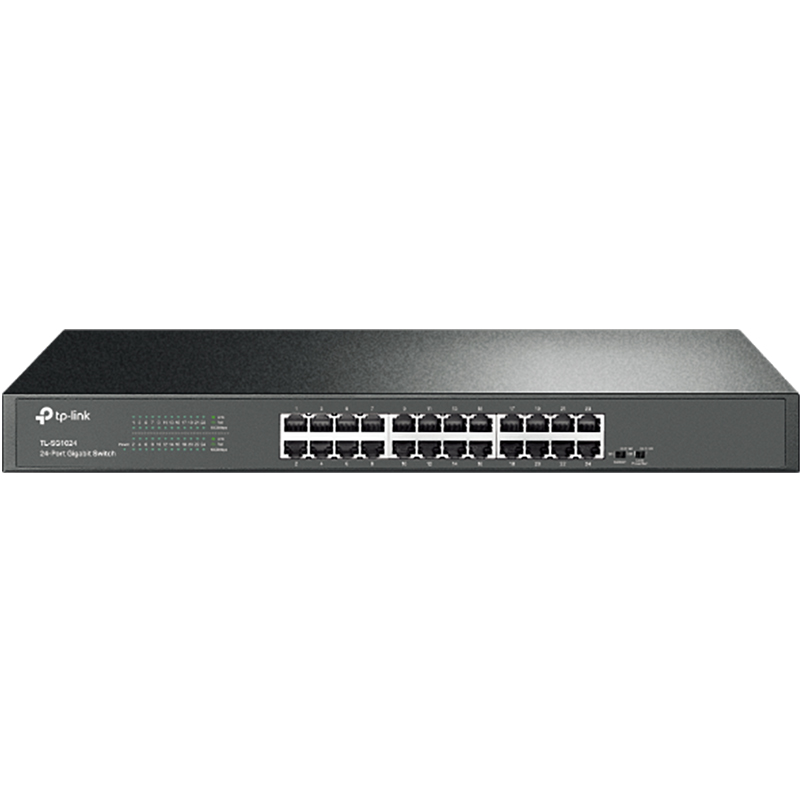

TP-Link 24 Port Gigabit 10/100/1000 Switch RackMount - UN/16.40 (TL-SG1024 UN/16.40)

24‑port 10/100/1000 Mbps RJ45 rack‑mount switch, fanless, 48 Gbps capacity, 35.7 Mpps, 8K MAC table, Isolation Mode (ports 1‑22), Loop Prevention (1‑24), 10 KB jumbo frames, QoS 802.1p/DSCP, green tech, 13.6 W.

TP-Link 24 Port Gigabit 10/100/1000 Switch RackMount - UN/16.40 (TL-SG1024 UN/16.40)
  • Switches-TP-Link-24-Port-Gigabit-10-100-1000-Switch-RackMount-UN-16-40-TL-SG1024-UN-16-40-2
$155.00
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Next Day Dispatch   Question Mark

Order within 15hrs and 51mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

SPECIFICATIONS:

HARDWARE FEATURES


Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface

24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

Power Supply

100-240VAC, 50/60Hz

Dimensions ( W x D x H )

17.3 × 5.5 × 1.7 in (440 × 140 × 44 mm)

Mounting

Rack-Mountable

Max. Power Consumption

13.62W

Max. Heat Dissipation

46.44BTU/h

PERFORMANCE


Switching Capacity

48Gbps

Packet Forwarding Rate

35.7Mpps

MAC Address Table

8K

Advanced Features

• Isolation Mode: Ports 1-22

• Loop Prevention: Ports 1-24

Jumbo Frame

10KB

QoS

802.1p/DSCP   QoS*

*Only for V11 and later version

Green Technology

Yes

Transmission Method

Store-and-Forward

OTHERS


Certification

FCC, CE, RoHS

Package Content

24-Port Gigabit Rackmount Switch

Power Cord

Installation Guide

Rackmount Kits

Rubber Feet

Environment

Operating Temperature: 0~40 (32~104);

Storage Temperature: -40~70 (-40~158);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing




  • Product Name:
    TP-Link 24 Port Gigabit 10/100/1000 Switch RackMount - UN/16.40 (TL-SG1024 UN/16.40)
  • Model Number:
    TL-SG1024 UN/16.40
  • Brand:
  • Warranty Period:
    5 Year
