Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

24 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

No

Power Supply

100-240VAC, 50/60Hz

Dimensions ( W x D x H )

11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)

Mounting

Rack Mountable

Max. Power Consumption

15.56W (220V/50Hz)

Max. Heat Dissipation

50.06 BTU/h

PERFORMANCE

Switching Capacity

48Gbps

Packet Forwarding Rate

35.7Mpps

MAC Address Table

8K

Packet Buffer Memory

4.1Mbit

Jumbo Frame

10KB

SOFTWARE FEATURES

Quality of Service

Support Port-based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2 Features

IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

Transmission Method

Store-And-Forward

OTHERS

Certification

FCC, CE, RoHS

Package Content

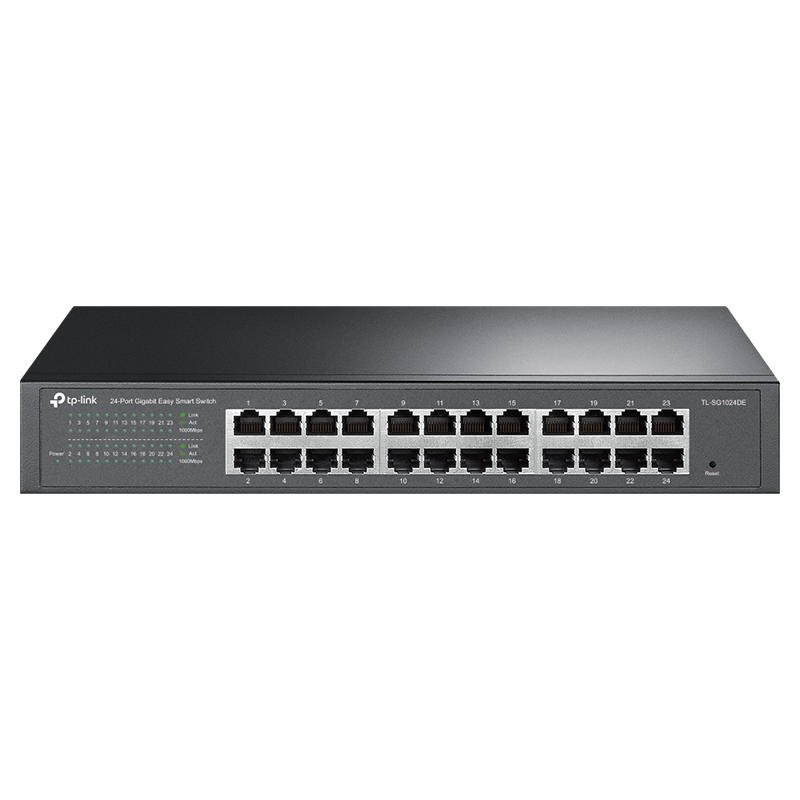

TL-SG1024DE, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet

System Requirements

Microsoft® Windows® for running Utility

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Note

DSCP QoS is for V2 and later version.
