Network Type

4G:

FDD-LTE:B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/800/700MHz)

TDD-LTE: B38/B40/B41 (2600/2300/2500MHz)

3G:

DC-HSPA+/HSPA/UMTS: B1/B5/B8(2100/850/900MHz)

Speed  Download Speed: 300Mbps

Upload Speed: 50Mbps

HARDWARE FEATURES

Interface

1 USB-C port for power supply

1 Nano SIM card slot

1 Micro SD card slot

Button

Power On/Off Button, Reset Button

Power Supply

2100 mAh Battery

External Power Supply

5V/1A

Weight

About 121g (including the battery)

Dimensions ( W x D x H )

4.5 × 2.5 × 0.70 in (114 × 64 × 17.7mm)

Antenna

Internal Antenna

Micro SD Card Reader

Up to 2TB

Screen Display

1.44 inch TFT

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency

2.4 GHz & 5 GHz

Signal Rate

Selectable dual band, 300 Mbps at 2.4 GHz or 867 Mbps at 5 GHz

Wireless Security

Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast

DHCP

Server, Client, DHCP Client List

OTHERS

Network Services Enabled by Default

Web   Server

Manage   and configure device through web or app

• Port: 80/443   Protocol: HTTP/HTTPS

DNS

DNS

• Port: 53; Protocol: UDP

DHCP/DHCPv6

IP address assignment

• Port: 67/547; Protocol: UDP

Certification

CE, RoHS

Package Content

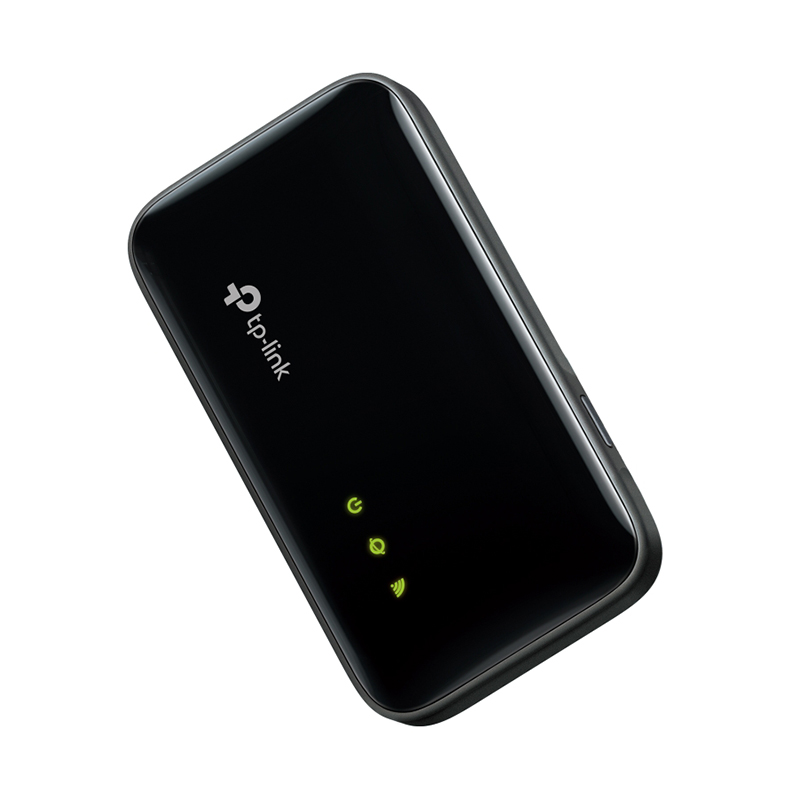

300 Mbps LTE-Advanced Mobile Wi-Fi M7400

USB-C Cable

2100mAh Battery

Quick Installation Guide

System Requirements

Windows 11/10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone

Environment

Operating Temperature: 0℃~35℃ (32℉ ~95℉)

Storage Temperature: -20℃~60℃ (4℉ ~140℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
