Interface

• 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)

• AUTO Negotiation

• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

External Power Supply

External Power Adapter (Output: 53.5 V DC / 0.81 A)

Packet Forwarding Rate

0.744 Mpps

PoE Ports (RJ45)

• Standard: 802.3 af compliant

• PoE Ports: Ports 1–4

• Power Supply: 41 W

Mac Address Table

2K

Jumbo Frame

2 KB

Switching Capacity

1 Gbps

Dimensions ( W x D x H )

3.9×3.9×1.0 in (100×98×25 mm)

Max. Power Consumption

• 1.9 W (220 V / 50 Hz, no PD connected)

• 47 W (220 V / 50 Hz, with 41 W PD connected)

Max. Heat Dissipation

• 6.48 BTU/h(no PD connected)

• 160.27 BTU/h(with 41 W PD connected)

SOFTWARE FEATURES

Advanced Features

• Compatible With IEEE 802.3af/at Compliant PDs

• Extend Mode Button (Ports 1–4)

• Priority Mode Button (Ports 1–2)

• Mac Address Auto-Learning And Auto-Aging

• IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex   Mode

Transmission Method

Store-And-Forward

OTHERS

Certification

FCC, CE, RoHS

Package Content

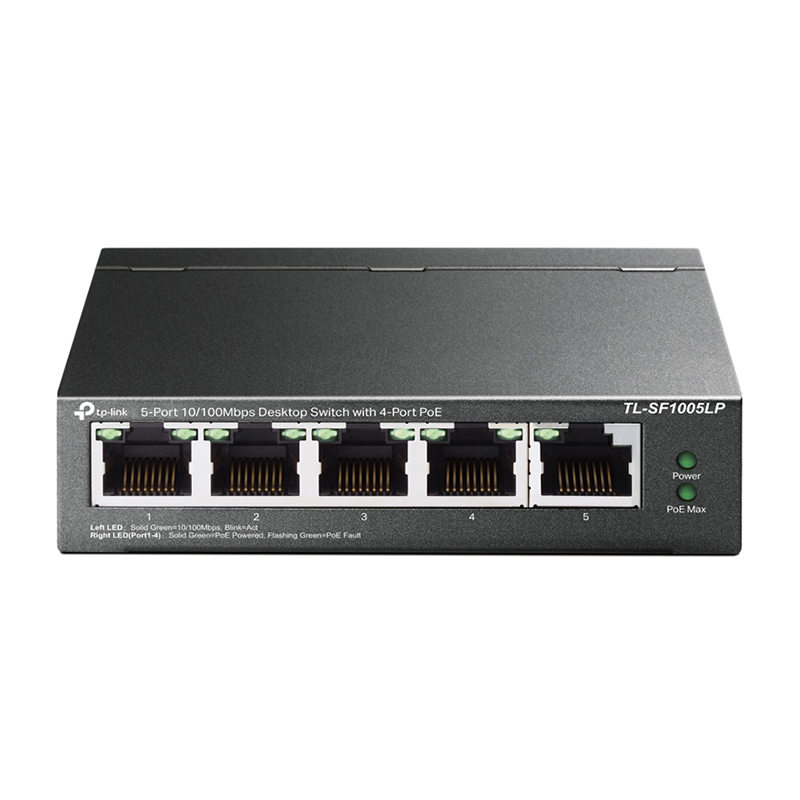

• TL-SF1005LP

• Power Adapter

• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Notes

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual   transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
