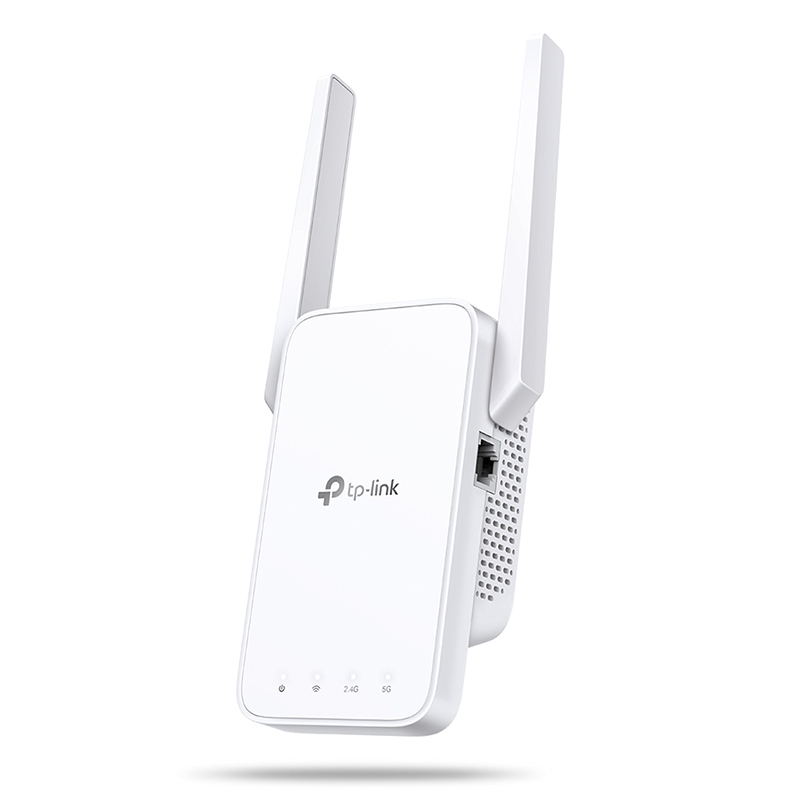

TP-Link AC1200 Mesh Wi-Fi Range Extender (RE315)

Dual‑band Wi‑Fi Range Extender RE315: 2.4 GHz 300 Mbps + 5 GHz 867 Mbps, 2 external antennas, 1 Γ— 10/100 Mbps Ethernet, WPS & Reset buttons, AP/Extender modes, WPA/WPA2 security, web & app management.

TP-Link AC1200 Mesh Wi-Fi Range Extender (RE315)
  • Wireless-Access-Points-WAP-TP-Link-AC1200-Mesh-Wi-Fi-Range-Extender-RE315-6
  • Wireless-Access-Points-WAP-TP-Link-AC1200-Mesh-Wi-Fi-Range-Extender-RE315-2
  • Wireless-Access-Points-WAP-TP-Link-AC1200-Mesh-Wi-Fi-Range-Extender-RE315-3
  • Wireless-Access-Points-WAP-TP-Link-AC1200-Mesh-Wi-Fi-Range-Extender-RE315-4
$79.00
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

    • DELIVERY
    • Post Out Of Stock
    QLD Pickup & Post
    • Post Out Of Stock
    • Mansfield Robot Super StoreIcon 3 Out Of Stock
    • Milton Out Of Stock
    • Eight Mile Plains Out Of Stock
    • Chermside Out Of Stock
    • Maroochydore Out Of Stock
    • Southport Out Of Stock
    • Hillcrest Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    • Annandale Out Of Stock
    • Parramatta New Out Of Stock
    • Mosman New Out Of Stock
    • Hurstville New Out Of Stock
    • Carlingford New Out Of Stock
    • Crows Nest New Out Of Stock
    • Goulburn New Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Mitcham Out Of Stock
    • Essendon Out Of Stock
    • Dandenong South Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    • Holden Hill Out Of Stock
    • Adelaide CBD Icon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    • Osborne Park Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 34hrs and 17mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Wireless-Access-Points-WAP-TP-Link-AC1200-Mesh-Wi-Fi-Range-Extender-RE315-1



SPECIFICATIONS:

HARDWARE FEATURES


Interface

1 x 10/100Mbps Ethernet Port (RJ45)

Button

WPS Button, Reset Button

Input Power

100-240V~50/60Hz

Max. Power Consumption

9.5W（max power consumptionοΌ‰

Dimensions ( W x D x H )

3.5Γ—1.4Γ—4.9 in. (89Γ—35.0Γ—124.1 mm)

Antenna

2 External Antennas

WIRELESS FEATURES


Wireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4GHz and 5GHz

Signal Rate

300Mbps at 2.4GHz, 867Mbps at 5GHz

Working Modes

Range Extender/Access Point

Reception Sensitivity

5 GHz:

11a 6Mbps: -94dBm

11a 54Mbps: -77dBm

11ac HT20 MCS0: -94dBm

11ac HT20 MCS8: -71dBm

11ac HT40 MCS0: -92dBm

11ac HT40 MCS9: -66dBm

11ac HT80 MCS0: -87dBm

11ac HT80 MCS9: -62dBm



2.4 GHz:

11g 54Mbps: -78dBm

11n HT20 MCS7: -76dBm

11n HT40 MCS7: -74dBm

Wireless Functions

Enable/Disable Wireless Radio

DFS (the latest firmware and hardware version is required)

Access Control

LED Control

Power Schedule

Wi-Fi Coverage

Wireless Security

64/128-bit WEP, WPA/WPA2-PSK/WPA2-PSK2 encryptions

Transmission Power

2.4 GHz ≀20dBm, 5 GHz ≀30dBm

OTHER


Network Services Enabled by Default

Web Server

Manage and configure device through web (HTTP/HTTPS)

β€’ Port: 80/443   Protocol: TCP



DHCP Server

IP address assignment (DHCP)

β€’ Port: 67   Protocol: UDP



App management

Manage and configure device through app

β€’ Port: 20001   Protocol: TCP

β€’ Port: 20002   Protocol: UDP

OTHERS


Certification

CE, RoHS

Package Content

Wi-Fi Range Extender RE315

Quick Installation Guide

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vistaβ„’ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing




  • Product Name:
    TP-Link AC1200 Mesh Wi-Fi Range Extender (RE315)
  • Model Number:
    RE315
  • Brand:
    TP-Link TP-Link
  • Warranty Period:
    3 Year
