Interface

3× 10/100/1000Mbps RJ45 LAN Ports,

1× 10/100/1000Mbps RJ45 WAN/LAN Port,

1× RJ11 Port,

1× USB 2.0 Port

Button

WPS Button, Wi-Fi On/Off Button, Reset Button

External Power Supply

12V/1A

IEEE Standards

IEEE 802.3, IEEE 802.3u, 802.3ab

VDSL2 Standards

ITU G.993.2, Up to 17a profile (POTS)

ITU-T G.993.5 (G.vector)

ITU-T G.998.4 (G.INP)

ADSL Standards

Full-rate ANSI T1.413 Issue 2,

ITU-T G.992.1(G.DMT),

ITU-T G.992.2(G.Lite),

ITU-T G.994.1 (G.hs),

ADSL2 Standards

ITU-T G.992.3 (G.DMT.bis)

ADSL2+ Standards

ITU-T G.992.5

Dimensions ( W x D x H )

8.5 × 4.9 × 1.2 in (215.6 × 124.6 × 31.6 mm)

Antenna

2× fixed Omini-Directional antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

867Mbps at 5 GHz, 300Mbps at 2.4 GHz

Wireless Functions

Enable/Disable Wireless Radio, WMM, Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Transmission Power

<20dBm (2.4 GHz), <23dBm (5 GHz)

Wireless Schedule

Support 2.4 GHz and 5 GHz Wireless Schedule

SOFTWARE FEATURES

Advanced Features

Parental Controls, Network Address Translation(NAT), Port Mapping

(Grouping), Static Routing, DDNS, IGMP V1/V2/V3

Security

NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding

Operating Modes

VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router

Management Features

Web-Based Configuration (HTTP / HTTPS ), Remote management,

Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update

DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay

Port Forwarding

Virtual Server, Port Triggering, DMZ, ALG, UPnP

Dynamic DNS

DynDns, NO-IP, TP-Link

VPN

OpenVPN, PPTP VPN, IPSec VPN

Protocols

Supports IPv4 and IPv6

ATM/PPP Protocols

ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs

Guest Network

2.4GHz Guest Network, 5GHz Guest Network

OTHER

Network Services Enabled by Default

Web Server

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443   Protocol: TCP

DHCP Server

IP address assignment (DHCP)

• Port: 67   Protocol: UDP

DNS

• Port: 53   Protocol: TCP

App management

Manage and configure device through app

• Port: 22   Protocol: TCP

• Port: 20002   Protocol: TCP

CWMP

CPE WAN Management Protocol

• Port: 7547   Protocol: TCP

OTHERS

Certification

CE, RCM, RoHS

Package Content

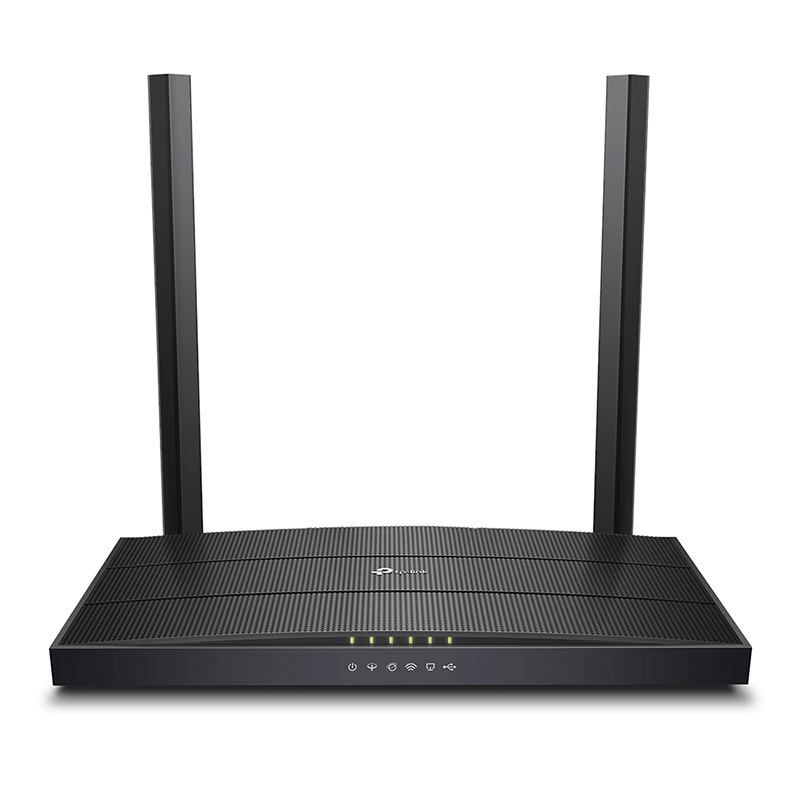

AC1200 Wireless MU-MIMO VDSL/ADSL Modem Router Archer VR400

External Splitter

RJ11 DSL Cable

RJ45 Ethernet Cable

Power Adapter

Quick Installation Guide

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, macOS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Subscription with an internet service provider (for internet access)

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Operating Humidity: 10%~90% non-condensing
