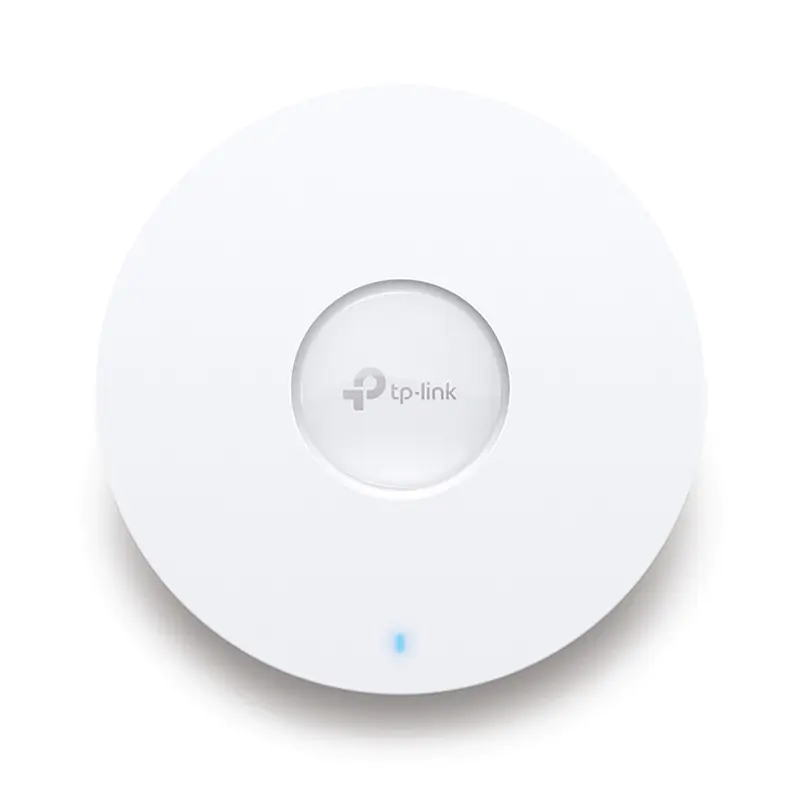

TP-Link AX3000 Ceiling Mount Dual-Band Wi-Fi 6 Wireless Access Point (EAP653)

TP-Link AX3000 Ceiling Mount Dual-Band Wi-Fi 6 Wireless Access Point (EAP653)
  • Wireless-Access-Points-WAP-TP-Link-AX3000-Ceiling-Mount-Dual-Band-Wi-Fi-6-Wireless-Access-Point-EAP653-5
  • Wireless-Access-Points-WAP-TP-Link-AX3000-Ceiling-Mount-Dual-Band-Wi-Fi-6-Wireless-Access-Point-EAP653-2
  • Wireless-Access-Points-WAP-TP-Link-AX3000-Ceiling-Mount-Dual-Band-Wi-Fi-6-Wireless-Access-Point-EAP653-3
$145.0 Question Mark
Was: $159.0  WAS Tips    Save $14.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Same Day Dispatch   Question Mark

Order within 7hrs and 40mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    TP-Link AX3000 Ceiling Mount Dual-Band Wi-Fi 6 Wireless Access Point (EAP653)
  • Model Number:
    EAP653
  • Brand:
  • Manufacturer Warranty:
    5 Year

Description

Wireless-Access-Points-WAP-TP-Link-AX3000-Ceiling-Mount-Dual-Band-Wi-Fi-6-Wireless-Access-Point-EAP653-1




SPECIFICATIONS:

HARDWARE FEATURES


Interface

1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button

Reset

Power Supply

EU: 48V Passive PoE or 802.3at PoE or 12V/1A DC

US: 48V Passive PoE or 802.3at PoE or 12V/1.5A DC

Power Consumption

• EU: 13.07 W

• US: 13.98 W

Dimensions ( W x D x H )

6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)

Antenna Type

Internal Omni

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 5 dBi

Mounting

• Ceiling /Wall Mounting (Kits included)

• Junction Box Mounting

WIRELESS FEATURES


Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: Up to 2402 Mbps

• 2.4 GHz: Up to 574 Mbps

Wireless Functions

• 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• HE160 (160 MHz Bandwidth)

• Seamless Roaming §

• Omada Mesh§

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security

• Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, Band1 & Band2, EIRP)

<27 dBm(5 GHz, Band3, EIRP)



• FCC:

<22 dBm (2.4 GHz)

<22 dBm (5 GHz)

MANAGEMENT


Omada App

Yes

Centralized Management

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

• Omada Cloud-Based Controller

Cloud Access

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS


Certification

CE, FCC, RoHS

Package Contents

• EAP653

• Ceiling/Wall Mounting Kits

• Installation Guide



* DC adapter is not included in the package, and is sold separately.

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Notes

Maximum   wireless signal rates are the physical rates derived from IEEE Standard   802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM,   require clients to support the corresponding features. The 160 MHz bandwidth   is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.

§Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to   find all the models supported by Omada mesh technology to find all the models   supported by Omada mesh technology, and refer to the User Guides of Omada SDN   controllers for configuration methods.

*Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to   confirm which models are compatible with Omada Cloud-Based Controller.
