Interface

1× 10G/2.5G Ethernet Port

Button

Reset

Power Supply

802.3bt/at PoE or 12V/2.5A DC

Max. Power Consumption

• 26.3 W (For PoE);

• 22.4 W (For DC)

Dimensions ( W x D x H )

8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm)

Antenna

• 2.4 GHz: 2× 4.0 dBi

• 5 GHz: 4× 5.0 dBi

• 6 GHz: 2× 5.0 dBi

Bluetooth

1 × 5 dBi (peak gain), Internal antenna module

*Firmware update may be required.

Mounting

Ceiling / Wall/ Junction Box Mounting (Kits Included)

WIRELESS FEATURES

Coverage

2050 ft² (190 m²)*

*Coverage value is calculated based on laboratory testing. Actual coverage is not   guaranteed and will vary as a result of client limitations and environmental factors.

Concurrent Clients

510+**

**The actual capacity depends on the wireless environment and client traffic and is   generally less than the maximum number of client connections.

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax/be

Frequency

6 GHz, 5 GHz, and 2.4 GHz

Signal Rate

688 Mbps (2.4 GHz) + 5765 Mbps (5 GHz) + 5765 Mbps (6 GHz)*

*Maximum wireless signal rates are the physical rates derived from IEEE Standard   802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput and coverage are not guaranteed and will vary.

Wireless Functions

• 320 MHz Bandwidth*

• MLO*

• 4K-QAM*

• Multi-RUs*

• Seamless Roaming(802.11k/v/r)

• MU-MIMO*

• Mesh**

• BSS Coloring*

• OFDMA*

• Load Balance

• Band Steering

• Beamforming

• Airtime Fairness

• Multiple SSIDS:24(8 on each band)

• Wireless Schedule

• Reboot Schedule

• QoS(WMM)

• Rate Limit

• Static IP/Dynamic IP

• RADIUS Accounting

• MAC Authentication

*Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link   Operation (MLO), 320 MHz Bandwidth, 240 MHz Bandwidth, 160 MHz Bandwidth, 6   GHz, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support   the corresponding features.

**Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller.

Wireless Security

• Captive Portal Authentication*

• Access Control

• Mac Filter

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

*Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller.

Transmission Power

6-20 dBm (2.4 GHz, EIRP)

9-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP)

9-30 dBm (5 GHz, U-NII-2C, EIRP)

6-23 dBm (6 GHz, EIRP)

MANAGEMENT FEATURES

Omada App

Yes

Centralized Management

• Omada Central (Cloud-Based)

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Require the use of an Omada controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Yes

Web-based Management

Yes

OTHERS

Certification

CE, FCC, RoHS, IC

Package Content

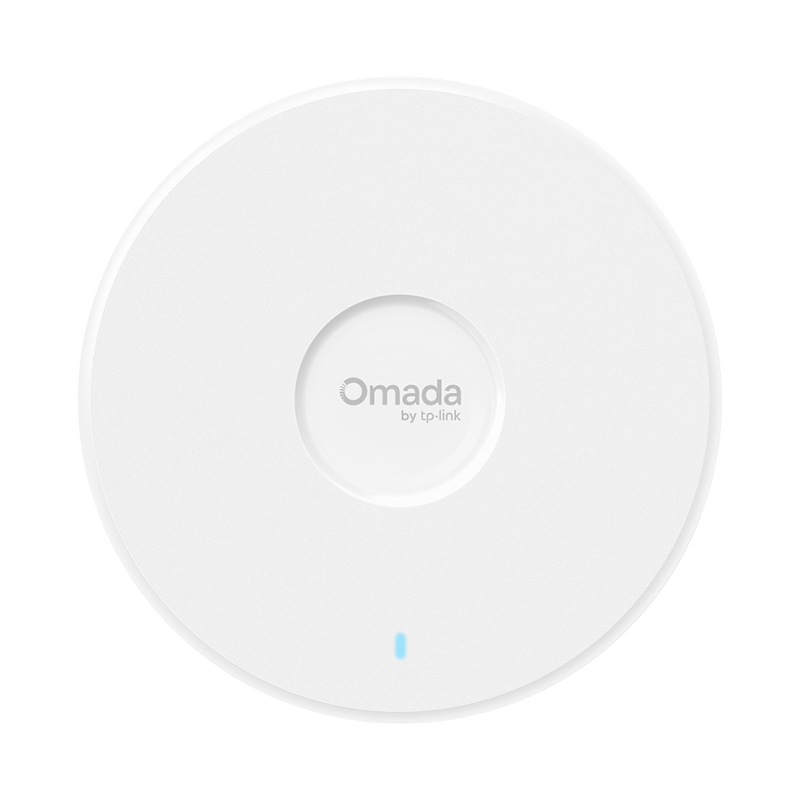

• EAP787

• Installation Guide

• Ceiling/Wall/Junction Box Mounting Kit

Note: Power Adapter is NOT included.

Environment

• Operating Temperature: 0 °C–40 °C (32 °F–104 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing;
