Interface

1× 2.5 Gbps LAN Port

Button

• WPS Button

• Reset Button

Input Power

100-240V~50/60Hz 0.5A

Max. Power Consumption

23.5W

Dimensions ( W x D x H )

4.2 ×1.5 × 6.3 in. (107.2 × 39 × 161 mm)

Antenna

4 External Antennas

WIRELESS FEATURES

Wireless Standards

Wi-Fi 7

IEEE 802.11be/ax 6 GHz

IEEE 802.11be/ax/ac/n/a 5 GHz

IEEE 802.11be/ax/n/b/g 2.4 GHz

Frequency

• 6 GHz

• 5 GHz

• 2.4 GHz

Signal Rate

• 5764 Mbps at 6 GHz

• 2880 Mbps at 5 GHz

• 688 Mbps at 2.4 GHz

Working Modes

Range Extender/Access Point

Reception Sensitivity

6GHz:

11be HE20 MCS0：-95dBm, 11be HE20 MCS13：-60dBm

11be HE40 MCS0：-92dBm, 11be HE40 MCS13：-57dBm

11be HE80 MCS0：-88dBm, 11be HE80 MCS13：-53dBm

11be HE160 MCS0：-85dBm,   11be HE160 MCS13：-50dBm

11be HE320 MCS0：-81dBm,   11be HE160 MCS13：-46dBm

5GHz:

11be HE20 MCS0：-93dBm, 11be HE20 MCS13：-58dBm

11be HE40 MCS0：-89dBm, 11be HE40 MCS13：-54dBm

11be HE80 MCS0：-87dBm, 11be HE80 MCS13：-51dBm

11be HE160 MCS0：-85dBm,   11be HE160 MCS13：-49dBm

2.4GHz:

11be HE20 MCS0：-97dBm, 11be HE20 MCS11：-64dBm

11be HE40 MCS0：-95dBm, 11be HE40 MCS11：-62dBm

Wireless Security

• WPA/WPA2-PSK encryptions

• WPA3

Advanced Features

• Multi-Link Operation (MLO)

• 320 MHz Channel

• 4K-QAM

• Multi-RUs

Transmission Power

• 2.4GHz < 30dBm

• 5GHz < 23dBm (Band1 - Band2), < 30dBm (Band 3 - Band 4)

• 6GHz < 23dBm

Mesh Technology

EasyMesh-Compatible

Wireless Function

• LED Control

• Access Control

• Power Schedule

• Wi-Fi Coverage

OTHERS

Certification

CE, RCM, RoHS

Package Content

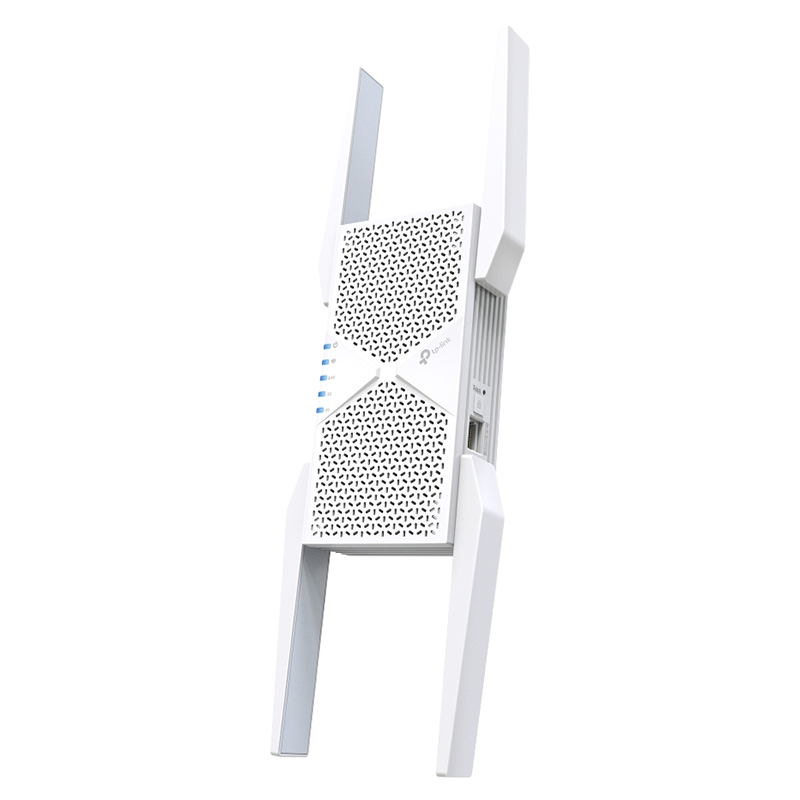

• Wi-Fi 7 Range Extender RE655BE

• Quick Installation Guide

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or

Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari

4.0, or other Java-enabled browser

Environment

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)

• Storage Temperature: -40℃~70℃   (-40℉ ~158℉)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
