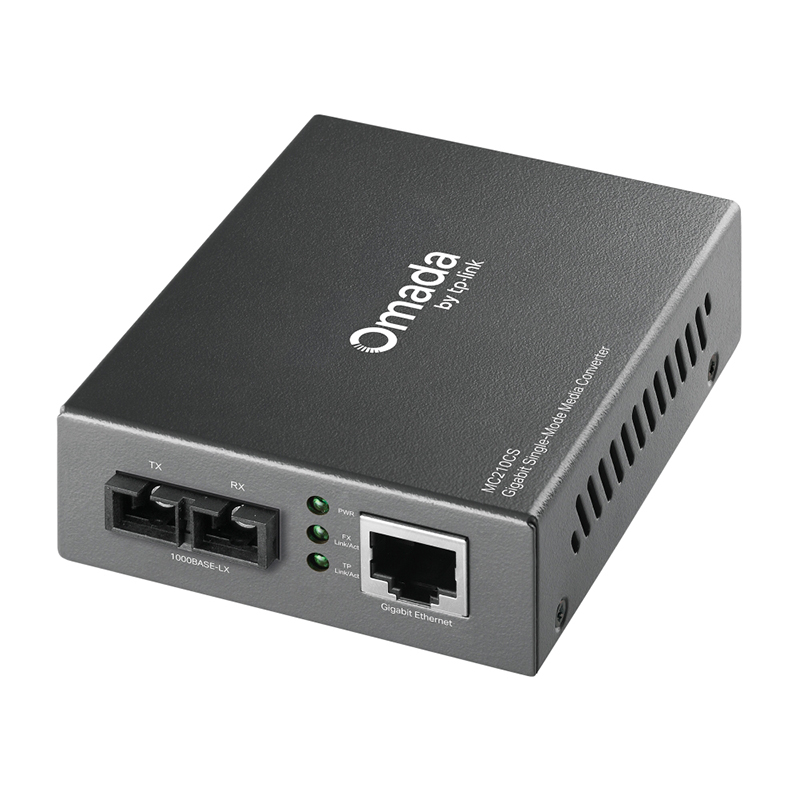

TP-Link Gigabit Single-Mode UN/7.20 Media Converter (MC210CS-AU)

TP-Link MC210CS media converter: 1000BASE‑LX single‑mode fiber (1310β€―nm) to 1000BASE‑T copper, up to 20β€―km reach, auto‑MDI/MDIX RJ45, 2 SC/UPC ports, LED indicators, external 1.8β€―W power.

TP-Link Gigabit Single-Mode UN/7.20 Media Converter (MC210CS-AU)
  • Fiber-Convertor-TP-Link-Gigabit-Single-Mode-UN-7-20-Media-Converter-MC210CS-AU-3
  • Fiber-Convertor-TP-Lin-Gigabit-Single-Mode-UN-7-20-Media-Converter-MC210CS-AU-1
$35.00
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

    • DELIVERY
    • Post Out Of Stock
    QLD Pickup & Post
    • Post Out Of Stock
    • Mansfield Robot Super StoreIcon 3 Out Of Stock
    • Milton Out Of Stock
    • Eight Mile Plains Out Of Stock
    • Chermside Out Of Stock
    • Maroochydore Out Of Stock
    • Southport Out Of Stock
    • Hillcrest Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    • Annandale Out Of Stock
    • Crows Nest New Out Of Stock
    • Carlingford New Out Of Stock
    • Hurstville New Out Of Stock
    • Mosman New Out Of Stock
    • Parramatta New Out Of Stock
    • Goulburn New Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Mitcham Out Of Stock
    • Essendon Out Of Stock
    • Dandenong South Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    • Adelaide CBD Icon 3 Out Of Stock
    • Holden Hill Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 31hrs and 35mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

TP-Link Gigabit Single-Mode UN/7.20 Media Converter
The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilising the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilising single-mode fiber up to 20 kilometers.





SPECIFICATIONS:

MEDIA CONVERTER & MODULE


Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

Basic Function

Auto-negotiation of Half-Duplex / Full-Duplex transfer mode

Extends fiber distance up to 20km

Interface

β€’ 2Γ— 1000M SC/UPC ports

β€’ 1Γ— 10/100/1000M RJ45 port (Auto MDI/MDIX)

Wave Length

1310nm

Network Media 1000BASE-LX

Single-mode Fiber

Network Media 1000BASE-T

UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ξ© STP (maximum 100m)

Dimensions ( W x D x H )

3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power Supply

External Power Adapter

Max. Power Consumption

1.8W

LED

PWR, Link/Act

Safety & Emission

FCC, CE, RoHS

Package Content

β€’ MC210CS

β€’ Power Adapter

β€’ Installation Guide

Environment

β€’ Operating Temperature: 0℃~50℃ (32℉~122℉)

β€’ Storage Temperature: -40℃~70℃ (-40℉~158℉)

β€’ Operating Humidity: 10%~90% non-condensing

β€’ Storage Humidity: 5%~90% non-condensing




  • Product Name:
    TP-Link Gigabit Single-Mode UN/7.20 Media Converter (MC210CS-AU)
  • Model Number:
    MC210CS-AU
  • Brand:
    TP-Link TP-Link
  • Warranty Period:
    3 Year
