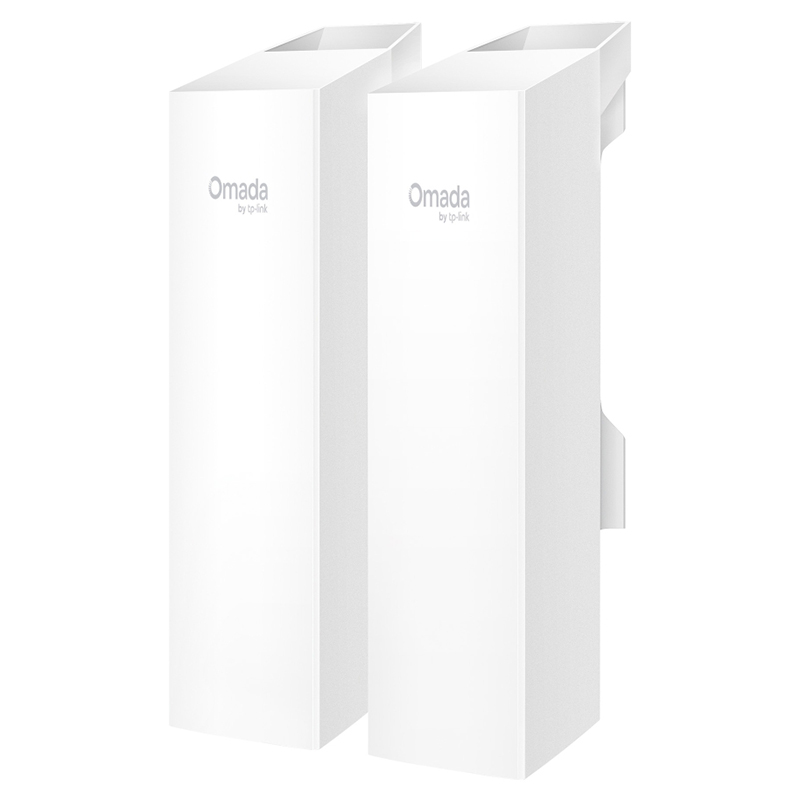

TP-Link Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge (EAP100-Bridge KIT)

Outdoor 2.4 GHz bridge with 2×2 MIMO, 500 m coverage, 3×10/100 Mbps ports, IP65 rating, dual‑polarized directional antennas, PoE (12 V/802.3af/24 V/48 V), Omada app control, LED, SNMP/SSH.

TP-Link Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge (EAP100-Bridge KIT)
  • Wireless-Access-Points-WAP-TP-Link-Omada-2-4GHz-300Mbps-Indoor-Outdoor-Wireless-Bridge-EAP100-Bridge-KIT-7
  • Wireless-Access-Points-WAP-TP-Link-Omada-2-4GHz-300Mbps-Indoor-Outdoor-Wireless-Bridge-EAP100-Bridge-KIT-2
  • Wireless-Access-Points-WAP-TP-Link-Omada-2-4GHz-300Mbps-Indoor-Outdoor-Wireless-Bridge-EAP100-Bridge-KIT-3
  • Wireless-Access-Points-WAP-TP-Link-Omada-2-4GHz-300Mbps-Indoor-Outdoor-Wireless-Bridge-EAP100-Bridge-KIT-4
  • Wireless-Access-Points-WAP-TP-Link-Omada-2-4GHz-300Mbps-Indoor-Outdoor-Wireless-Bridge-EAP100-Bridge-KIT-5
$84.0 Question Mark
Was: $89.0  WAS Tips    5% Off!  Save $5.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Next Day Dispatch   Question Mark

Order within 18hrs and 0mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    TP-Link Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge (EAP100-Bridge KIT)
  • Model Number:
    EAP100-Bridge KIT
  • Brand:
  • Warranty Period:
    3 Year

Description

Wireless-Access-Points-WAP-TP-Link-Omada-2-4GHz-300Mbps-Indoor-Outdoor-Wireless-Bridge-EAP100-Bridge-KIT-1



SPECIFICATIONS:

HARDWARE FEATURES


Interface

3x 10/100 Mbps Ethernet Ports

Button

Reset

Power Supply

12V DC / 802.3af PoE / 24V Passive PoE / 48V Passive PoE

Max. Power Consumption

4.8 W

Dimensions ( W x D x H )

3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)

Antenna

Internal 2×2 Dual-polarized directional MIMO antennas

2.4 GHz: 8.0 dBi

Horizontal:70°, Vertical: 70°

Weatherproof Enclosure

IP65

Mounting

Pole and wall mounting ( Pole accessories included)

WIRELESS FEATURES


Coverage

500 m (0.31 mi)*



*The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.

Wireless Standards

IEEE 802.11b/g/n

Frequency

2.4 GHz

Signal Rate

2.4 GHz: Up to 300 Mbps

Wireless Functions

• MIMO: 2.4G 2 × 2 MIMO

• Mesh

• Beamforming

• Channel: 1-11 (US); 1-13 (EU)

• Multiple SSIDs:8

• Wireless Statistics

• Wireless Schedule

• Reboot Schedule

• RADIUS Accounting

• Static IP/Dynamic IP

• Rate Limit

• Guest Network

• Enable/Disable Wireless Radio

• Enable/Disable SSID Broadcast

Wireless Security

• VLAN

• Rogue AP Detection

• Maximum number of MAC Filter: 4,000

• Wireless Encryption

Transmission Power

• CE:

<20dBm (2.4 GHz, EIRP);



• FCC:

<22dBm (2.4 GHz)

MANAGEMENT FEATURES


Omada App

Yes

Restore & Backup

Yes

Firmware update via Web

Yes

NTP

Yes

Centralized Management

• Omada Hardware Controller

• Omada Software Controller

• Omada App

Email Alerts

Yes

LED ON/OFF Control

Yes

SNMP

Yes

System Logging Local/Remote Syslog

Yes

SSH

Yes

Web-based Management

Yes

OTHERS


Certification

CE, FCC, RoHS

Package Content

• EAP100-Bridge KIT

• Installation Guide

• Pole Mounting Kit

Environment

• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing
