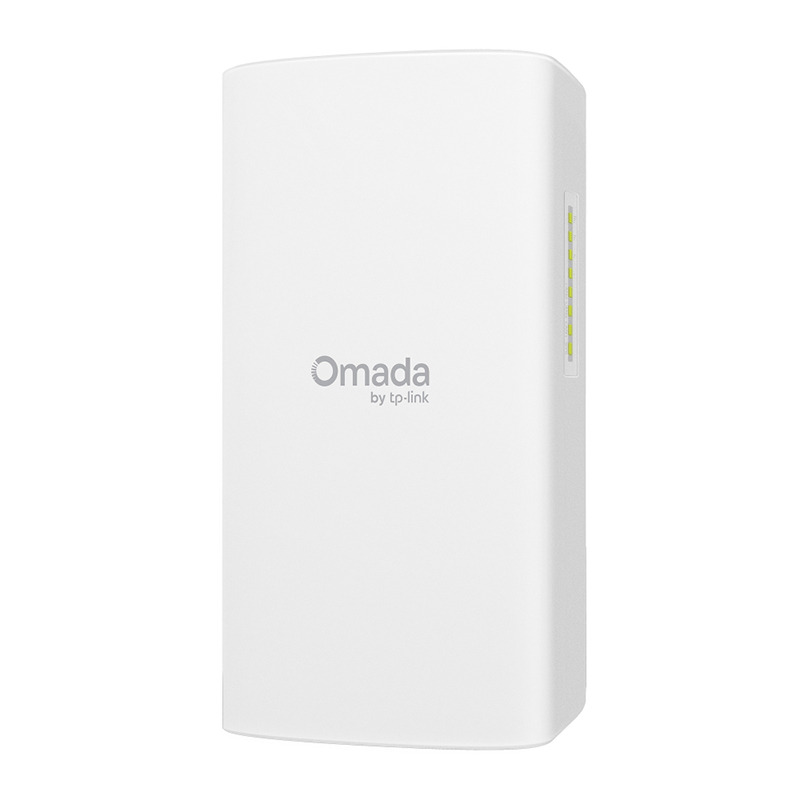

TP-Link Omada 5 GHz 867 Mbps Long-Range Connectivity for Indoors/Outdoors Wireless Flex Bridge (Flex Bridge 5)

Interface

3× Gigabit Ethernet Ports (2 Support PoE Out)

Button

Reset

DIP Switch

• Role Switch

• Pairing Code Switch

Power Supply

• 12V DC

• 802.3at/af PoE

• 24V Passive PoE (54V Passive PoE Adapter Included - For Dry Indoor Use Only)

Max. Power Consumption

DC: 12W

PoE: 26.06W with PoE out

Dimensions ( W x D x H )

8.4 × 2 × 4.7 in (214.2 × 50.8 × 119.8 mm)

Antenna

• 2.4 GHz: 1 × 1 dBi (peak gain), internal omnidirectional antennas

• 5 GHz: 2 × 17 dBi (peak gain), internal directional antennas

• Beamwidth: Horizontal 40°, Vertical 18°

Weatherproof Enclosure

IP66

Mounting

Pole and wall mounting (Kits included)

MANAGEMENT FEATURES

Omada App

Yes

Restore & Backup

Yes

Firmware update via Web

Yes

NTP

Yes

Centralized Management

• Omada Central (Cloud-Based)

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Require the use of an Omada Controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

SNMP

Yes

SSH

Yes

Web-based Management

Yes

Zero-Touch Provisioning

Yes

WIRELESS FEATURES

PtP

Yes

PtMP

8 Recommended, 32 Maximum

Transmission Distance

5,000 m (3.1 mi)

Wireless Standards

IEEE 802.11 a/n/ac

Frequency

5 GHz

Signal Rate

5 GHz: Up to 867 Mbps

Wireless Functions

• MU-MIMO: 5G 2x2 MU-MIMO DL

• Multiple SSIDs: 1

• Wireless Statistics

• Reboot Schedule

• RADIUS Accounting

• Static IP/Dynamic IP

• Rate Limit

• Enable/Disable Wireless Radio

• Enable/Disable SSID Broadcast

Wireless Security

• VLAN

• Rogue AP Detection

• Wireless Encryption

Transmission Power

• CE:

<23dBm (5 GHz, band 1/2, EIRP)

<30dBm (5 GHz band3, EIRP)

• FCC:

<23.5dBm (5 GHz band1)

<25dBm (5 GHz band4)

OTHERS

Certification

CE, FCC, RoHS

Package Content

• Flex Bridge 5

• Installation Guide

• Mounting Kit

• Passive PoE Adapter

• Power Cord

Lightning Protection

• Air discharge: ±8kV

• Contact discharge: ±4kV

• Common mode 10/700: ±6kV

Environment

• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing

Weight

0.59 kg (1.3 lbs)
