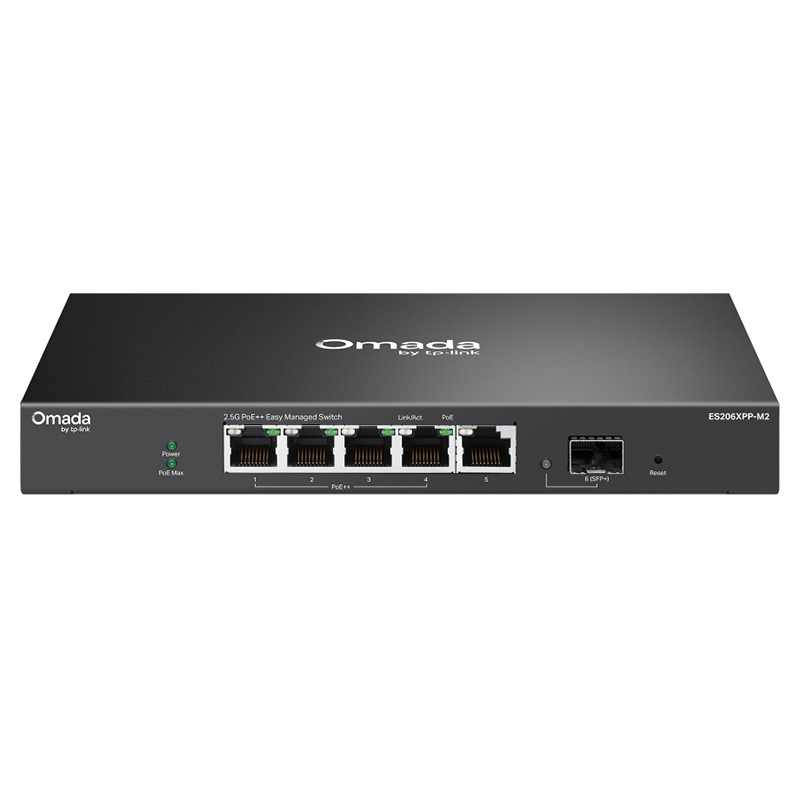

TP-Link Omada 5 Port Easy Managed Switch with 4 Port PoE++ (ES206XPP-M2)

TP-Link Omada 5 Port Easy Managed Switch with 4 Port PoE++ (ES206XPP-M2)
  • Switches-TP-Link-Omada-5-Port-Easy-Managed-Switch-with-4-Port-PoE-ES206XPP-M2-7
  • Switches-TP-Link-Omada-5-Port-Easy-Managed-Switch-with-4-Port-PoE-ES206XPP-M2-2
  • Switches-TP-Link-Omada-5-Port-Easy-Managed-Switch-with-4-Port-PoE-ES206XPP-M2-3
  • Switches-TP-Link-Omada-5-Port-Easy-Managed-Switch-with-4-Port-PoE-ES206XPP-M2-4
  • Switches-TP-Link-Omada-5-Port-Easy-Managed-Switch-with-4-Port-PoE-ES206XPP-M2-5
$237.00 Question Mark
Was: $269.0  WAS Tips    Save $32.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Next Day Dispatch   Question Mark

Order within 16hrs and 9mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

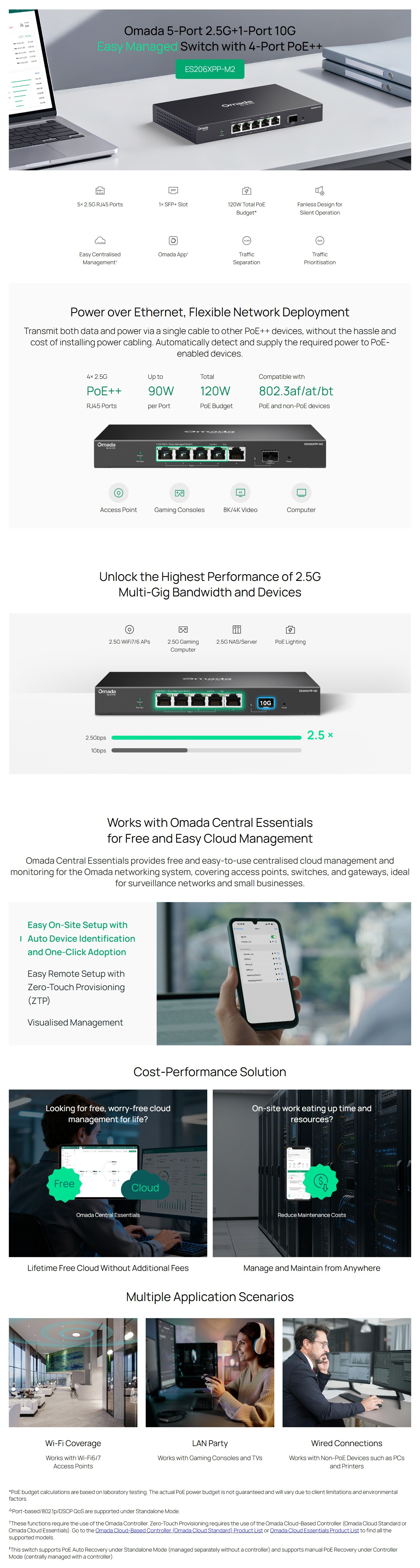

Switches-TP-Link-Omada-5-Port-Easy-Managed-Switch-with-4-Port-PoE-ES206XPP-M2-1



SPECIFICATIONS:

HARDWARE FEATURES


Interface

• 5× 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++)

• 1× 10 Gbps SFP+ Slot

• Auto-Negotiation/Auto MDI/MDIX

Fan Quantity

Fanless

Installation

• Desktop

• Wall Mount

Physical Security Lock

√

Power Supply

DC Power Adapter (Output: 53.5 VDC / 2.43 A)

PoE Ports (RJ45)

• Standard: 802.3af/at/bt PoE++ compliant

• PoE Ports: 4 Ports

• PoE Budget: 120W available for all PoE++ ports, 90W max per port

• Fast PoE & Perpetual PoE

• PoE Auto Recovery*



* These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.

Dimensions ( W x D x H )

8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm)

Surge Protection

±6 kV

PERFORMANCE


Packet Buffer Memory

640 KB

Jumbo Frame

10 KB

Switching Capacity

45 Gbps

Packet Forwarding Rate

33.48 Mpps

MAC Address Table

16K

SOFTWARE FEATURES


Quality of Service

• Port-based/802.1p/DSCP QoS

• 8 Priority Queues

• Priority Schedule Mode

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port-Based Rating Limit

• Storm Control

- Multiple Control Modes (kbps/pps)

- Broadcast/Multicast/Unknown-Unicast Control*



* Port-based/802.1p/DSCP QoS are supported under Standalone Mode.

L2 Features

• Static Link Aggregation

• Loop Prevention / Loopback Detection

• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- One-to-One

- Many-to-One

- Ingress/Egress/Both

• Port Statistics

- Port Mirror Status

- Traffic Statistics

• 802.1ab LLDP

L2 Multicast

• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

VLAN

• MTU VLAN

• Port-Based VLAN

• 802.1Q Tag VLAN

- Max 32 VLAN Groups

- 4K VID

Transmission Method

Store-And-Forward

MANAGEMENT FEATURES


Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

Management Features

• Web-based GUI

• DHCP Client

• Cable Diagnostics

• Automatic Device Discovery*

• Batch Configuration*

• Batch Firmware Upgrading*

• Unified Configuration*



* These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.

OTHERS


Certification

FCC, CE, RoHS

Package Content

• ES206XPP-M2

• Power Adapter

• Power Cord

• Rubber Feet

• Installation Guide

Environment

• Operating Temperature: -5℃~40℃ (23℉~104℉)

• Storage Temperature: -40℃~70℃ (-40℉~158℉)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing




  • Product Name:
    TP-Link Omada 5 Port Easy Managed Switch with 4 Port PoE++ (ES206XPP-M2)
  • Model Number:
    ES206XPP-M2
  • Brand:
  • Warranty Period:
    5 Year
