CAMERA |
|
Image Sensor | 1/2.65” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Auto |
LENS |
|
Type | Fixed Focal Lens |
Focal Length | 4 mm |
Aperture | F1.6 |
FOV | 4 mm: Horizontal FOV: 92.0°, Vertical FOV: 48.0°, Diagonal FOV: 110.0° |
Lens Mount | M12 |
DORI Distance | 4 mm Detect: 262 ft (80 m) Observe: 108 ft (33 m) Recognize: 52 ft (16 m) Identify: 26 ft (8 m) |
ANGLE ADJUSTMENT (MANUAL) |
|
Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
ILLUMINATOR |
|
Illuminator On/Off Control | Auto/Always on/Always off |
Integrated Infrared-White LED | • Quantity: 2 • IR Range: 98 ft (30 m) • White LED Range: 98 ft (30 m) • IR Wavelength: 850 nm |
VIDEO |
|
Max. Resolution | 2880x1620 |
Main Stream | • Frame Rate: 50Hz: 25fps (2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720) 60Hz: 30fps (2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
Sub-Stream | • Frame Rate: 50Hz: 25fps (848x480,704x576, 640x480, 640x360,352x288, 320x240) 60Hz: 30fps (848x480,704x576, 640x480, 640x360,352x288, 320x240) |
Bit Rate Control | CBR, VBR |
Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
H.264 Type | High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | • Main Stream: 256 Kbps to 6144 Kbps • Sub-Stream: 64 Kbps to 512 Kbps |
IMAGE |
|
Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • White Balance |
Image Enhancement | BLC/3D DNR/Smart IR |
Wide Dynamic Range | 120dB |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
OSD Setting | Yes |
AUDIO |
|
Audio Communication | N/A |
Audio Input | Yes (Built-in Microphone) |
Audio Output | N/A |
Audio Compression | Yes |
Audio Sampling Rate | 8KHz, 16KHz |
Environment Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps(G.711 alaw, G.711 ulaw) |
NETWORK |
|
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
ONVIF | Yes |
Smart Integration | Amazon Alexa |
API | Open Network Video Interface (Profile S/T) |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | Web UI, Omada Guard APP, Omada Cloud-Based Controller (Guard) |
Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
Cloud | Yes |
Security | Password Protection, HTTPS Encryption, IP/MAC Restriction, Digest Authentication, 802.1X authentication |
ALARM AND EVENT MANAGEMENT |
|
Event | • Motion Detection (People Detection, Vehicle Detection, Pet Detection) • Intrusion Detection • Line-Crossing Detection • Video Tampering Detection |
Alarm Linkage | • Sending Email • Upload to FTP • Message Push |
INTERFACES |
|
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Alarm | N/A |
Reset Button | N/A |
Power | DC Power Port |
On-board Storage | N/A |
Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
Built-in Speaker | N/A |
Audio | N/A |
GENERAL |
|
Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
Operating Humidity | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |
Package Content | • Omada Camera • Quick Start Guide • Waterproof Accessories • Mounting Accessories • Network Cable • Surveillance Sticker • Mounting Template • Installation Guide
*The pole mounting kits are not included in the package. |
Material | Metal |
Net Weight | 0.42 kg |
Power Supply | DC • 12V DC ± 5%, Max. 7.4 W, 5.5 mm Coaxial Power Plug • Recommended Power Supply: T120100-2C4 (for EU Regions) PoE • PoE: 802.3af/at, Max. 8.7 W ErP Information • Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 2.3 W |
Protection | • IP67 Weatherproof • IK10 Vandal Proof |

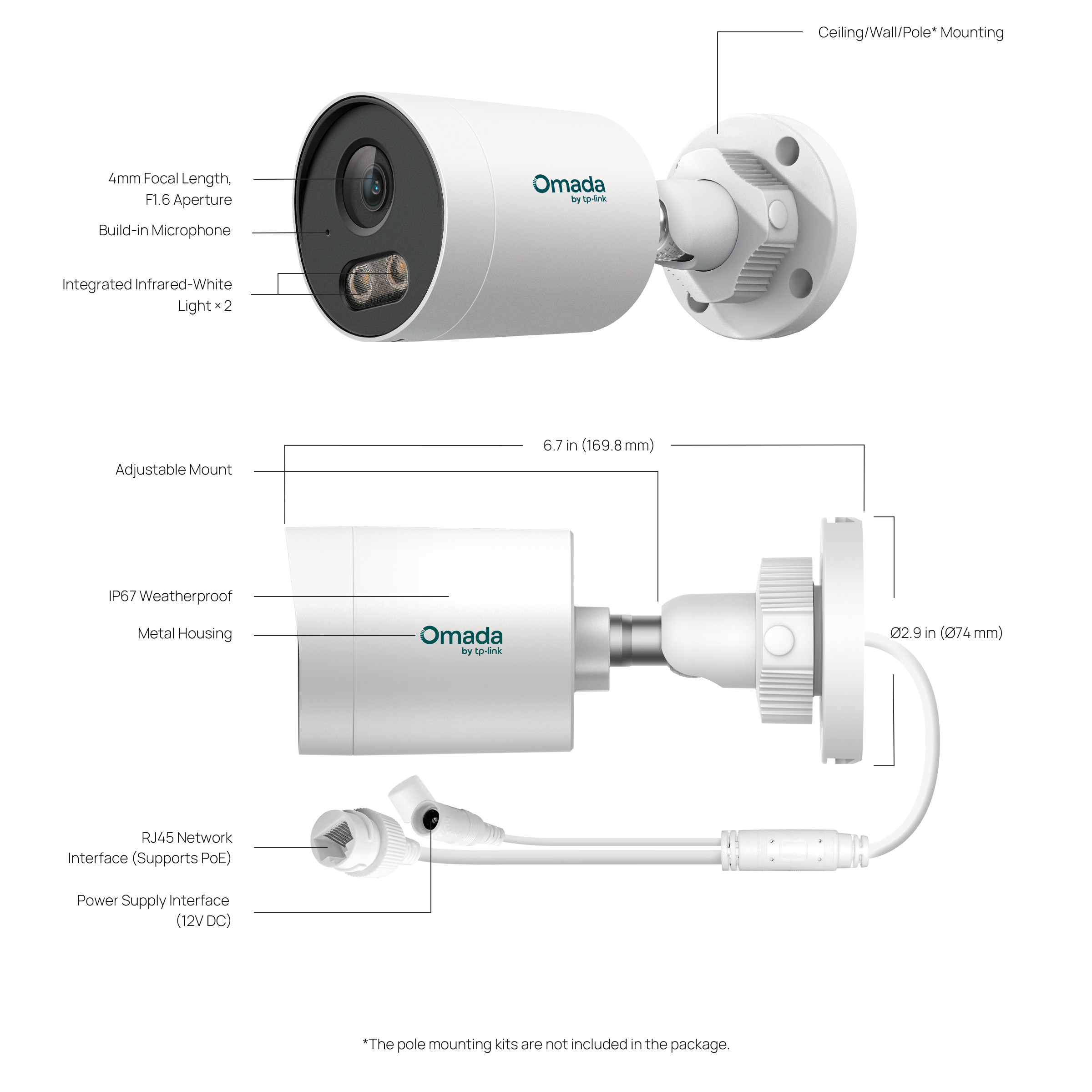

Product Dimensions (L x W x H) | 6.7 × 2.9 × 2.9 in (169.8 × 74 × 74 mm) |
Certifications | CE, FCC, BSMI, VCCI, IC, IP67, IK10 |
