VIDEO AND AUDIO |
|
IP Video Input | 16-Channel |
Managed Cameras | • 16 (HD) • 16 (2K/5MP) • 12 (4K/8MP) • 8 (12MP) • 6 (16MP) |
HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 2560x1440/60Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
Video Output Mode | HDMI and VGA Simultaneous Output |
Multi-View Display | 1/4/6/8/9/16, Custom Layout |
DECODING |
|
Audio Compression | G.711A/G.711U/G.726 |
Video Compression | H.265+/H.265/ H.264+/H.264 |
Record Resolution | 16MP/ 8MP/ 5MP/ 4MP/ 3MP/ 1080p/ UXGA/ 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF |
Synchronous Playback | 16-Channel** |
Capability | • 25fps: 10-ch @ 2MP • 30fps: 1-ch @ 16MP, 2-ch @ 8MP, 4-ch @ 5MP, 5-ch @ 4MP, 6-ch @ 3MP |
RECORD MANAGEMENT |
|
Record Mode | • Manual Recording • Scheduling Recording • Event Recording |
Playback Mode | • Instant Playback • Regular Playback • Event Playback |
Backup Mode | • Regular Backup • Video Clip Backup |
Playback Function | • Play • Pause • Stop • Fast Forward • Play By Frame • Video Clip • Export Clip • Audio On/Off |
NETWORK |
|
Protocol | • UPnP (Plug and Play) • NTP (Network Timing) • SMTP • DNS • TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP • RTSP • SSL/TLS • RTP • IPv4 • ARP • LLDP • FTP • IPv6 • SNMP |
Mobile Phone Access | Android, iOS |
Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
Interoperability | ONVIF Profile G/S/T |
EXTERNAL INTERFACE |
|
Network Interface | 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 3.0 Port |
Audio Interface | • 1-ch RCA Input (1.4 Vp-p, 10KΩ) • 1-ch RCA Output (2.8 Vp-p, 1KΩ) |
Power | 1× DC Jack |
Reset Button | 1 |
eSATA | 1 |
HDMI | 1 |
VGA | 1 |
HARD DISK |
|
SATA | 1 SATA Interfaces |
Capacity | • 1× SATA Interface, Up to 16 TB Capacity • 1× 2TB HDD Preinstalled |
POE |
|
Standard | 802.3at/af Compliant |
Interface | 1-8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
PoE Budget | 115 Wâ–³ Available for All PoE+ Ports, 30 W Max per Port |
ALARM |
|
General Alarm | • Motion Detection (Vehicle Detection, Human Detection, Pet Detection) • Video Tampering • Line-Crossing Detection • Intrusion Detection Note: The alarm function requires the use of a camera. |
Anomaly Alarm | • IPC IP Conflict • Video signal loss Note: The alarm function requires the use of a camera. • No disk • Hard drive exception • Hard drive reallocated section count error • No enough space of hard drive • Hard drive password error • NVR offline • NVR IP Conflict • Single Port Short Circuit • Single port power exceeded • Pse chip temperature is too high • Total power exceeded • FTP Directory Storage Space Insufficient • The IP address obtained from DHCP conflicts with the internal IP • Login Exception |
Alarm Linkage | Event: • Buzzer • Pop-up Alarm Screen • Push Notification • Send Email • Highlight Window • Recording Linkage • Light Alarm • Audible Alarm • Channel Alarm Output Note: The alarm function requires the use of a camera. Anormaly Alarm: • Buzzer • Send Email • Pop-up Alarm Screen • Record Linkage |
GENERAL |
|
Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
Storage Humidity | 10%~90% RH Non-Condensing |

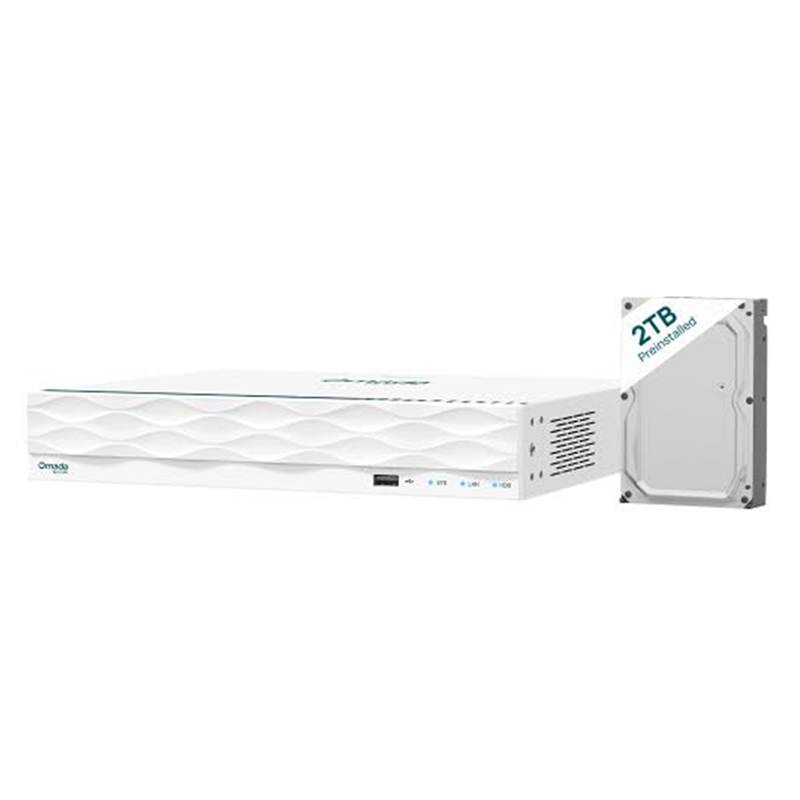

Package Content | • Omada Network Video Recorder • Power Adapter • AC Power Cord • HDMI Cable • Network Cable (3 ft/1 m) • HDD Screws • USB Mouse • Installation Guide • Surveillance Sticker |
Working Temperature | • NVR: -10 °C to 55 °C (14 °F to 131 °F) • Power Adapter: 0°C to 40°C (32 °F to 104 °F) |
Working Humidity | 10%~90% RH Non-Condensing |
Dimensions( W X D X H ) | 10 × 9.1 × 1.8 in (260 × 230 × 45 mm) |
Net Weight | 2.19 Kg (4.83 lbs) |
Gross Weight | 3.58 Kg (7.89 lbs) |
Power Supply | 53.5V DC/2.43A |
Max. Power Consumption | • 4.17 W (Without Disk) • 7.81 W (With Disk) |
Certifications | CE, NTRA, HDMI, FCC, VCCI, BSMI, ONVIF, UL 4200A |
