CAMERA |
|
Image Sensor | 1/2.7” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Auto |
LENS |
|
Type | Fixed Focal Lens |
Focal Length | 4 mm |
Aperture | F1.6 |
FOV | • Horizontal FOV: 88.0° • Vertical FOV: 46.0° • Diagonal FOV: 105.4° |
Lens Mount | M12 |
DORI Distance | 4 mm: • D: 351 ft (107 m) • O: 144 ft (44 m) • R: 69 ft (21 m) • I: 36 ft (11 m) |
ANGLE ADJUSTMENT (MANUAL) |
|
Range | Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360° |
ILLUMINATOR |
|
IR LED | • Quantity: 4 • Range: 98 ft (30 m) • IR Wavelength: 850 nm |
White LED | • Quantity: 4 • Range: 98 ft (30 m) |
Illuminator On/Off Control | Auto/Always on/Always off |
VIDEO |
|
Max. Resolution | 3840x2160 |
Main Stream | • Frame Rate: 50Hz: 25fps (3840x2160, 2560x1440, 2304x1296, 2048x1280,1920x1080) 60Hz: 24fps (3840x2160, 2560x1440, 2304x1296, 2048x1280,1920x1080) • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB WDR is turned on, the frame rate can only support up to 20fps. |
Sub-Stream | • Frame Rate： 50Hz: 25fps (840x480,704x576,640x480, 640x360, 352x288, 320x240) 60Hz: 24fps (840x480,704x576,640x480, 640x360, 352x288, 320x240) • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB WDR is turned on, the frame rate can only support up to 20fps. |
Bit Rate Control | CBR, VBR |
Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
H.264 Type | High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | • Main Stream: 256 Kbps to 8192 Kbps • Sub-Stream: 64 Kbps to 1024 Kbps |
IMAGE |
|
Image Settings | • Mirror • Rotation • Contrast • Brightness • Saturation • Sharpness • Exposure • White Balance |
Image Enhancement | BLC/3D DNR/SmartIR |
Wide Dynamic Range | 120 dB |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
OSD Setting | Yes |
AUDIO |
|
Audio Communication | Two-Way Audio |
Audio Input | Yes (Built-in Microphone) |
Audio Output | Yes (Built-in Speaker) |
Audio Compression | Yes |
Audio Sampling Rate | 8KHz, 16KHz |
Environment Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps(G.711 alaw, G.711 ulaw) |
NETWORK |
|
Protocol | TCP/IP, UDP, ICMP, ARP, SMTP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP |
ONVIF | Yes |
API | Open Network Video Interface (Profile G/S/T) |
Simultaneous Live View | 3 Main Streams & 10 Sub-Streams |
Client | Web UI, Omada Guard App, Omada Cloud-Based Controller (Guard) |
Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
Cloud | Yes |
Security | Password Protection, HTTPS Encryption, IP/MAC Restriction, Digest Authentication, 802.1X Authentication |
ALARM AND EVENT MANAGEMENT |
|
Event | • Motion Detection (Human Detection, Vehicle Detection, Pet Detection) • Line Crossing Detection • Intrusion Detection • Camera Tampering |
Alarm Linkage | • Memory Card Video Recording • Upload to FTP Server • Push Notifications • Active Defence-Sound Alarm • Active Defence-Light Alarm • Email Alarm |

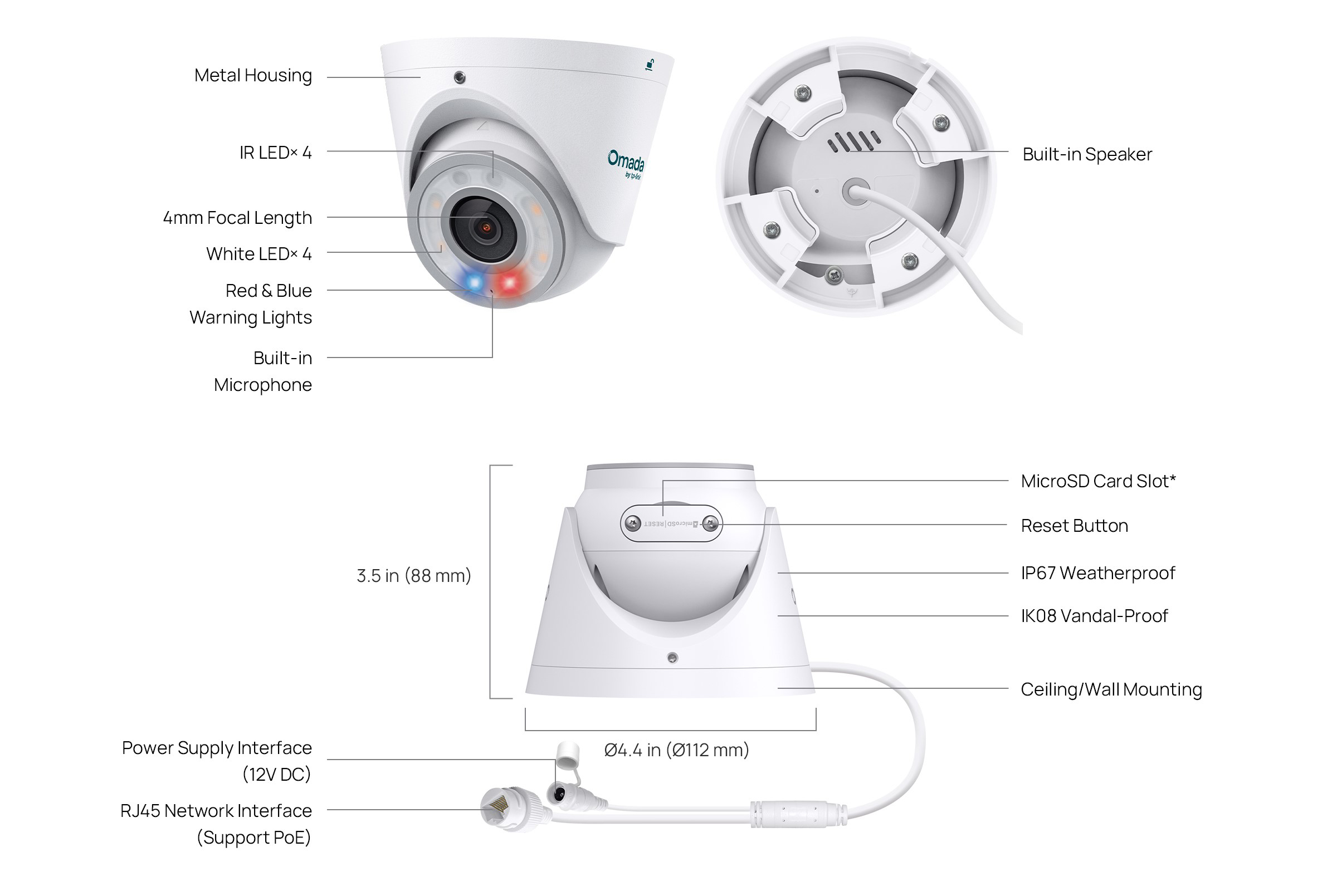

INTERFACES |
|
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Reset Button | Yes |
Power | DC Power Port |
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* |
Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
Built-in Speaker | Yes |
GENERAL |
|
Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
OperatingHumidity | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |
Package Content | • Omada Network Camera • Waterproof Cable Attachments • Network Cable (3 ft/1 m) • Mounting Template • Mounting Accessories • Screwdriver • GNU General Public License Notice • Installation Guide • Surveillance Sticker |
Material | Metal |
Net Weight | 0.5 kg |
Power Supply | DC • 12V DC ± 5%, Max. 12 W, 5.5 mm Coaxial Power Plug • Recommended Power Supply: T120100-2C1 (for EU Regions) PoE • PoE: 802.3af/at, Max. 12.5 W ErP Information • Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 2.7 W |
Protection | • IP67 Weatherproof • IK08 Vandal Proof |
Product Dimensions (L x W x H) | 4.4 × 4.4 × 3.5 in (112 × 112 × 88mm) |
Certifications | CE, NTRA, FCC, IP67, IK08, VCCI, BSMI, ONVIF |
