Omada App

Yes

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Require the use of an Omada controller.

Email Alerts

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Yes

SSH

Yes

Web-based Management

Yes

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

HARDWARE FEATURES

Interface

1× Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE)

Button

Reset

Power Supply

• 802.3af PoE

• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included - For Dry Indoor Use Only)

Max. Power Consumption

10.5W

Dimensions ( W x D x H )

1.8 × 1.1 × 8.5 in (46 × 26.7 × 214.9 mm)

(without antenna & mounting kit)

Antenna

2 Dual-Band Omni Antennas (External Detachable)

• 2.4 GHz: 2× 3 dBi

• 5 GHz: 2× 5 dBi

Weatherproof Enclosure

IP65

Mounting

Pole/Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/b/g/n/ac

Frequency

2.4GHz, 5GHz

Signal Rate

• 802.11ac: 6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80)

• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT 20/40)

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11b: 1, 2, 5.5, 11Mbps

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions

• Multiple SSIDs（Up to 16 SSIDs, 8 for each band）

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control （Adjust Transmit Power on dBm）

• QoS(WMM)

• MU-MIMO

• Seamless Roaming(802.11k/v/r)*

• Omada Mesh*

• Airtime Fairness

•  Beamforming

• Band Steering

• Load Balance

•  Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

*Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Please go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.

Wireless Security

• Captive Portal Authentication*

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

*Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Please go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.

Transmission Power

• CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)

• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)

OTHERS

Certification

CE, FCC, RoHS

Package Content

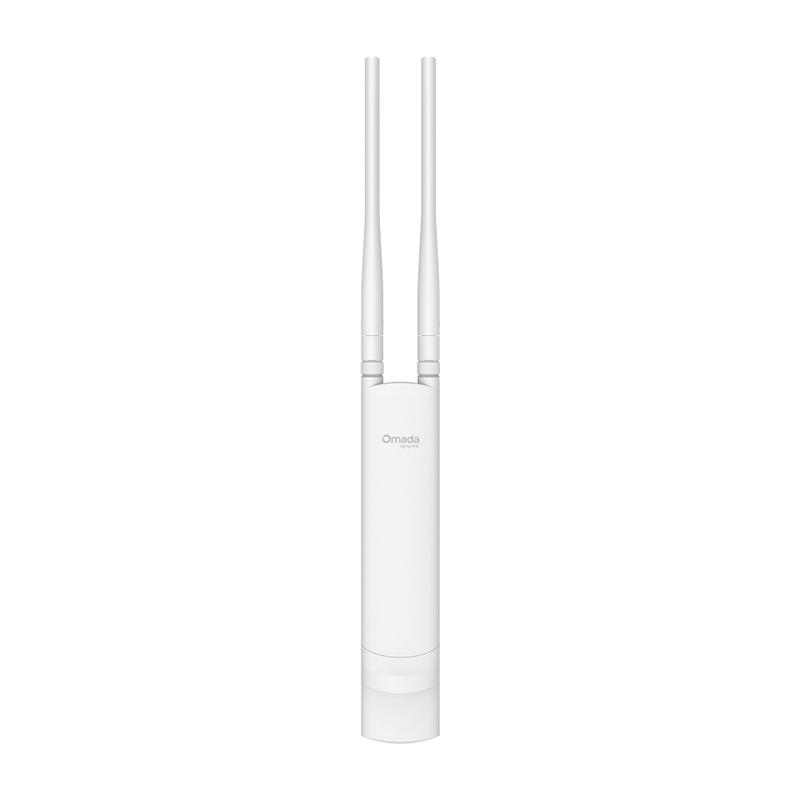

• Access Point EAP225-Outdoor

• Passive PoE Adapter

• Power Cord

• Mounting Kits

• Installation Guide

• Waterproof Ruber Insert

• Waterproof Antenna

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

• Operating Temperature: -30–70 ℃ (-22–158 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
