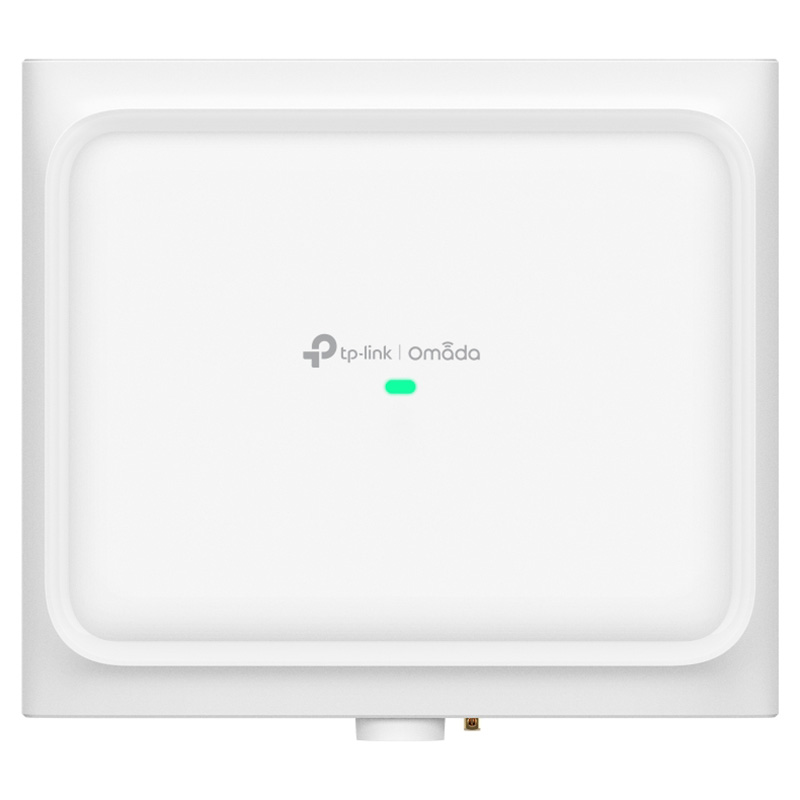

TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point (EAP650 D120-Outdoor)

TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point (EAP650 D120-Outdoor)
  • Wireless-Access-Points-WAP-TP-Link-Omada-AX3000-Indoor-Outdoor-WiFi-6-Access-Point-EAP650-D120-Outdoor-6
  • Wireless-Access-Points-WAP-TP-Link-Omada-AX3000-Indoor-Outdoor-WiFi-6-Access-Point-EAP650-D120-Outdoor-3
  • Wireless-Access-Points-WAP-TP-Link-Omada-AX3000-Indoor-Outdoor-WiFi-6-Access-Point-EAP650-D120-Outdoor-4
$229.0 Question Mark
Was: $249.0  WAS Tips    Save $20.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 58hrs and 19mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point (EAP650 D120-Outdoor)
  • Model Number:
    EAP650 D120-Outdoor
  • Brand:
  • Warranty Period:
    3 Year

Description

Wireless-Access-Points-WAP-TP-Link-Omada-AX3000-Indoor-Outdoor-WiFi-6-Access-Point-EAP650-D120-Outdoor-2



SPECIFICATIONS:

HARDWARE FEATURES


Interface

1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE)

Button

Reset

Power Supply

• 802.3at PoE

• 48V Passive PoE

Max. Power Consumption

• EU: 12.5W (802.3at PoE or Passive PoE)

• US: 14.7W (802.3at PoE or Passive PoE)

Dimensions ( W x D x H )

9.1 × 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)

Antenna

Built-in Directional Antennas:

• 2.4 GHz: 2× 8 dBi

• 5 GHz: 2× 10 dBi

Beamwidth: 120° Horizontal; 30° Vertical

Bluetooth

Yes

Weatherproof Enclosure

IP68

Mounting

Optional bracket accessory APM-110:

Supports vertical ±180°, horizontal ±45° adjustment

Optional bracket accessory APM-100:

Supports vertical ±45°, horizontal ±45° adjustment



Note: Optional bracket accessories need to be purchased separately

WIRELESS FEATURES


Coverage

• 2.4 GHz: 200+ m*

• 5 GHz: 500+ m*

Concurrent Clients

250+**

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax

Frequency

2.4 GHz, 5 GHz

Signal Rate

574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)

Wireless Functions

• 1024-QAM

• DL/UL OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 on each band)

• Enable/Disable Wireless Radio

• Enable/Disable SSID Broadcast

• Guest Network

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS (WMM)

• 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO

• Omada Mesh§

• Seamless Roaming(802.11k/v/r)§

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• RADIUS Accounting

• MAC Authentication

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics

• Static IP/Dynamic IP

Wireless Security

• Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);

• FCC: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz)

MANAGEMENT FEATURES


Omada App

Yes

Restore & Backup

Yes

NTP

Yes

Centralized Management

• Omada Hardware Controller

• Omada Software Controller

• Omada Cloud-based Controller

• Omada APP

Cloud Access

Yes, through

• Omada Hardware Controller

• Omada Software Controller

• Omada Cloud-based Controller

• Omada APP

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Yes

SSH

Yes

Web-based Management

Yes

Multi-site Management

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS


Certification

CE, FCC, RoHS

Package Content

• Access Point EAP650 D120-Outdoor

• Mounting Kits

• Installation Guide

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

• Operating Temperature: -30–70 ℃ (-22–158 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
