HARDWARE FEATURES |
|
Interface | 1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE) |
Button | Reset |
Power Supply | • 802.3at PoE • 48V Passive PoE |
Max. Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE) |
Dimensions ( W x D x H ) | 8.2 × 2.3 × 9.1 in (207.5 × 58 × 230 mm) |
Antenna | Built-in Directional Antennas: • 2.4 GHz: 2× 12 dBi • 5 GHz: 2× 15 dBi Beamwidth: 30° Horizontal; 30° Vertical |
Bluetooth | Yes |
Weatherproof Enclosure | IP68 |
Mounting | Wall/Pole/Ceiling Mount |
WIRELESS FEATURES |
|
Concurrent Clients | 250+** |
Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
Frequency | 2.4 GHz, 5 GHz |
Signal Rate | 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)* * Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition. |
Wireless Functions | • 1024-QAM • DL/UL OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 on each band) • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO • Omada Mesh* • Seamless Roaming(802.11k/v/r)§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule • Wireless Statistics • Static IP/Dynamic IP * Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of an Omada controller. |
Wireless Security | • Captive Portal Authentication* • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise * Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of an Omada controller. |
Transmission Power | • EU: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP); • US: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz) |
MANAGEMENT FEATURES |
|
Omada App | Yes |
Restore & Backup | Yes |
NTP | Yes |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
Cloud Access | Yes. Require the use of an Omada controller. |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c, v3 |
System Logging Local/Remote Syslog | Yes |
SSH | Yes |
Web-based Management | Yes |
Multi-site Management | Yes |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
OTHERS |
|
Certification | CE, FCC, RoHS |

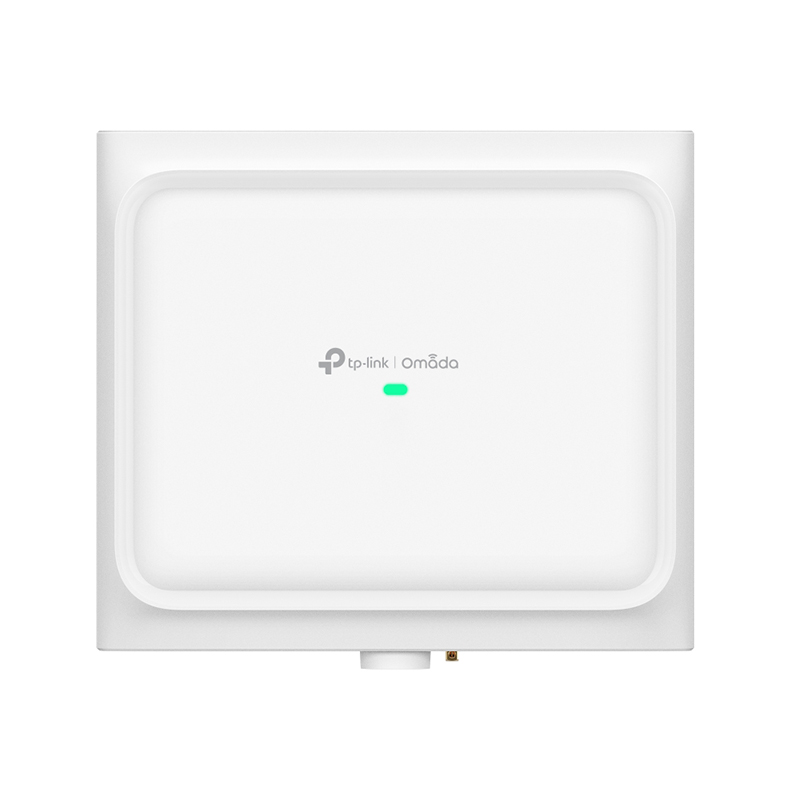

Package Content | • Access Point EAP650 D30-Outdoor • Mounting Kits • Installation Guide |
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
Environment | • Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Notes | *Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors. **The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections. |
