OVERVIEW |
|
Built-In Omada Applications | Network Application |
Managed Omada Devices | Recommended for up to 30 devices* * Controller and management features may vary depending on connected Omada devices, software versions, and deployment modes. The stated management capacity is based on laboratory testing. Actual management capacity and performance may vary depending on deployment and network conditions. |
Client Capacity | Recommended for up to 300 connected clients* * Controller and management features may vary depending on connected Omada devices, software versions, and deployment modes. The stated management capacity is based on laboratory testing. Actual management capacity and performance may vary depending on deployment and network conditions. |
Interface | • 1× 2.5G RJ45 WAN port • 4× Gigabit RJ45 LAN/WAN ports • Up to 4 simultaneous WAN ports |
IPS Throughput | 2,183 Mbps* * The value is calculated based on laboratory testing with 1 WAN port and 3 LAN ports. Performance is subject to traffic conditions, enabled features, and network environment. |
Site-to-Site VPN Throughput | 1,023 Mbps* * Performance data is based on IPsec VPN. |
Management | Cloud, local, and Omada App management |
Mounting | • Desktop • Wall-mount (magnetic-mount plate sold separately) • Rack-mount (rackmount kit sold separately) |
Dimensions | 5.12 × 3.74 × 1.18 in (130 × 95 × 30 mm) |
BUILT-IN OMADA CONTROLLER |
|
Cloud Access | √ |
Local Management | √ |
Omada App | √ |
Multi-Site Management | Via the Omada Cloud Management Platform |
Restore & Backup | √ |
Automatic Device Discovery | √ |
Network Topology | √ |
Dashboard | √ |
Device List / Client List | √ |
Logs / Alerts / Events | √ |
Batch Firmware Upgrade | √ |
Health Monitoring | √ |
Internet Activity | √ |
Captive Portal | √ |
RADIUS / LDAP Authentication | √ |
802.1X Authentication | √ |
OUI-Based VLAN | √ |
Diagnostics Tools | Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring |
SNMP | v1/v2c/v3 |
SECURITY |
|
IDS/IPS | √ |
DPI | √ |
Application-Based ACL | √ |
Content Filtering | √ |
Ad Blocker | √ |
Safe Search | √ |
DNS Security | √ |
Firewall | √ |
Attack Defense | √ |
ARP Inspection | √ |
VPN & SD-WAN |
|
Omada LightLink VPN | √ |
Site-to-Site VPN | WireGuard VPN / IPsec VPN |
VPN Server | WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN |
VPN Client | WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN |
SD-WAN | Full Mesh Mode |
VPN Throughput | • Omada LightLink VPN: 527 Mbps • IPsec VPN: 1,023 Mbps • WireGuard VPN: 605 Mbps • OpenVPN: 223 Mbps • L2TP VPN: 892 Mbps • PPTP VPN: 193 Mbps • SSL VPN: 250 Mbps |
NETWORKING |
|
WAN Connection | Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite |
Multi-WAN Failover & Load Balancing | √ |
DHCP Server | √ |
VLAN Segmentation | √ |
Bandwidth Control | √ |
QoS | √ |
Static Routing | √ |
Policy Routing | √ |
NAT | Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT |
Dynamic DNS | TP-Link DDNS, 3rd-party DDNS, custom DDNS |
IPv6 | Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode |
Bonjour / mDNS | √ |
IGMP v2/v3 Proxy | √ |
HARDWARE |
|

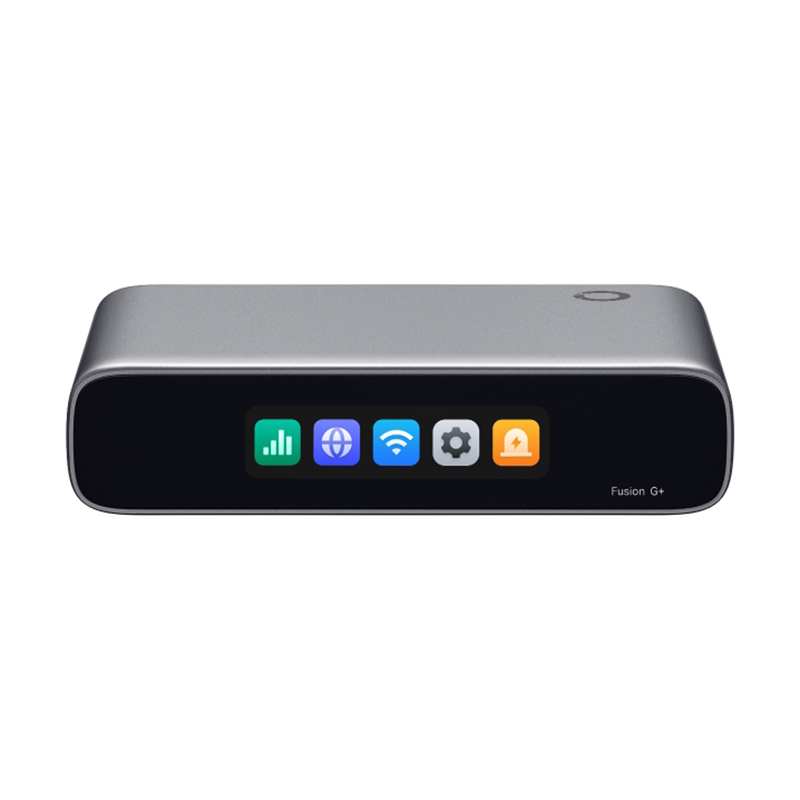

Touchscreen | 2.51-inch color LCM touchscreen |
Button | Reset button |
Memory | 2 GB DDR4 |
Power Supply | USB-C power adapter, 100–240 V AC, 50/60 Hz input, 5 V DC / 3 A output |
Max Power Consumption | 6.18 W, with power adapter |
Enclosure | Polycarbonate |
LED | Ethernet |
Fan | Fanless |
Net Weight | 0.77 lb (351 g) |
Surge Protection | 4 kV surge protection |
ESD Protection | ±8 kV (Air), ±4 kV (Contact) |
Onboarding | Bluetooth or Ethernet |
Certifications | CE, FCC, RoHS |
Environment | • Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C) • Storage Temperature: -22 °F to 158 °F (-30 °C to 70 °C) • Operating Humidity: 10% to 90% RH, non-condensing • Storage Humidity: 5% to 90% RH, non-condensing |
