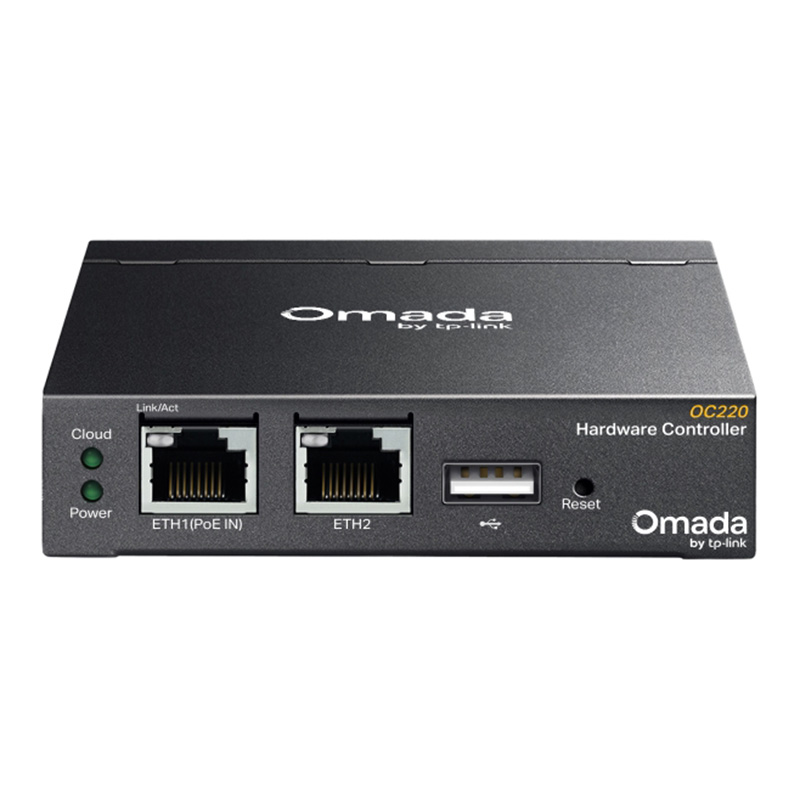

TP-Link Omada Hardware Controller (OC220)

Interface

• 2× Gigabit Ethernet Ports

• 1× USB 2.0 Port

• 1× Micro USB Port

Power Supply

• 802.3af PoE

• Micro USB（DC 5V/Minimum 1A）

Dimensions ( W x D x H )

3.9×3.9×1.0 in (100×98×25 mm)

MANAGEMENT FEATURES

Omada App

Yes

Centralized Management

• 100 Omada access points

• 10 Omada gateways

• A maximum of 20 Omada switches*

• A maximum of two select DeltaStream GPON OLTs*

Note: Please refer to www.omadanetworks.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC220

*The number of supported Omada switches decreases by five for each DeltaStream GPON OLT added. The DeltaStream GPON OLTs supported by the controller are DS-P7001-04 and DS-P7001-08.

Cloud Access

Yes

L3 Management

Yes

Multi-site Management

Yes

Management Features

• Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

OTHERS

Certification

CE, FCC, RoHS

Package Content

• Omada Hardware Controller OC220

• Quick Installation Guide

• RJ45 Ethernet Cable

System Requirements

Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux

Environment

• Operating Temperature: -5–50 ℃ (23–122 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
