Image Sensor

1/2.8" Progressive Scan CMOS Sensor

Lens

Focal Length: 4 mm

Aperture: F1.6

Field of View: 100.6° (Diagonal), 84.4°(Horizontal), 44.3°(Vertical)

Night Vision

850 nm IR LED

Color Night Vision

Lighting

2× Built-in Spotlights

Interface & Button

1× Power Button

1× RESET Button

1× MicroSD Card Slot (Up to 512GB)

1× Nano SIM Card Slot

Pan/Tilt Range

Pan Mechanical Range: 340° (360° Pan Coverage)

Tilt Mechanical Range: 90° (134° Tilt Coverage)

SOLAR PANEL

Connection Capacity

A solar panel can only connect to one camera.

Output Port

Type-C

VIDEO & AUDIO

Maximum Resolution

2K 3MP (2304 × 1296 px)

Frame Rate

15/20 fps

Digital Zoom

10.8

Live View

YES

Image Enhancement

3D DNR

WDR

Audio Input & Output

Built-in Microphone and Speaker

Audio Communication

Two-Way Audio with Noise Cancellation

Siren Volume

98.6 dBA (Level measured at 10 cm distance)

67.3 dBA (Level measured at 300 cm distance)

STORAGE

Local Storage

MicroSD Card Slot on Camera (Up to 512 GB, microSD Card Not Included)

Cloud Storage

Tapo Care Cloud Storage Services (Subscription Required)

DETECTION AND NOTIFICATIONS

Sensor Single

Motion Sensor

AI Detection

Motion Detection

Person Detection

Pet Detection

Vehicle Detection

Activity Zones

Yes

Output Notification

System Notification

System Notification with Snapshot (Tapo Care Services)

System Notification with Clips (Tapo Care Services)

NETWORK

Network Connectivity

Connect via 4G

4G

Frequency

LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41

SECURITY

Security

SSL/TLS

POWER

Power Source

6,700mAh Built-in Rechargeable Lithium-ion Battery

Solar Panel: Tapo A201(Included)

5V DC Power Adapter (Not included)

Input Voltage

Adapter Input: 100-240 V, 50/60

Output Voltage

Adapter Output: 5.0 V, 1.0 A (Not Included)

Solar Panel Max Charging Voltage: 5.2 V

Solar Panel Max Charging Power: 2.5 W

GENERAL

Smart Integration

Google Assistant, Amazon Alexa

Weather Resistance

IP65 for both camera and solar panel

System Requirements

Tapo App: iOS 13.0 or higher, Android 7.0 or higher

Mounting Options

Ceiling-Mounted

Wall-Mounted

Pole-Mounted (Loops Required But Not Included)

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Storage Temperature

-40°C to 60°C (-40°F to 140°F)

Operating Humidity

10%~90% RH, Non-condensing

Storage Humidity

0%~90% RH, Non-condensing

Charging Temperature

0°C to 45°C (32°F to 113°F)

Dimensions ( W x D x H )

Camera Dimensions: 130.88 × 116.09 × 84.06 mm (5.15 × 4.57 × 3.31 in.)

Solar Panel Dimensions: 173.4 x 120.4 x 15.7 mm (6.83 x 4.74 x 0.618 in.)

Package Content

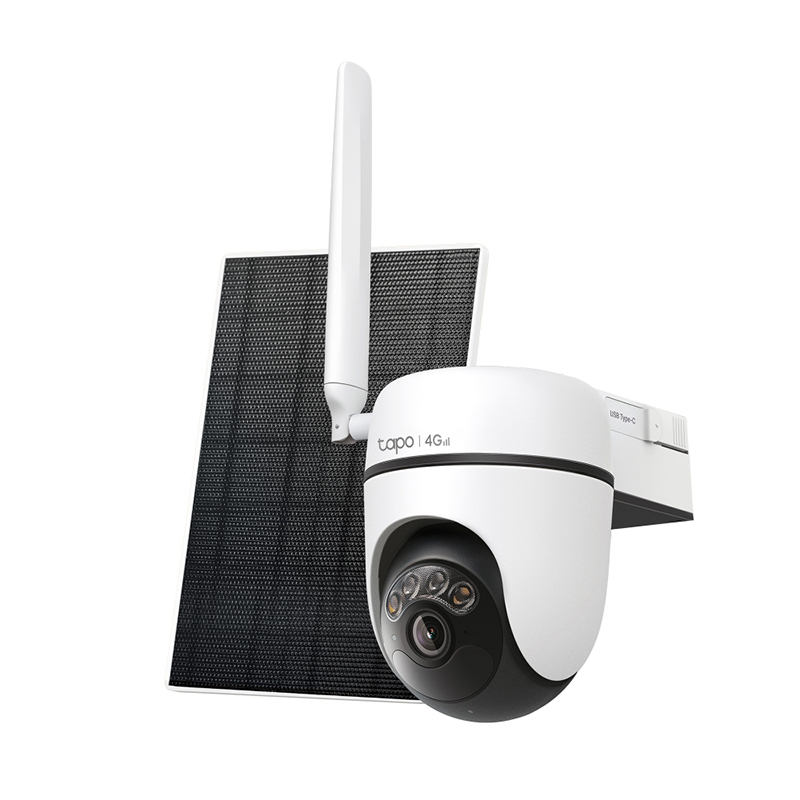

TC90G Camera

Tapo A201 Solar Panel × 1

Tapo A201 Solar Panel Bracket × 1

Base Cover × 1

Detachable Antenna × 1

USB Adapter Cable × 1

Extension Wire × 1

Mounting Screws and Anchors

Mounting Template Stickers × 2

Quick Start Guide

Certifications

CE, NTRA, RCM, IP65
