IP Video Input

8-Channel

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

60 Mbps

HDMI Output Resolution

1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output Resolution

1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode

HDMI/VGA Simultaneous Output

Multi-View Display

1/4/6/8

DECODING

Audio Compression

G.711A/G.711U/G.726

Video Compression

H.265+/H.265/ H.264+/H.264

Record Resolution

8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous Playback

8-Channel*

* The number of simultaneously playable channels may be fewer than eight, or none, if the total resolution exceeds 16MP.

Capability

• 25fps:

2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

• 30fps:

4-ch @ 3MP, 2-ch @ 5MP

RECORD MANAGEMENT

Record Mode

• Manual Recording

• Scheduling Recording

• Motion Detection Recording

Playback Mode

• Instant Playback

• Regular Playback

• Tag Playback

• Event Playback

Backup Mode

• Regular Backup

• Video Clip Backup

Playback Function

• Play

• Pause

• Stop

• Fast Forward

• Fast Backward

• Play By Frame

• Video Clip

• Export Clip

• Lock Recording

• Audio On/Off

NETWORK

Protocol

UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

Mobile Phone Access

Android, iOS

Web Browser

Chrome (57+), Firefox (52+), Edge (91+)

Interoperability

ONVIF Profile S/T/G, CGI

WIRELESS

Standards and Protocols

IEEE 802.11b/g/n

WiFi Channels

• UN: 1-13

• US: 1-11

Wireless Name

• SSID Configuration

• Radio

Network Switch

Yes

Frequency

2.4 GHz

Radio Bandwidth

• Auto: Yes

• 20M: Yes

• 40M: Yes

Wireless Rate

300Mbps(802.11n), 2 × 2 MIMO

Wireless Security

WPA-PSK/WPA2-PSK

EXTERNAL INTERFACE

Network Interface

• 1× RJ-45 10/100 Mbps Self-Adaptive WAN/LAN Ethernet Interface

• 1× RJ-45 10/100 Mbps Self-Adaptive LAN Ethernet Interface

USB Interface

2× USB 2.0

Audio Interface

1-ch RCA Input; 1-ch RCA Output

Power

1× DC Jack

Reset Button

1

Speaker

1; Real-time Audio Output without Needing Peripherals.

HDMI

1

VGA

1

HARD DISK

SATA

1 SATA Interface

Capacity

Up to 10 TB Capacity for Each HDD**

**HDD is not included.

ALARM

General Alarm

• Motion Detection

• Video Tampering

• Scene Change Detection

• Line-Crossing Detection

• Intrusion Detection

• Region Entering Detection

• Region Exiting Detection

• Loitering Detection

• Object Abandoned/Removal Detection

• Vehicle Detection

• Human Detection

• Abnormal Sound Detection

• Smart Frame

Note: The alarm function requires the use of a camera.

Anomaly Alarm

• Video Loss

• Offline and IP Conflict

• Disk Exception

• Login Exception

Note: The alarm function requires the use of a camera.

Alarm Linkage

• Recording

• White Light Alarm

• Log

• Audible Alarm

Note: The alarm function requires the use of a camera.

GENERAL

Storage Temperature

-40–70 °C

Storage Humidity

10%~90% RH Non-Condensing

Package Content

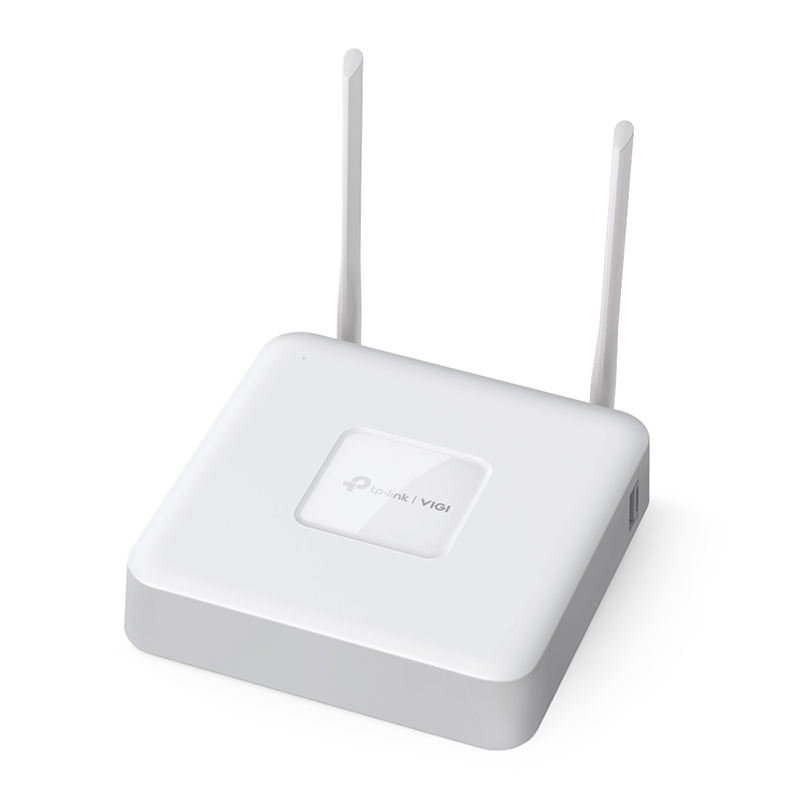

• VIGI Network Video Recorder

• Power Adapter

• HDD Screws

• Mouse

• Quick Installation Guide

Working Temperature

• NVR: -10–55 °C

• Power Adapter: 0–40 °C

Working Humidity

10%~90% RH Non-Condensing

Dimensions( W X D X H )

Excluding Antennas: 7.9 × 7.9 × 1.7 in (200.3 × 200.3 × 43 mm)

External Power Supply

DC 12V/2A

Net Weight

0.5 kg

Gross Weight

1.0 kg

Max. Power Consumption

• 5.7 W (Without Disk)

• 16.3 W (Without Disk)

Antenna

• Quantity: 2

• Type: 2.4GHz Welded Non-detachable Antenna

• Gain: 5.3dBi

• Radio Frequency Transmit Power: 16dBm

• Length: 198.8 mm for Long Side and 189 mm for Short Side

Certifications

BSMI, CE, HDMI, JRF, KC, NCC, NTRA, VCCI
