Image Sensor

1/2.7” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Minimum Illumination

0.005 Lux; 0 Lux with IR/White light

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

LENS

Type

Fixed Focal Lens

Focal Length

2.8mm

Aperture

F1.6

FOV

Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°

Lens Mount

M12*P 0.5

DORI Distance

Detect: 64 m (210 ft)

Observe: 27 m (89 ft)

Recognize: 13 m (43 ft)

Identify: 6 m (20 ft)

ANGLE ADJUSTMENT (MANUAL)

Range

Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

ILLUMINATOR

IR LED

• Quantity: 2

• Range: 30m

• Wavelength: 850nm

White LED

• Quantity: 2

• Range: 30m

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution

2880 X 1620

Main Stream

• Frame Rate：

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:

2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,

1280x720

• Note:

If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream

• Frame Rate：

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:

704x576,640x480, 352x288, 320x240

• Note:

If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control

CBR, VBR

Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264

H.264 Type

High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile*

H.265+

Main Stream Supported*

Video Bit Rate

• Main Stream: 256 Kbps to 6 Mbps

• Sub-Stream: 64 Kbps to 512 Kbps


Image Settings

• Mirror

• Brightness

• Contrast

• Saturation

• Sharpness

• Exposure

• WDR

• White Balance

• Prevent Overexposure to Infrared Light

• HLC Adjustable by Client Software

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

120 dB

Note: When People & Vehicle Analytics is enabled, only DWDR is supported.

SNR

≥ 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

AUDIO

Audio Communication

Two-Way Audio

Audio Input

Yes

Audio Output

Yes

Audio Compression

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)

NETWORK

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP,   SSL/TLS

ONVIF

Yes

API

Open Network Video Interface (Profile S)

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Client

VIGI App, VIGI Security Manager, Web UI, VIGI VMS

Web Browser

• Google Chrome® 57 and above

• Firefox® 52 and above

• Safari® 11 and above

• Microsoft® Edge 91 and above

Cloud

Yes

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT

Smart Event

• Human & Vehicle Classification

• Intrusion Detection

• Line-Crossing Detection

• Region Entering Detection

• Region Exiting Detection

• Object Abandoned Detection

• Object Removal Detection

• Loitering Detection

• Smart Frame

• People Detection

• Vehicle Detection

Basic Event

• Motion Detection

• Video Tampering Detection

• Exception ( Illegal Login)

• Scene Change Detection

Alarm Linkage

• Memory Card Video Recording

• Message Push

• Audible Warning

• White Light Flashing

Linkage Method

N/A

Output Notification

Message Push

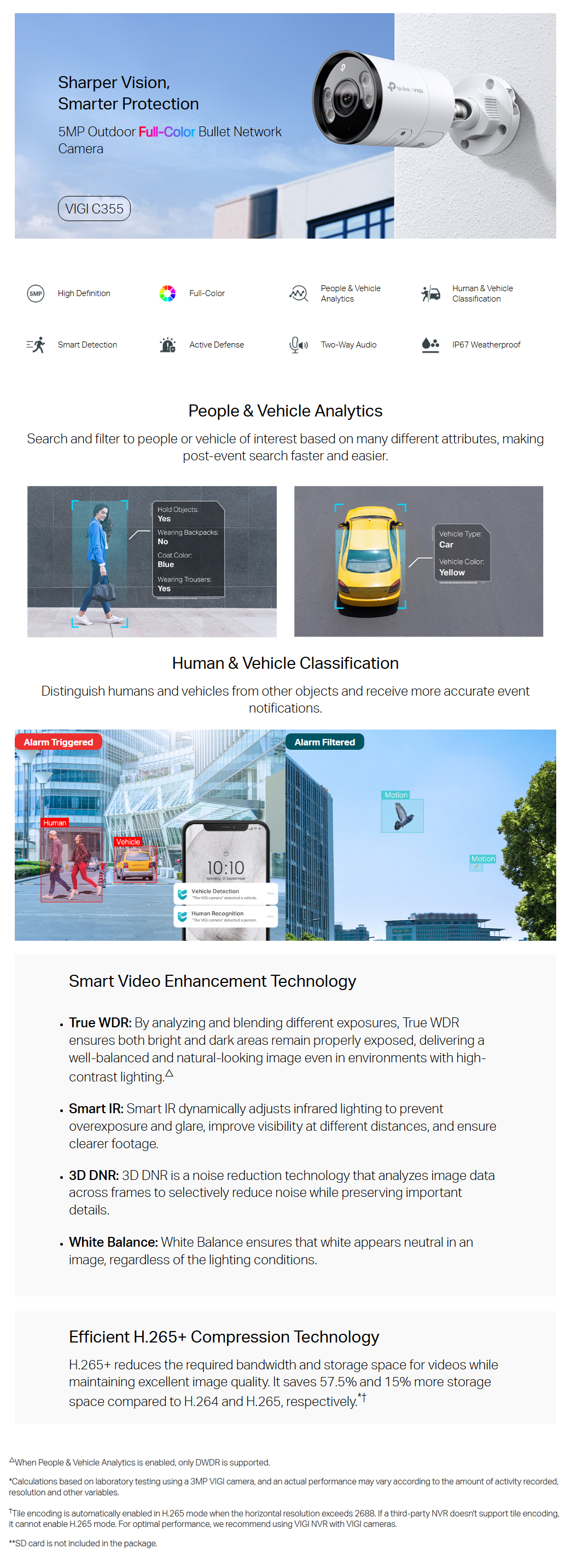

DEEP LEARNING FUNCTION

People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

INTERFACES

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Alarm

N/A

Reset Button

Yes

Power

DC Power Port

On-board Storage

Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**

Built-in Microphone

Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

Built-in Speaker

Yes

Audio

N/A

GENERAL

Operating Temperature

-30–60 °C

Storage Temperature

-40–60 °C

Operating Humidity

95% or Less (Non-Condensing)

Storage Humidity

95% or Less (Non-Condensing)

Package Content

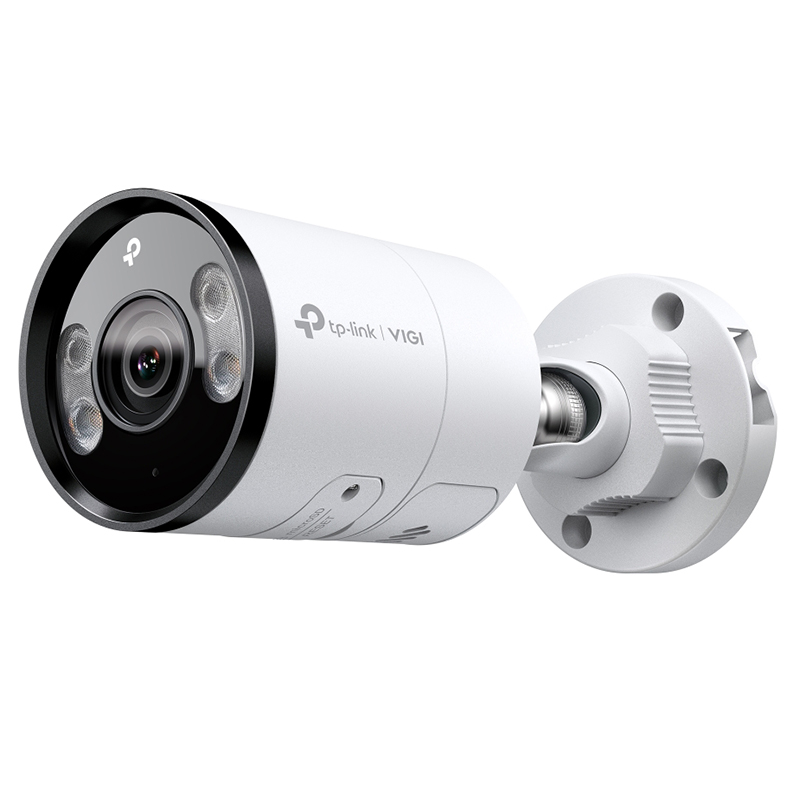

• VIGI Network Camera

• Quick Start Guide

• Waterproof Cable Attachments

• Mounting Accessories

Material

Metal

Net Weight

0.525 Kg

Power Supply

• 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug

• PoE: 802.3af/at, class 0, Max. 10.7 W

Protection

IP67

Product Dimensions (L x W x H)

74 × 184 × 74 mm

Certifications

CE, NTRA, VCCI, KC, BSMI, FCC, IC
