CAMERA |
|
Image Sensor | 1/2.7” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Unified/ Scheduled/ Auto |
LENS |
|
Type | Fixed Focal Lens |
Focal Length | 6mm |
Aperture | F1.6 |
FOV | Horizontal FOV: 57.3°, Vertical FOV: 31.3°, Diagonal FOV: 67.2° |
Lens Mount | M12*P 0.5 |
DORI Distance | Detect: 120 m (394 ft) Observe: 50 m (164 ft) Recognize: 24 m (79 ft) Identify: 12 m (39 ft) |
ANGLE ADJUSTMENT (MANUAL) |
|
Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
ILLUMINATOR |
|
IR LED | • Quantity: 2 • Range: 30m • Wavelength: 850nm |
White LED | • Quantity: 2 • Range: 30m |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO |
|
Max. Resolution | 2880 X 1620 |
Main Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Sub-Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 704x576,640x480, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Bit Rate Control | CBR, VBR |
Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
H.264 Type | High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile* |
H.265+ | Main Stream Supported* |
Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
IMAGE |
|
Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
Wide Dynamic Range | 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
ROI | 1 Region |
OSD Setting | Yes |
AUDIO |
|
Audio Communication | Two-Way Audio |
Audio Input | Yes |
Audio Output | Yes |
Audio Compression | Yes |
Audio Sampling Rate | 8KHz |
Environment Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK |
|
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
ONVIF | Yes |
API | Open Network Video Interface (Profile S) |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS |
Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
Cloud | Yes |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
ALARM AND EVENT MANAGEMENT |
|
Smart Event | • Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • Smart Frame • People Detection • Vehicle Detection |
Basic Event | • Motion Detection • Video Tampering Detection • Exception ( Illegal Login) • Scene Change Detection |
Alarm Linkage | • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing |
Linkage Method | N/A |
Output Notification | Message Push |
DEEP LEARNING FUNCTION |
|

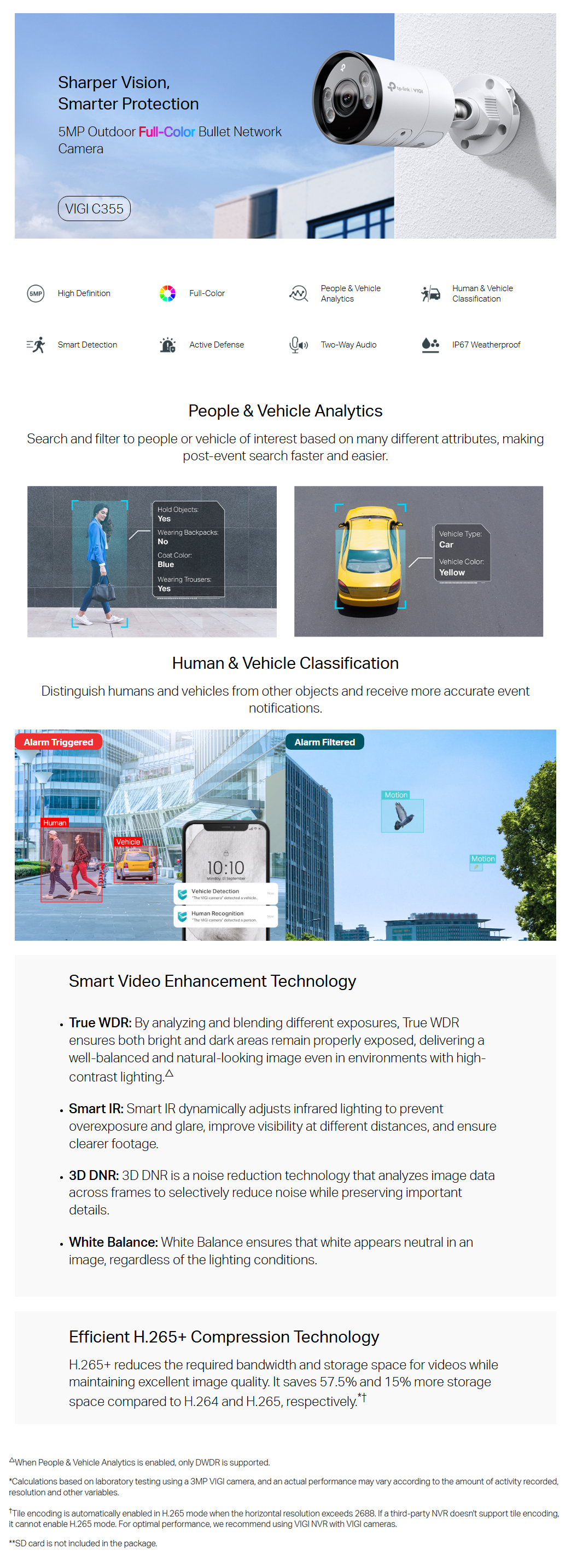

People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
INTERFACES |
|
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Alarm | N/A |
Reset Button | Yes |
Power | DC Power Port |
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** |
Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
Built-in Speaker | Yes |
Audio | N/A |
GENERAL |
|
Operating Temperature | -30–60 °C |
Storage Temperature | -40–60 °C |
Operating Humidity | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |
Package Content | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
Material | Metal |
Net Weight | 0.525 Kg |
Power Supply | • 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 10.7 W |
Protection | IP67 |
Product Dimensions (L x W x H) | 74 × 184 × 74 mm |
Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
