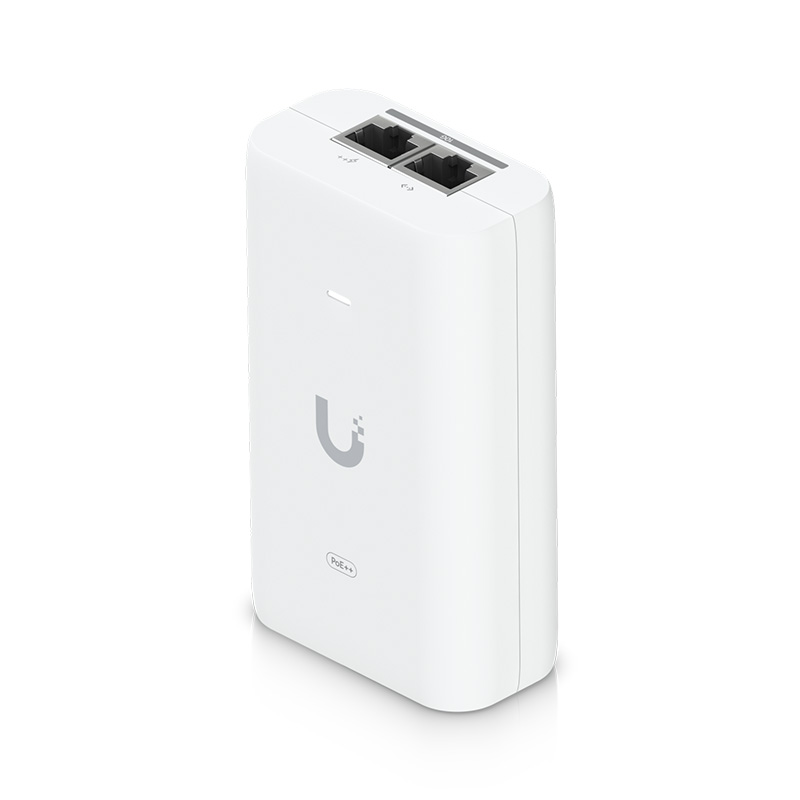

Ubiquiti 10G PoE++ 60W Adapter (UACC-PoE++-10G)

Ubiquiti 10G PoE++ 60W Adapter (UACC-PoE++-10G)
  • Networking-Accessories-Ubiquiti-10G-PoE-60W-Adapter-UACC-PoE-10G-6
  • Networking-Accessories-Ubiquiti-10G-PoE-60W-Adapter-UACC-PoE-10G-2
  • Networking-Accessories-Ubiquiti-10G-PoE-60W-Adapter-UACC-PoE-10G-1
  • Networking-Accessories-Ubiquiti-10G-PoE-60W-Adapter-UACC-PoE-10G-3
  • Networking-Accessories-Ubiquiti-10G-PoE-60W-Adapter-UACC-PoE-10G-4
$78.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Same Day Dispatch   Question Mark

Order within 6hrs and 20mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Ubiquiti 10G PoE++ 60W Adapter (UACC-PoE++-10G)
  • Model Number:
    UACC-PoE++-10G
  • Brand:
  • Warranty Period:
    1 Year

Description

SPECIFICATIONS:

Dimensions

106 x 63 x 34 mm

(4.2 x 2.5 x 1.3")

Weight

210 g (7.4 oz)

Output Voltage

54V DC at 1.12A

Rated Voltage

100—240V AC at 50/60Hz

Gigabit LAN Port

✓

4-pair Powering

Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

Clamping Protection

11V Data, 60V power

Data In / PoE

RJ45 Shielded Socket

Input Current

1.5A Max.

Inrush Current

<150A peak at 230V AC

Efficiency

>88%

Switching Frequency

65 kHz

Output Ripple

1% Max.

Line Regulation

≤ 2%

Load Regulation

≤ 5%

Max. PoE+ Wattage per Port by PSE

60W

Max. Surge Discharge

1500A (8/20 μs) power

Peak Pulse Current

36A (10/1000 μs) data

Response Time

<1 ns

Shunt Capacitance

<5 pF data

Surge Protection

Difference and common mode

Ambient Storage Temperature

-30 to 70°C (-22 to 158° F)

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

10 to 95% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
