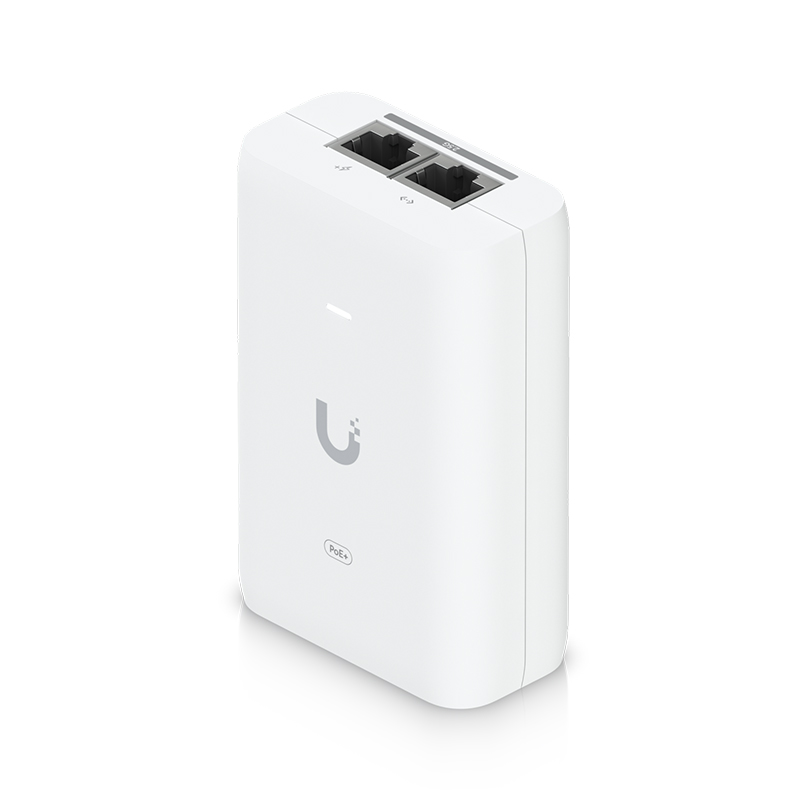

Ubiquiti 2.5G PoE+ 30W PoE Adapter (UACC-PoE+-2.5G)

Ubiquiti 2.5G PoE+ 30W PoE Adapter (UACC-PoE+-2.5G)
  • Networking-Accessories-Ubiquiti-2-5G-PoE-30W-PoE-Adapter-UACC-PoE-2-5G-6
  • Networking-Accessories-Ubiquiti-2-5G-PoE-30W-PoE-Adapter-UACC-PoE-2-5G-2
  • Networking-Accessories-Ubiquiti-2-5G-PoE-30W-PoE-Adapter-UACC-PoE-2-5G-1
  • Networking-Accessories-Ubiquiti-2-5G-PoE-30W-PoE-Adapter-UACC-PoE-2-5G-3
  • Networking-Accessories-Ubiquiti-2-5G-PoE-30W-PoE-Adapter-UACC-PoE-2-5G-4
$40.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Same Day Dispatch   Question Mark

Order within 6hrs and 20mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Ubiquiti 2.5G PoE+ 30W PoE Adapter (UACC-PoE+-2.5G)
  • Model Number:
    UACC-PoE+-2.5G
  • Brand:
  • Warranty Period:
    1 Year

Description

SPECIFICATIONS:

Dimensions

93 x 62 x 35 mm (3.7 x 2.4 x 1.4")

Weight

156 g (5.5 oz)

Output Voltage

48V DC @ 0.65A

Rated Voltage

100—240V AC @ 50/60Hz

Gigabit LAN Port

✓

2-pair Powering

Pins 4, 5 (+) and 7, 8 (-)

Clamping Protection

11V Data, 60V power

Data In / PoE

RJ45 Shielded Socket

Input Current

0.75A Max.

Inrush Current

<150A peak @ 230V AC

Efficiency

>87%

Switching Frequency

65 kHz Max.

Output Ripple

1% Max.

Line Regulation

≤ 1%

Load Regulation

≤ 3%

Max. Surge Discharge

1500A (8/20 μs) power

Peak Pulse Current

36A (10/1000 μs) data

Response Time

<1 ns

Shunt Capacitance

<5 pF data

Surge Protection

Difference and common mode

Ambient Storage Temperature

-30 to 70°C (-22 to 158° F)

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

10 to 95% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
