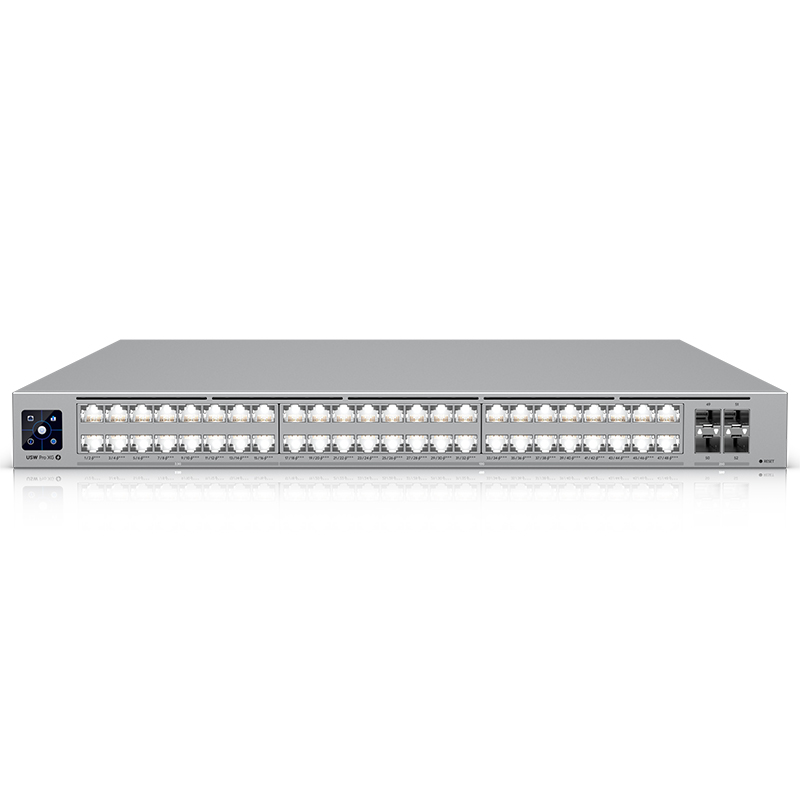

OVERVIEW |
|
Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
Port Layout | 2.5 GbE RJ45: 16 (All PoE+++) (2.5G/1G/100M/10M) 10 GbE RJ45: 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 25G SFP28: 4 (25G/10G/1G) |
Max. PoE Output | Up to PoE+++ |
Total PoE Availability | 200-240V AC: 1080W 100-120V AC: 972W |
Redundancy | DC Power Backup |
Layer 3 | âś“ |
Form Factor | Rack mount (1U) |
Etherlighting™ | ✓ |
PERFORMANCE |
|
Switching Capacity | 920 Gbps |
Total Non-Blocking Throughput | 460 Gbps |
Forwarding Rate | 684 Mpps |
Supported VLANs | 1,000 |
MAC Address Table Size | 128,000 |
L3 Table Size | ARP Entries: 128,000 IPv4 Routes: 256,000 |
Packet Buffer Size | 8 MB |
Access Lists | IPv4: 256 MAC: 256 |
LAYER 3 FEATURES |
|
DHCP Server (Local Networks) | âś“ |
DHCP Relay | âś“ |
Inter-VLAN Routing (Local Networks) | âś“ |
Static Routing (Local Networks) | âś“ |
LAYER 2 FEATURES |
|
LACP Port Aggregation | âś“ |
STP & RSTP | âś“ |
QoS (DSCP) | âś“ |
Pro AV Profiles
(Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | âś“ |
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | âś“ |
IGMP Snooping | âś“ |
802.1X Control | âś“ |
MAC-Based ACLs & Device Isolation | âś“ |
DHCP Snooping & Guarding | âś“ |
Egress Rate Limit | âś“ |
Flow Control | âś“ |
Storm Control | âś“ |
Multicast & Broadcast Rate Limiting | âś“ |
MAC Address Blocking | âś“ |
IP-Based ACLs & Network Isolation | âś“ |
MAC-Based Port Restriction | âś“ |
Port Isolation | âś“ |
Port Mirroring | âś“ |
Jumbo Frames | âś“ |
LLDP-MED | âś“ |
Voice VLAN | âś“ |
Loop Protection | âś“ |
HARDWARE |
|
PoE Ports | PoE+++: 48 |
Max. PoE Wattage per Port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W PoE+++: 90W |
Max. Power Consumption | 200W (Excluding PoE Output) 200-240V: 1,280W / 100-120V AC: 1,172W (Including PoE Output) |
Power Method | (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
Power Input Method | AC input |
Power Supply | AC/DC, internal, 1,350W |
Supported Voltage Range | 100—240V AC |
Management | Ethernet AR |
Weight | Without mounting brackets: 8.7 kg (15.4 lb) With mounting brackets: 8.8 kg (15.7 lb) |
Enclosure Material | SGCC steel |
Mount Material | SGCC steel |
Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
LCM Display | 1.3" touchscreen |
ESD Protection | Air: ± 30kV, contact: ± 20kV |
Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
Ambient Operating Humidity | 10 to 90% noncondensing |
Etherlighting™ | Ethernet: ✓ SFP28: ✓ |
LEDs | RPS: âś“ |
NDAA Compliant | âś“ |
Certifications | CE, FCC, IC |
SOFTWARE |
|
Application Requirements | UniFi Network Version 9.1.120 and later |
