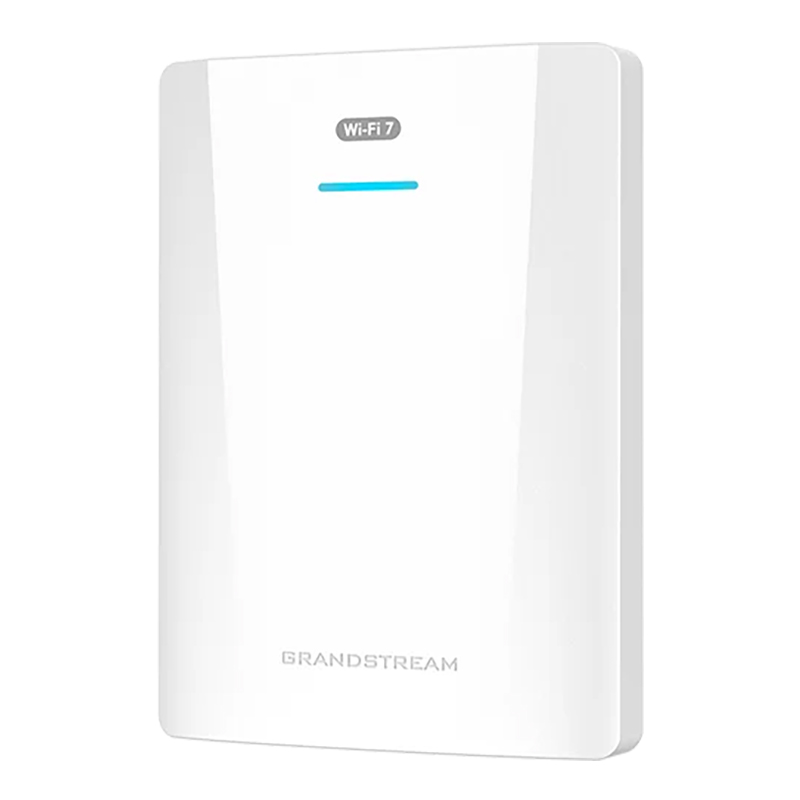

Grandstream GWM 802.11be IN-Wall Wi-Fi 7 Wireless Access Point
The GWN7670WM is a new generation enterprise-grade 802.11be IN-Wall Wi-Fi 7 access point, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks.
3.6Gbps aggregate wireless throughput, 2.5Gbps aggregate wired throughput Integrated Wi-Fi 7 & 2x2:2 MIMO with MLO, 4KQAM, MRU, Preamble Puncturing Technology Up to 175-meter coverage range Supports 256 concurrent Wi-Fi client devices Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device Self-power adaptation upon auto-detection of PoE+ Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
SPECIFICATIONS:
Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax/be | Antennas | 5 single frequency antennas 2.4GHz x 2, gain 3.0dBi 5GHz x 2, gain 4.0dBi BT gain 3.0dBi | Wi-Fi Data Rates | 5G: IEEE 802.11be: Up to 2882 Mbps IEEE 802.11ax: 7.3 Mbps to 2402 Mbps IEEE 802.11ac: 6.5 Mbps to 1732 Mbps IEEE 802.11n: 6.5 Mbps to 300 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G: IEEE 802.11be: Up to 688 Mbps IEEE 802.11ax: 7.3 Mbps to 574 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network | Frequency Bands | 2.4GHz Radio: 2400 - 2483.5 MHz 5GHz Radio: 5150 - 5895 MHz *Not all frequency bands can be used in all regions | Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20, 40, 80, and 160 MHz | Wi-Fi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device | MIMO | 2x2:2 2.4GHz 2x2:2 5GHz | Coverage Range | Up to 175 meters *Coverage range can vary based on environment | Maximum TX Power | 5G: 26dBm 2.4G: 26dBm *Maximum power varies by country, frequency band and MCS rate | Receiver Sensitivity | 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7; 802.11ac 20MHz: -67dBm @MCS8; 802.11ac: 40MHz:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9; 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @MCS11 MCS11;802.11ax 160MHz: -52dBm@ MCS11 802.11be 20MHz: -59dBm @MCS13; 802.11be 40MHz: -56dBm @MCS13; 802.11be 80MHz: -54dBm @MCS13; 802.11be 160MHz: -52dBm @MCS13; 2.4G 802.11b: -96dBm @1Mbps, -88dBm @11Mbps; 802.11g: -93dBm @6Mbps, -75dBm @54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11 802.11be 20MHz: -65dBm @MCS13; 802.11be 40MHz: -62dBm @MCS13 SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) | Concurrent Clients | 256 | Network Interfaces | 1x 2.5G Ethernet RJ45 port | Auxiliary Ports | 1x Reset Pinhole | Bluetooth® | Bluetooth Low Energy 5.3 | Mounting | Indoor wall mount, kits included | LEDs | 1 tri-color LED for device tracking and status indication | Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM | QoS | 802.11e/WMM, VLAN, TOS | Network Management | Embedded controller can manage up to 50 local GWN APs GDMS Networking offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs | Power and Green Energy Efficiency | PoE/PoE+ 802.3af/at; Maximum Power Consumption: 15.5W | Environmental | Operation: 0°C to 45°C Storage: -30°C to 60°C Humidity: 10% to 90% Non-condensing | Physical | Unit Dimension: 150mmx106mmx34.1mm; Unit Weight: 473g Entire Package Dimension: 193mmx138.5mmx54mm; Entire Package Weight: 600g | Package Content | GWN7670WM Wi-Fi 7 Wireless AP, Mounting Kits, Quick Start Guide | Compliance | FCC, CE, RCM, IC |
|
