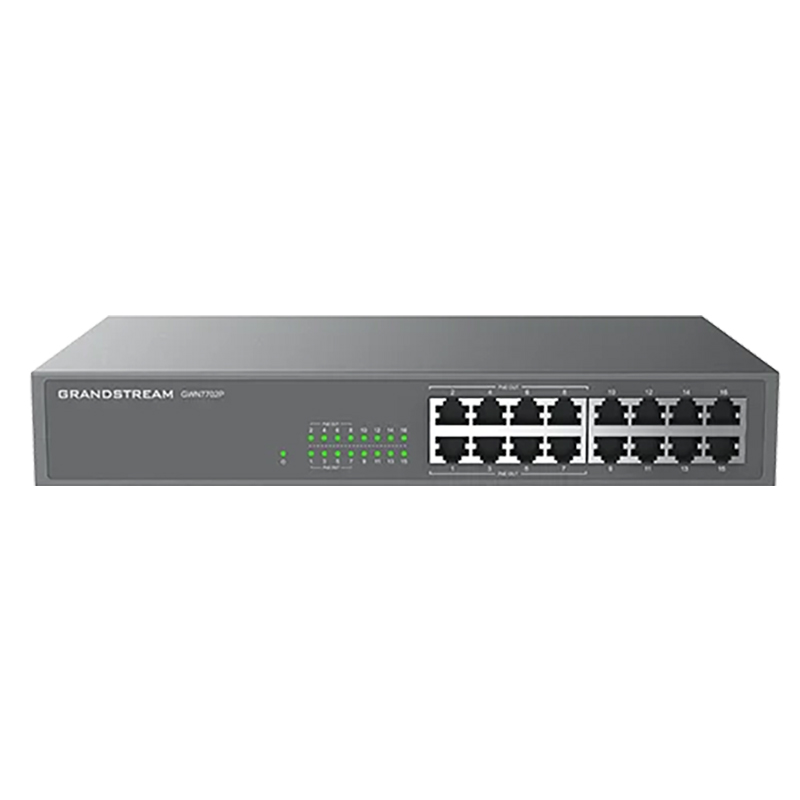

Grandstream GWN 16 Port Gigabit + 8 Port PoE 32Gbps Unmanaged Switch (GWN7702P)

PoE Ports

8

Enclosure

Metal

Mounting

Desktop/Rack-Mount

Network Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p

PoE Standards

IEEE 802.3af, IEEE 802.3at

Port Feature

16/24× 10/100/1000Mbps RJ45 Ports

AUTO Negotiation

AUTO MDI/MDIX

Network Media

1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex

PoE Configuration

• 1~8 Ports 802.3 af/at compliant

• Up to 30 W on Each Port, Total

138W Power Budget;

• Overload to cut off the lowest priority port.

• Priority: Port 1 to Port 8

LED Indicators

Per port: Link/Activity - Green

Per port: PoE output - Yellow

Per device: Power Green

Mac Address Table

8K

Switching Capacity

32Gbps

Jumbo Frame

10KB

Advanced Features

Mac Address Auto-Learning And Auto-Aging

IEEE 802.3x Flow Control

Half duplex backpressure

Power Adapter

Internal 100-240V AC,

50/60Hz,150W

Max Power Consumption by Base System

10.1W@220V/50Hz

(excluding PoE output power)

Environmental

Operating Temperature: 0 to 40 °C (32 to 104 °F)

Storage Temperature: -20 to 60 °C (-4 to 140 °F)

Operating Humidity: 10% to 90% Non-condensing

Storage Humidity: 10% to 90% Non-condensing

Dimensions (L x W x H)

Unit: 280 x 180 x 44mm;

Package: 366 x 211 x 53mm

Weight

Unit: 1.58KG

Entire Package: 2.18KG

Package

1x Switch, 1x 1.2m AC Cable, Rack-mounting Standard Brackets, 4x Rubber Feet, 1x QIG

Compliance

FCC, CE, RCM, IC, UKCA
