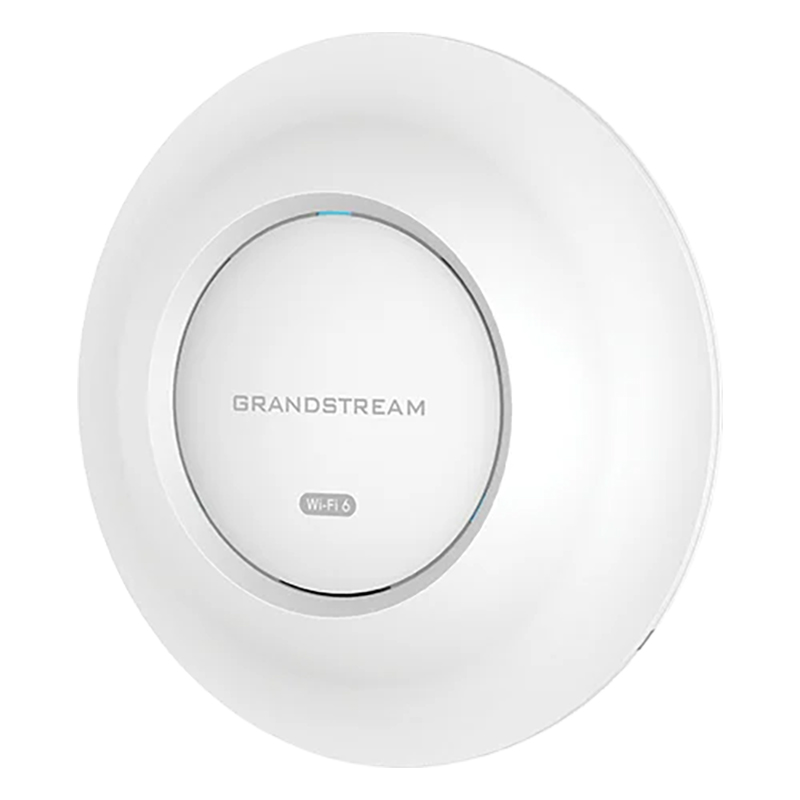

Grandstream GWN 2x2:2 & 4x4:4 Wi-Fi 6 Indoor Access Point (GWN7662)

Antennas

6 single frequency internal antennas

2.4GHz 3.65dBi

5GHz 5.26dBi

Wi-Fi Data Rates

5G:

IEEE802.11ax:8.6Mbps to 4804Mbps

IEEE 802.11ac: 6.5 Mbps to 3464 Mbps

IEEE 802.11n: 6.5Mbps to 600Mbps

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G:

IEEE 802.11ax:8.6Mbps to 573.5Mbps

IEEE 802.11n: 6.5Mbps to 300Mbps

IEEE 802.11b: 1, 2, 5.5, 11 Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental   conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands

2.4GHz Radio: 2412 - 2484 MHz(WIFI)

5GHz Radio: 5180 - 5825 MHz

*Not all frequency bands can be used in all regions

Channel Bandwidth

2.4G: 20 and 40 MHz

5G: 20, 40 , 80 and 160MHz

Wi-Fi and System Security

WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security   certificate and random default password per device

MIMO

2×2:2 2.4GHz (MU-MIMO)

4×4:4 5GHz (MU-MIMO)

Coverage Range

Up to 175 meters

*Coverage range can vary based on environment

Maximum TX Power

2.4G: 25dBm

5G: 27dBm

*Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity

2.4G

802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;

802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7

802.11ax 20MHz: -60dBm @ MCS11; 802.11ax 40MHz: -58dBm @MCS11

5G

802.11a: -92dBm @6Mbps, -74dBm @54Mbps;

802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7

802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9

802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @ MCS11

SSIDs

32 SSIDs total, 16 per radio (2.4GHz & 5GHz)

Concurrent Clients

256

Network Interfaces

1x autosensing 10/100/1000 Base-T Ethernet Port

1x autosensing 10/100/1000/2500 Base-T Ethernet Port

Auxiliary Ports

1x Reset Pinhole, 1x Kensington lock

Mounting

Indoor wall mount or ceiling mount, kits included

LEDs

3 tri-color LEDs for device tracking and status indication

Network Protocols

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

802.11e/WMM, VLAN, TOS

Network Management

Embedded controller can manage up to 50 local GWN APs

GWN.Cloud offers a free cloud management platform for unlimited GWN APs

GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency

Supports 802.3az PoE 802.3af/ 802.3at;

Maximum Power Consumption: 16W

Environmental

Operation: -10°C to 45°C

Storage: -30°C to 60°C

Humidity: 5% to 95% Non-condensing

Physical

Unit Dimension: 205.3mm(L)x205.3mm(W)x45.9mm(H); Unit Weight: 540g

Entire Package Dimension: 258mm(L)x247mm(W)x86mm(H); Entire Package Weight: 910g

Package Content

GWN7662 indoor Wi-Fi 6 Wireless AP, Mounting Kits, Quick Installation Guide

Compliance

FCC, CE, RCM, IC, UKCA
