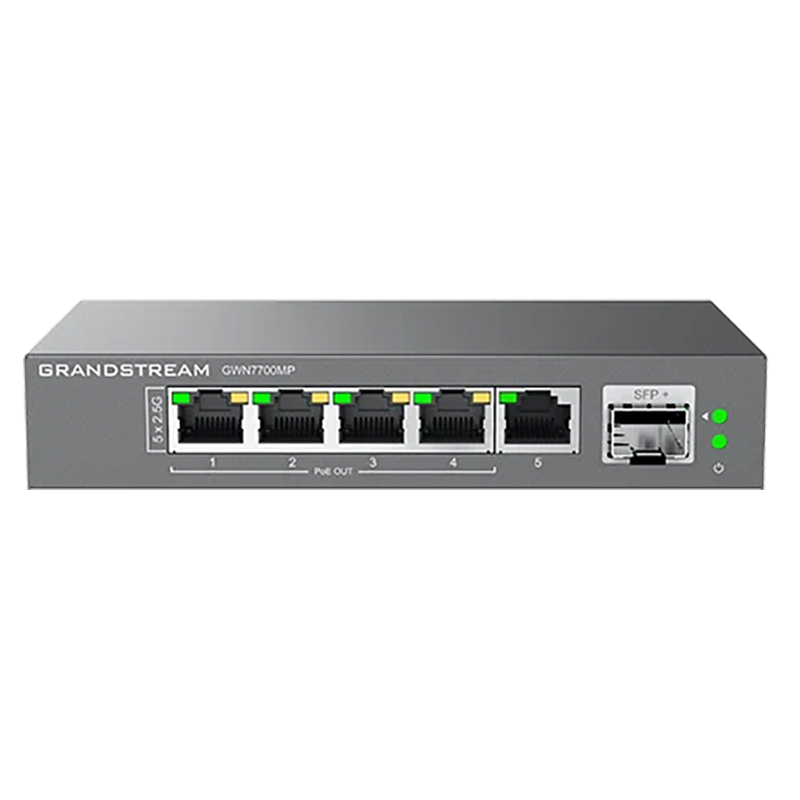

Grandstream GWN 5 Port 2.5 Gigabit + 4 Port PoE Unmanaged Switch (GWN7700MP)

PoE Ports

4

Enclosure

Metal

Mounting

Desktop/ Wall-Mount

Standards and Protocols

IEEE   802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz(2.5GBASE-T), IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3af, IEEE 802.3at

Port Features

5× 100/1000/2500Mbps RJ45 Ports

1× SFP+ Fiber Port

AUTO Negotiation

AUTO MDI/MDIX

Network Media

2.5GBase-T / 1000Base-T / 100Base-TX / 10 Base-Te, Half/Full-Duplex

PoE Ports

1~4 Ports 802.3 af/at compliant ;

Up to 30 W on Each Port, Total

57W Power Budget;

Overload to cut off the lowest

priority port;

Priority: Port 4 to Port 1;

LED Indicators

Per port: Link/Activity Green

Per device: Power Green

GWN7700MP Port1~4: PoE output - Yellow

Mac Address Table

4K

Switching Capacity

45Gbps

Jumbo Frame

9KB

Advanced Features

Mac Address Auto-Learning And Auto-Aging

IEEE 802.3x Flow Control

IEEE 802.3az (Energy Efficient Ethernet)

802.1p/DSCP QoS

IGMP:

• IGMP Fast-Leave

• IGMP Snoop

• Route Port Autolearn

• Query Refresh Member Port

Power Adapter

External 53.5V/1.22A

Max Power Consumption by Base System

7.2W

Environmental

Operating Temperature: 0 to 40 °C (32 to 104 °F)

Storage Temperature: -20 to 60 °C (-4 to 140 °F)

Operating Humidity: 10% to 90% Non-condensing

Storage Humidity: 10% to 90% Non-condensing

Dimensions (L x W x H)

Unit: 145 x 80 x 27mm, Package:

230 x 190 x 51mm

Weight

Unit: 0.31KG

Entire Package:0.80 KG

Package

1x Switch, 1x Power Adapter,1x QIG

Compliance

FCC, CE, RCM, IC
