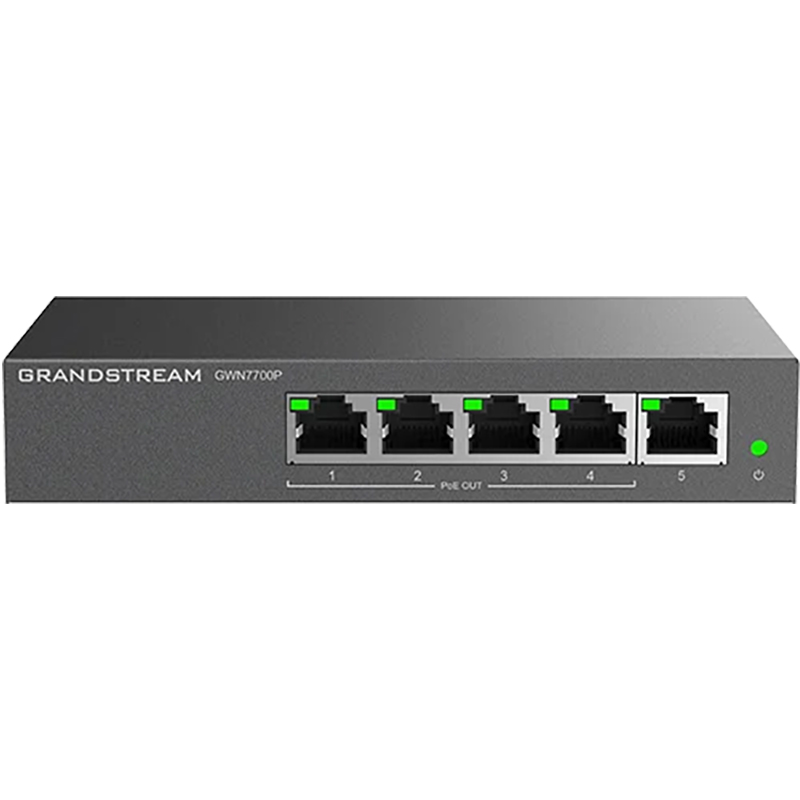

Grandstream GWN 5 Port Gigabit + 4 Port PoE Unmanaged Network Switches - Metal Enclosure (GWN7700P)

PoE Ports

4

Enclosure

Metal

Mounting

Desktop/Wall-Mount

Network Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p

PoE Standards

IEEE 802.3af, IEEE 802.3at

Port Feature

5× 10/100/1000Mbps RJ45 Ports

AUTO Negotiation

AUTO MDI/MDIX

Network Media

1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex

PoE Configuration

• 1~4 Ports 802.3 af/at compliant

• Up to 30 W on Each Port, Total 60W Power

Budget;

• Overload to cut off the lowest-priority port.

• Priority:  Port 4 to Port 1

LED Indicators

Per port: Link/Activity Green

Per device: Power Green

Mac Address Table

2K

Switching Capacity

10Gbps

Jumbo Frame

9KB

Advanced Features

Mac Address Auto-Learning And Auto-Aging

IEEE 802.3x Flow Control

802.1p/DSCP QoS

IGMP:

• IGMP Fast-Leave

• IGMP Snoop

• Route Port Autolearn

• Query Refresh Member Port

Power Adapter

External 48-53.5VDC/1.22A

Max Power Consumption by Base System

2W (excluding PoE output power)

Environmental

Operating Temperature: 0  to 40 °C (32  to 104 °F)

Storage Temperature: -20 to 60 °C (-4 to 140 °F)

Operating Humidity: 10% to 90% Non-condensing

Storage Humidity: 10% to 90% Non-condensing

Dimensions (L x W x H)

Unit: 145 x 80 x 27mm

Package: 230 x 190 x 51mm

Weight

Unit Weight: 0.26KG

Entire Package: 0.75KG

Package

1x Switch, 1x Power Adapter,1x QIG

Compliance

FCC, CE, RCM, IC, UKCA
