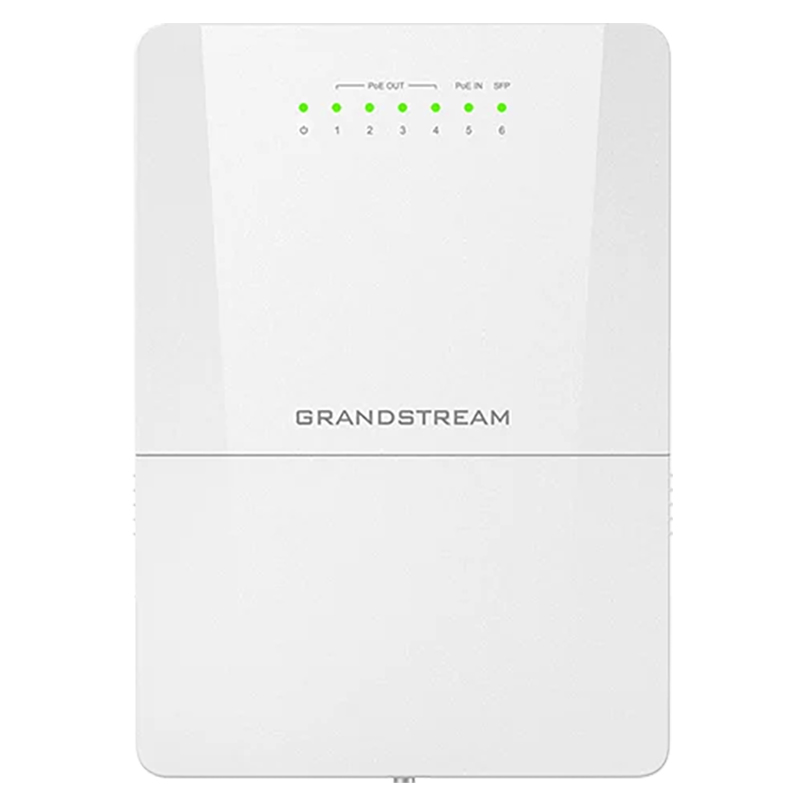

Grandstream GWN 6 Port (5GE +1SFP) Outdoor L2 Lite Managed Switch
The GWN7710R is a 6-Port (5GE+1SFP) outdoor lite managed PoE switch that features an IP66-rated waterproof and dustproof casing to protect against harsh weather conditions, including rain, snow, and high temperatures.
5 Gigabit RJ45 ports (4 PoE output ports, 1 PoE input port) IEEE 802.3 at/af or 24V/48V DC passive PoE out,Up to 60W on Port 1 and up to 30W on Port 2-4; Supports PoE Watchdog function SFP Fiber Port for long-distance transmission DHCP Snooping - Only allow DHCP packets from trusted ports to keep the enterprise DHCP environment safe IP66 dustproof and waterproof rating; Wide operating temperature range: -40°C and 60°C Supports convenient and intelligent local Web configuration, GWN Manager, and GDMS Networking STP/RSTP to guarantee fast convergence, ensure network stability, and provide link load balance and redundancy Built-in QoS allows for prioritization of network traffic
SPECIFICATIONS:
Network Protocol | IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at | Communication Ports | • 5x Gigabit Ethernet Ports • 1x 1G/2.5G SFP Port | Power Supply | • 12V-57V DC input • Standard PoE /PoE+/PoE ++ | PoE In and PoE Out Ports | • PoE In: Port 5; • PoE Out: Port 1 - Port 4 | PoE Output | • Standard PoE output Mode (Default) • Passive 24VDC or 48VDC output Mode (Configured via UI) | PoE Output Power Budget | • Powered by Standard PoE In (802.3af/at/bt): 802.3af input: 3W output budget 802.3at input: 15W output budget 802.3bt input: 60W output budget • Powered by DC In (12V~57V): DC In>12V: 60W output budge DC In>24V: 72W output budget DC In>36V: 100W output budget Note: When using the DC input, the budget of PoE output depends on the external DC input power. | Max Output Power Per Port | • Standard PoE output Mode: Port 1 - Port 4 up to 30W on each PoE port; • Passive PoE output Mode: Port 1: 4-pair 48V DC up to 60W or 4-pair 24V DC up to 30W Port 2 - Port 4: 2-pair 48V DC up to 30W or 2-pair 24V DC up to 15 * Note: •4-Pair: Powered on pins: 1,2,4,5(+),3,6,7,8(-) •2-Pair: Powered on pins: 4,5(+),7,8(-) | Auxillary Ports | 1x Reset Pinhole | Forwarding Mode | Store-and-forward | Total non-blocking throughput | 6Gbps | Switching Capability | 15Gbps | Jumbo Frame | 2K/3K/4K/5K/6K/7K/8K/9K/12K/15K | Forwarding Rate | 11.16Mpps | Packet Buffer | 4Mb | MAC | 8K MAC address capacity | VLAN | • Supports up to 32 VLANs (Out of 4K VLAN IDs) • Port-based VLAN, 802.1Q VLAN • Voice VLAN | LAG | 3 | Multicast | IGMP snooping, Report Message Suppression | QoS | • Auto prioritization of the incoming port of the packet • Supports port priority, 802.1P priority, and DSCP priority • Bandwidth control • Rate limit | DHCP | DHCP client | Maintenance | Backup and restore, System reboot, Factory reset, Firmware upgrade, Support MAC address search, SNMP, LLDP Monitoring including port statistics, Port mirroring, Cable test, and Ping | Security | • Storm control • DHCP Snooping • Spanning Tree • Loop prevention • PoE Watchdog | Mounting | Pole/Wall-Mount/DIN-Rail | LED Indicators | • Per device System on : Green • Per Ethernet port Link/Activity: Green; • Per Passive PoE out port 48VDC: Orange • Per Passive PoE out port 24VDC: Blue • Support LED indicator switch | ESD | ± 16kV Air, ± 16kV Contact | Environmental | • Operating Temperature: -40 to 60 °C (-40 to 140 °F) • Storage Temperature: -40 to 70 °C (-40 to 158 °F) • Operating Humidity: Support IP66 waterproof • Storage Humidity: 10% to 95% Non-condensing | Dimensions (LxWxH) | Unit: 210 x 150 x 52mm Package: 466 x 286 x 258mm Weight Unit: 0.75KG Entire Package :1.35 KG | Package Content | 1x Switch, Rack-mounting Standard Brackets , 1x QIG,4x assembled screw, 4x expansion screw ,2 x Metal straps,1x Phoenix connector | Compliance | FCC, CE, RCM, IC |
|
