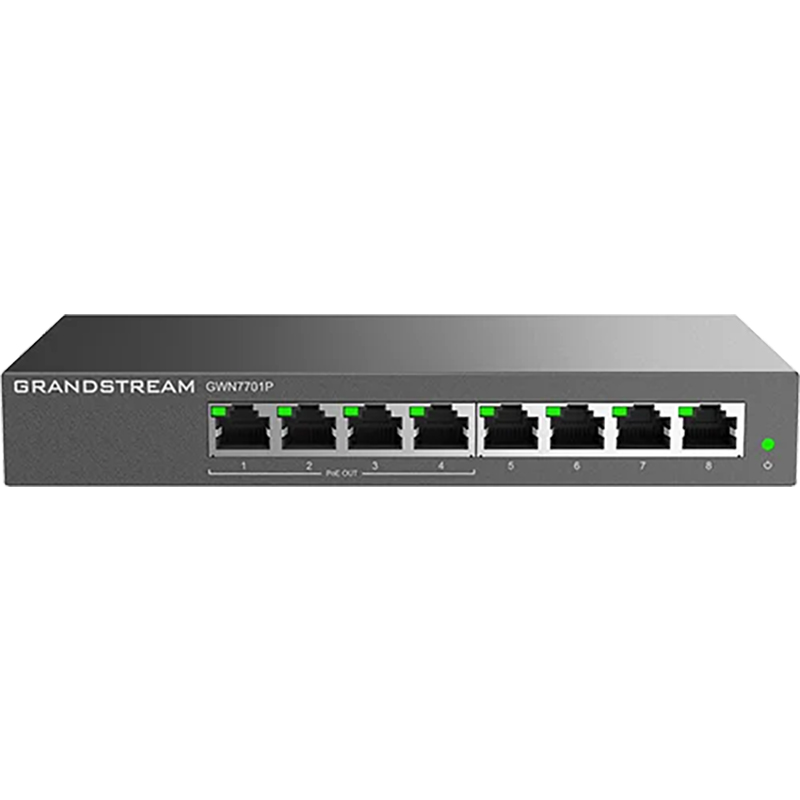

Grandstream GWN 8 Port Gigabit + 4 Port PoE Unmanaged Network Switches - Metal Enclosure (GWN7701P)

PoE Ports

4

Enclosure

Metal

Mounting

Desktop/ Wall-Mount

Network Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

PoE Standards

IEEE 802.3af, IEEE 802.3at

Port Feature

8× 10/100/1000Mbps RJ45 Ports

AUTO Negotiation

AUTO MDI/MDIX

Network Media

1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex

PoE Configuration

• 1~4 Ports 802.3 af/at compliant

• Up to 30 W on Each Port, Total

60W Power Budget;

• Overload to cut off the lowest

priority port.

• Priority: Port 4 to Port 1

LED Indicators

Per port: Link/Activity Green

Per device: Power Green

Mac Address Table

8K

Switching Capacity

16Gbps

Jumbo Frame

9KB

Advanced Features

Mac Address Auto-Learning And Auto-Aging

IEEE 802.3x Flow Control

802.1p/DSCP QoS

Unlink clear FDB Feature

IGMP:

• IGMP Fast-Leave

• IGMP Snoop

• Route Port Autolearn

• Query Refresh Member Port

Power Adapter

External 48-53.5VDC/1.22A

Max Power Consumption by Base System

3W

(excluding PoE output power)

Environmental

Operating Temperature: 0  to 40 °C (32  to 104 °F)

Storage Temperature: -20 to 60 °C (-4 to 140 °F)

Operating Humidity: 10% to 90% Non-condensing

Storage Humidity: 10% to 90% Non-condensing

Dimensions (L x W x H)

Unit:190 x 100 x 28mm

Package: 230 x 210 x 51mm

Weight

Unit: 0.44KG

Entire Package: 0.92KG

Package

1x Switch,

1x Power Adapter,

1x QIG

Compliance

FCC, CE, RCM, IC, UKCA
