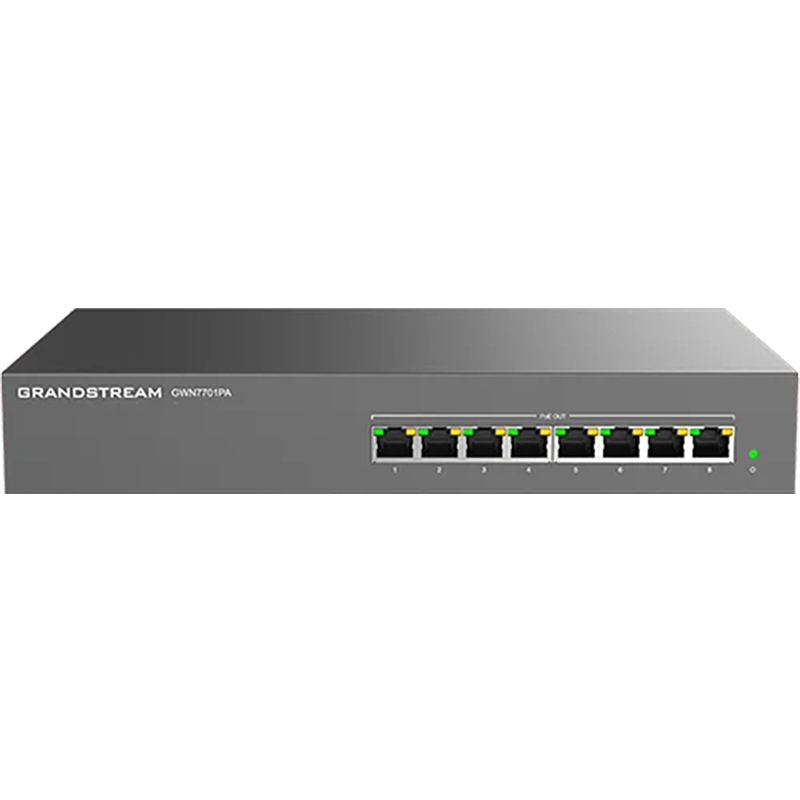

Grandstream GWN 8 Port Gigabit + 8 Port PoE Unmanaged Network Switches - Metal Enclosure (GWN7701PA)

PoE Ports

8

Enclosure

Metal

Mounting

Desktop/ Wall-Mount

Network Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

PoE Standards

IEEE 802.3af, IEEE 802.3at

Port Feature

8× 10/100/1000Mbps RJ45 Ports

AUTO Negotiation

AUTO MDI/MDIX

Network Media

1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex

PoE Configuration

• 1~8 Ports 802.3 af/at compliant

• Up to 30 W on Each Port, Total

145W Power Budget;

• Overload to cut off the lowest

priority port.

• Priority:  Port 8 to Port 1

LED Indicators

Per port: Link/Activity - Green

Per port: PoE output - Yellow

Per device: Power Green

Mac Address Table

8K

Switching Capacity

16Gbps

Jumbo Frame

9KB

Advanced Features

Mac Address Auto-Learning And Auto-Aging

IEEE 802.3x Flow Control

802.1p/DSCP QoS

Unlink clear FDB Feature

IGMP:

• IGMP Fast-Leave

• IGMP Snoop

• Route Port Autolearn

• Query Refresh Member Port

Power Adapter

Internal 100-240V AC

AC, 50/60Hz,150W

Max Power Consumption by Base System

6.7W @220V/50Hz

(excluding PoE output power)

Environmental

Operating Temperature: 0  to 40 °C (32  to 104 °F)

Storage Temperature: -20 to 60 °C (-4 to 140 °F)

Operating Humidity: 10% to 90% Non-condensing

Storage Humidity: 10% to 90% Non-condensing

Dimensions (L x W x H)

Unit: 280 x 180 x 44mm

Package: 366 x 211 x 53mm

Weight

Unit: 1.5KG

Entire Package: 2.1KG

Package

1x Switch,

1x 1.2m AC Cable,

Rack-mounting

Standard Brackets,

4x Rubber Feet,

1x QIG

Compliance

FCC, CE, RCM, IC, UKCA
