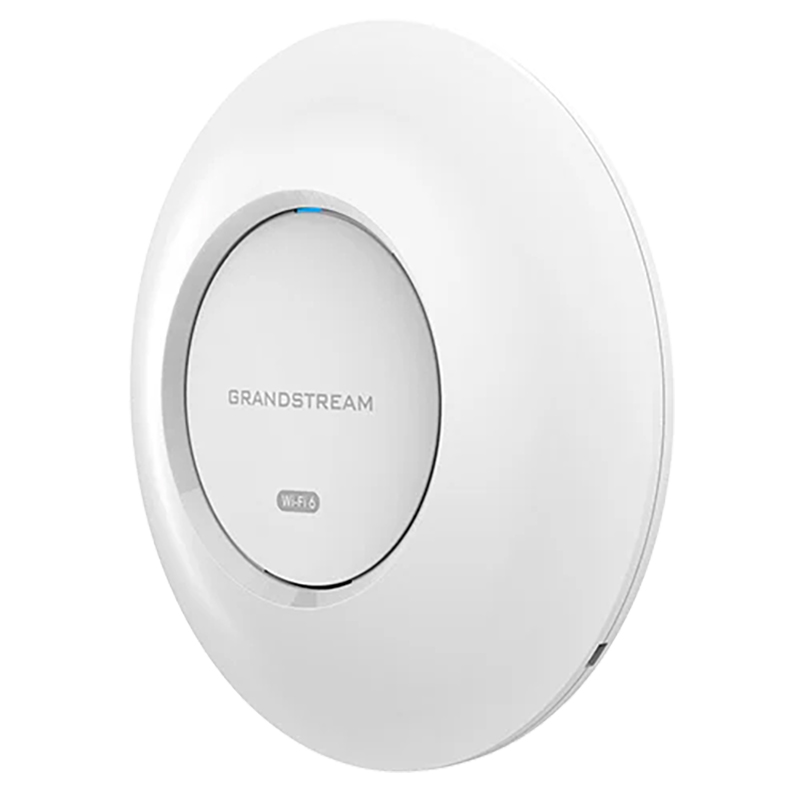

Grandstream GWN Enterprise-Grade 802.11ax AX3000 Wi-Fi 6 Wireless Access Point
The GWN7660E is an enterprise-grade 802.11ax Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers 2x2:2 MU-MIMO technology on the 2.4G band and 3x3:2 MU-MIMO on the 5G band
3Gbps aggregate wireless throughput and 1 Gigabit wireline port Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology Up to 175-meter coverage range Supports 256 concurrent Wi-Fi client devices Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device Self-power adaptation upon auto-detection of PoE or PoE+ Embedded controller can manage up to 50 local GWN series APs; GDMS Networking offers unlimited AP management; GWN Manager offers premise-based software controller
SPECIFICATIONS:
Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax | Antennas | 5 individual internal antennas 2.4GHz x 2, gain 4.0dBi 5 GHz x 3, gain 5.0dBi | Wi-Fi Data Rates | 5G: IEEE 802.11ax: 7.3 Mbps to 2402 Mbps; IEEE 802.11ac: 6.5 Mbps to 867 Mbps; IEEE 802.11n: 6.5Mbps to 300Mbps; IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps; IEEE 802.11n: 6.5Mbps to 300Mbps; IEEE 802.11b: 1, 2, 5.5, 11 Mbps; IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network | Frequency Bands | 2.4GHz radio: 2400-2483.5MHz 5GHz radio: 5150-5850MHz | Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20,40,80 and 160MHz | Wi-Fi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device | MIMO | 2x2:2 2.4GHz 3x3:2 5GHz | Coverage Range | Up to 175 meters *coverage range can vary based on environment | Maximum TX Power | 5G: 24dBm 2.4G: 24dBm *Maximum power varies by country, frequency band and MCS rate | Receiver Sensitivity | 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7; 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11; 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 ; 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @ MCS11;802.11ax 160MHz: -52dBm@ MCS11 | SSIDs | 32 SSIDs total, 16 per radio (2.4GHz and 5 GHz) | Concurrent Clients | 256 | Network Interfaces | 1x autosensing 10/100/1000 Base-T Ethernet Port | Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock | Mounting | Indoor wall mount or ceiling mount, kits included | LEDs | 3 tri-color LEDs for device tracking and status indication | Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM | QoS | 802.11e/WMM, VLAN, TOS | Network Management | Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs | Power and Green Energy Efficiency | PoE 802.3af/ 802.3at; Maximum Power Consumption: 12.95W | Environmental | Operation: 0°C to 50°C Storage: -10°C to 60°C Humidity: 10% to 90% non-condensing | Physical | Unit Dimension: 180.4mmx180.4mmx40.8mm(TBD); Unit Weight: 385g Entire Package Dimension: 228.5x220x79mm(TBD); Entire Package Weight: 630g | Package Content | GWN7660E Wireless AP, Mounting Kits, Quick Start Guide | Compliance | FCC, CE, RCM, IC |
|
