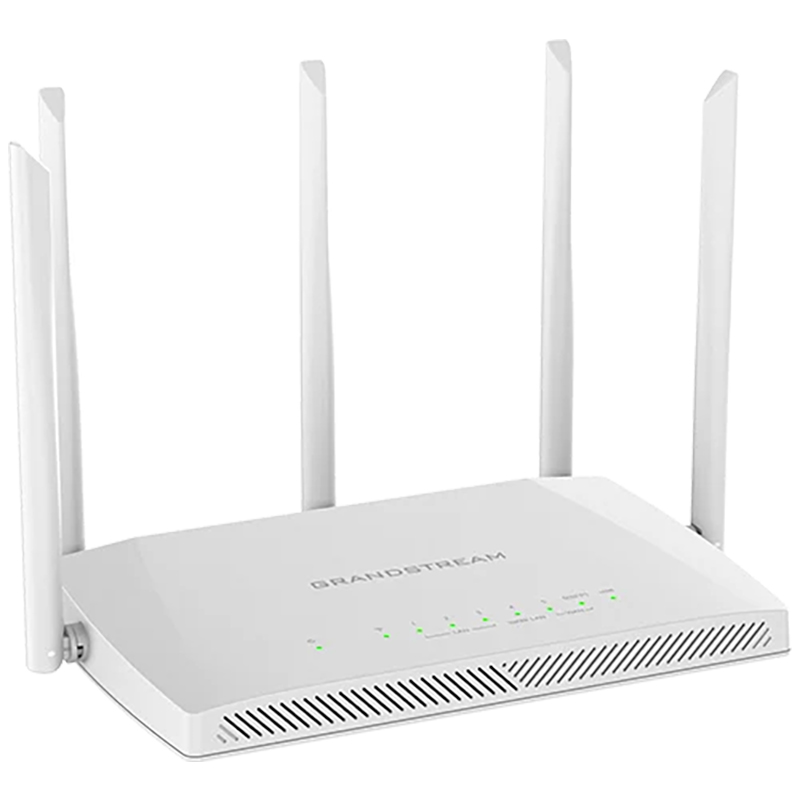

Grandstream GWN7062M High-Performance AX3000 2.4GHz Wi-Fi 6 Router (GR-GWN7062M)

Interfaces

Network Ports

1x 2.5G Combo SFP/RJ45 Ethernet WAN

1x autosensing 10/100/1000Mbps Ethernet WAN/LAN, RJ-45

1x 2.5G Ethernet LAN, RJ-45

2x 1G Ethernet LAN, RJ-45

1x USB 2.0 Port

LEDs

1 tri-color LED and 8x single-color LEDs

Auxiliary Ports

1x Reset Pinhole, 1x SYNC, 1x POWER

Power

Maximum Power Consumption

18W

Physical

Dimension

Unit: 205mm(L) x 130mm(W) x 35.5mm(H)

Entire Package: 356mm(L) x 309.5mm(W) x 62mm(H)

Weight

Unit: 400g

Entire Package: 855g

Mounting

Desktop or indoor wall mount

Package Content

GWN7062M router, Power Adapter, Ethernet Cable, Quick Installation Guide

Environmental

Temperature

Operation: 0°C to 45°C

Storage: -30°C to 60°C

Humidity

10% to 90% Non-condensing

Compliance

FCC, CE, RCM, IC

Wi-Fi Standards

IEEE 802.11 a/b/g/n/ac/ax

SSIDs

• 4 host SSIDs+1 guest SSID

• Restrict access and improve wireless network security by SSID hiding

• Dynamically assign radio power, channel

Concurrent Wireless Clients

Up to 256 clients

Working Mode

• Router Mode

• Wireless Bridge Mode

• Wireless Relay Mode

MESH

Supports Mesh networking with up to 3 GWN7062M/GWN7062E/GWN7062ET/GWN7660EM devices

WAN

• Internet connection Type: Static IP/DHCP/PPPoE/PPTP/L2TP

• Support Dual WAN and Failover/Load Balance policy

LAN

• DHCP Server

• Manually bind IP address

• Supports VLAN and assigning VLAN to port

ISP

• Supports IGMP

• Supports IPTV/VoIP/Triple Play

• Supports customised settings for WAN-side VLAN

VPN

Supports 8 VPN tunnel total:

• L2TP Client

• PPTP Client

• IPSec Site-to-Site & Client-to-Site

• OpenVPN® Server

• WireGuard® Site-to-Site & Peer-to-Site

Encryption

Open system

WPA/WPA2

WPA2

WPA2/WPA3

WPA3

WPA3-192

Anti-hack security boot and critical data/control lockdown via digital signatures

Unique security certificate and random default password per device

Parental Control

• Safe Search

• Customized Internet Schedule

• UP to 32 Parental Control Clients

• Website Filtering

• APP Filtering

• URL Blocklist

QoS

• Support 8 queues with multiple traffic priority and bandwidth

• APP QoS

• QoS rules

Traffic Statistics

Application monitoring and traffic statistics with DPI

Analysis Period : Daily, Weekly, Monthly

Firewall

DoS attack defense

Blocklist

NAT

DDNS

Port Forwarding

DMZ

UPnP

Content Control

• URL filtering

• URL Classification filtering

• APP Filtering

Access Control

Supports setting WAN side access status and allowing access to IP addresses

Captive Portal

Support social login/vouchers/password authentication

USB Application

• Supports USB LTE dongle device as USB WAN

• Supports USB printer and newtwork printing

• Supports USB storage device and file sharing

Maintenance

• Configuration Backup and Restore

• Diagnosis tools

• Feedback System

• System Log

• Intelligence Detection

• Auto Firmware Update

Management Platform

• Embedded controller can manage itself and Mesh Node

• GDMS (Networking) offers a free cloud management platform for unlimited GWN Routers

• GWN Manager offers premise-based software controller

• Grandstream Home App offers unified mobile management platform for easy control

• TR-069
