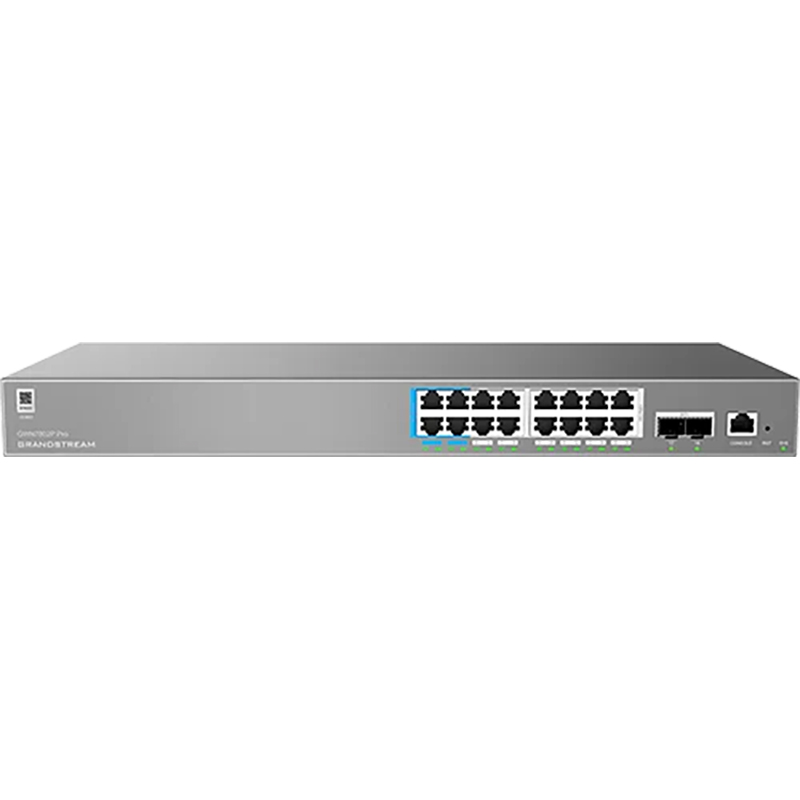

Grandstream GWN7802P Pro 16 Port Gigabit Ethernet + 2 SFP+ Enterprise Layer 2++ Managed Network Switch (GWN7802PPRO)

Gigabit Ethernet Ports

16

SFP/SFP+ Ports

2 × SFP+

Maximum Number of Supported Modules

SM-10G: 2

MM-10G: 2

RJ45-10G: 2

MGMT Ports

1 × Console port

Others

1 × Reset Pinhole

LEDS

System LEDs

1× tri-color LED for device tracking and status indication

Power Supply LEDs

/

Data Transferring LEDs

18 × green-color LEDs

PoE Supply LEDs

16 × yellow-color LEDs

SYSTEM

Flash

32 MB Nor Flash

RAM

256 MB RAM

CPU

Single-core, MIPS interAptiveTM 1GHz

Forwarding Mode

Store-and-forward

Total non-blocking throughput

36 Gbps

Switching Capability

72 Gbps

Forwarding Rate

53.568 Mpps

Packet Buffer

8.4 Mb

Network Latency

<4 µs

POWER SUPPLY

Power Supply

100–240 V AC, 50/60 Hz

Power Redundancy Scheme

/

External Redundant Power Supply (Pending)

/

Max Power Consumption

21.8 W

294.4 W (PoE 250 W)

Max Output Power

294.4 W

POE

PoE Standards

IEEE 802.3af/at/bt

PoE Ports

16

Max Output Power per PoE Port

60 W

Max Total PoE Output Power

250 W

PHYSICAL

Unit Dimension

440 mm × 200 mm × 44 mm (17.32″ × 7.87″ × 1.73″) (L × W × H)

Unit Weight

2.9 kg (6.39 lb)

Mounting

Desktop, Wall-Mount, or Rack-Mount (rack-mounting kits included)

Package Content

1 × Switch

1 × 25 cm (9.84″) Ground Cable

4 × Rubber Footpads

1 × Power Cord Anti-Trip

8 × Flat Head Machine Screws (M3 × 6 mm)

1 × 1.2 m (3.94 ft) AC Cable of 10 A

1 × Simplified Quick Installation Guide

1 × Regulatory Paper

2 × Rack-Mounting Kits

ENVIRONMENTAL

Temperature

Operating: 0 °C to 45 °C (32 °F to 113 °F )

Storage: -10 °C to 60 °C (14 °F to 140 °F )

Humidity

Operating: 10%–90% (RH), non-condensing

Storage: 5%–95% (RH), non-condensing

MTBF

70,000 hours

Fan

2

CPU Monitoring

Monitoring CPU usage, over-CPU usage alarming

Memory Usage

Monitoring memory usage, over-memory usage alarming

Power Supply Monitoring

Monitoring of power supply model and status

Power supply failure alarming

Fan Monitoring

Automatic speed adjustment

Fan failure alarming

Temperature Monitoring

Temperature monitoring, over-temperature alarming

Surge Protection

±6 kV CM for power

±4 kV CM for network ports

ESD

±12 kV for contact discharge

COMPLIANCE

Certification

FCC, CE, RCM, IC
