Corporate > PC Parts > PC Accessories > Display Adapters > Simplecom HDMI 2.0 1x2 Splitter with 2 Port HDMI Duplicator (CM412)

Simplecom HDMI 2.0 1x2 Splitter with 2 Port HDMI Duplicator (CM412)

2‑port HDMI 1x2 splitter duplicates one source to two displays, supports 4K@60 Hz, HDR10, HDCP 2.2, down‑scales to 1080p, auto‑detects each screen’s resolution, HDMI 2.0b, 3D, LED status, USB‑powered.

or 4x fortnightly payments of $330 with ZipPay
Learn more

- +

Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Wish Add to Wishlist

Buy Now, Pay Later:

Click & Collect

Your store is set to:

Loading... Contact Store Question Mark Delays

Next Day Dispatch

Order within 14hrs and 2mins

Question Mark Delays

Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

Product Name:

Simplecom HDMI 2.0 1x2 Splitter with 2 Port HDMI Duplicator (CM412)
Model Number:

CM412
Brand:

Simplecom
Warranty Period:

1 Year

Description

Please note: The product only allows the display to be duplicated not extended it will display the same picture on both outputs

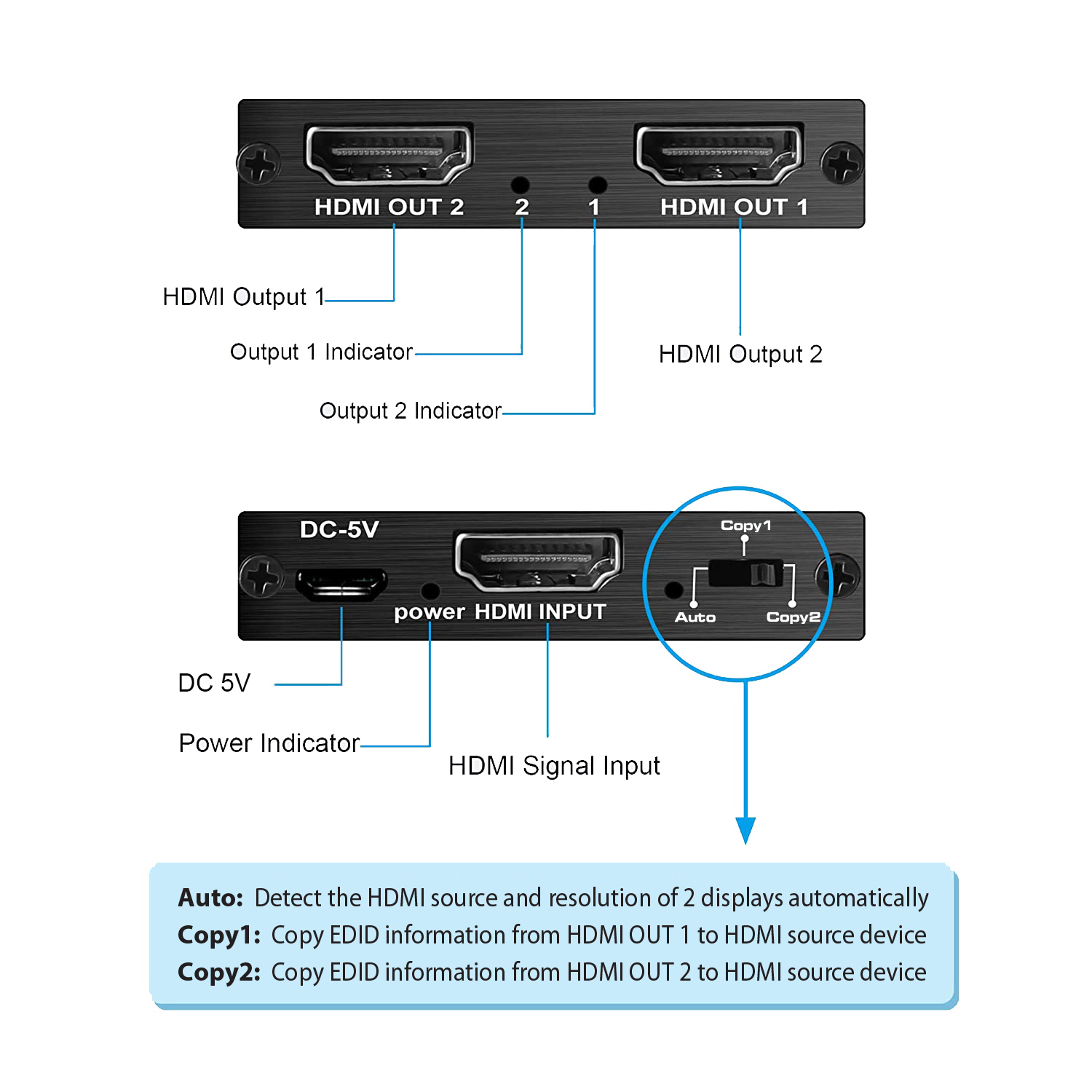

1762999764248654

SPECIFICATIONS:

HDMI Version	HDMI 2.0b
HDMI Resolution	480i/480p/576i/576p/720p/1080i/1080p/2160p@ 60Hz
Input Ports	1 x HDMI (Female type)
Output Ports	2 x HDMI (Female type)
Video Support	up to 4K@60hz YUV 4:4:4, 4K@60hz with HDR YUV 4:2:0
Audio Format Support	DTS-HD, Dolby Atmos, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3, DSD, DTS:X
HDR Format Support	HDR10
HDCP Version Support	HDCP 2.2
Max Bandwidth	18Gbps
Max Input cable distance	1080p<10m, 4K<5m (28AWG HDMI 19+1 cable)
Max Output cable distance	1080p<10m, 4K<5m (28AWG HDMI 19+1 cable)
Max Power Consumption	5W
Power requirement	USB DC 5V1A
Operating Temperature	(-15 to +55°C)
Dimension (L x W x H)	58x48x12mm
Package Contents	1 x HDMI 2.0 1x2 4K Splitter 1 x HDMI cable 1 x USB Power Cable 1 x User Manual
Notes	Downscaling to 1080p only, 720p or other resolutions are not supported YUV 4:2:2 down-scaling is not supported Refresh frame rate conversion (e.g., 60Hz to 24Hz) is not supported 4K@30Hz monitors will display in 1080p@60Hz when the source content is 4K@60Hz The Splitter can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally
